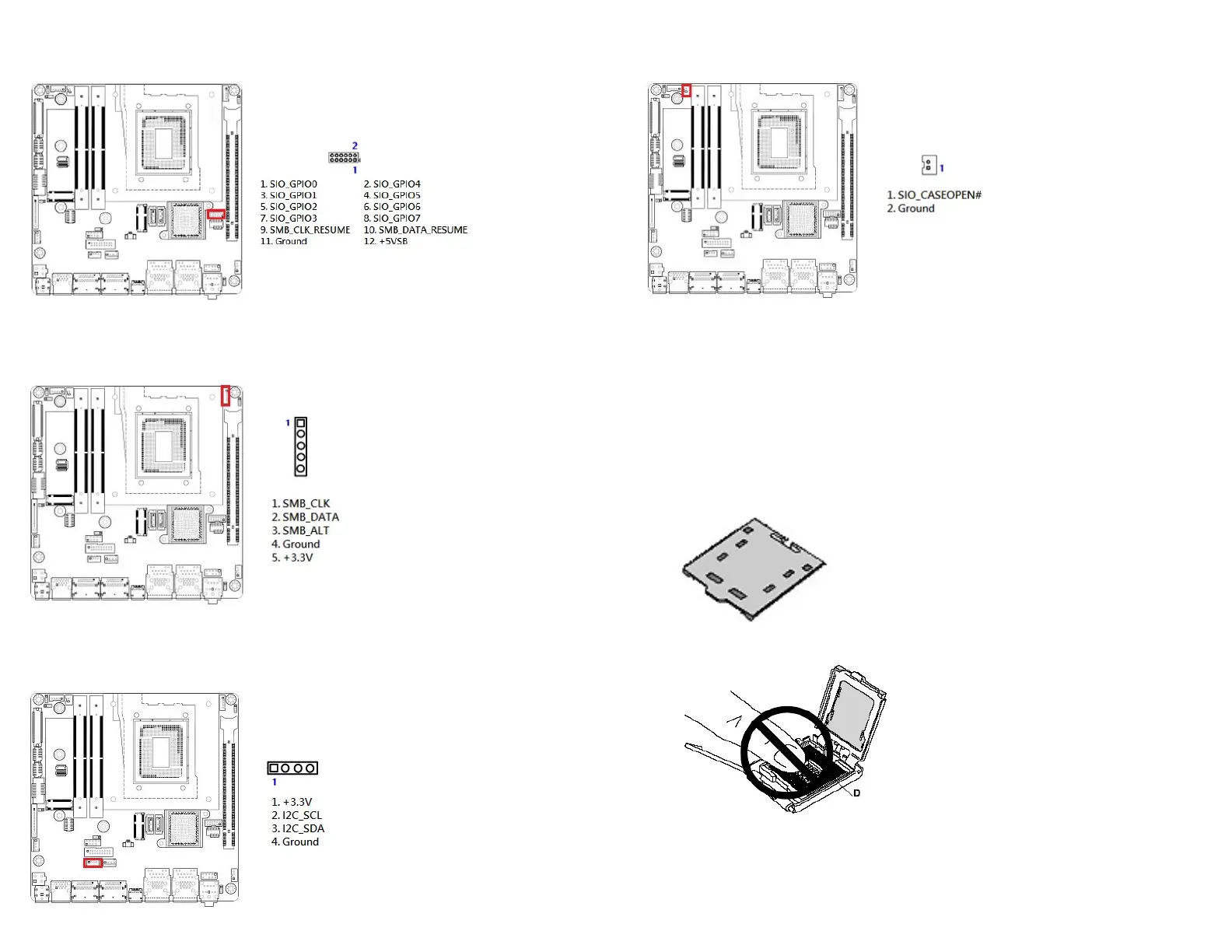

• Digital I/O (GPIO) Header: JDIO1
• SMBus Header: SMBUS1
• I2C connector: I2C1
• Chassis Intrusion Connector: JCASE1
• Save the Processor Socket Cover
After removing the processor cover during processor installation, please save the
processor socket cover.
In the event that the desktop board needs to be returned for service or any time the
processor is removed, the cover should be placed on the processor socket.
• Do not Touch Socket Contact
