n. Click on “Browse”, then point to the directory where the BCM provided driver “(OPTIONAL)
RST_19.2.0.1003”->”F6 (browse during Win installation)”->”VMD”->”f6vmdflpy-x64”, then click on
“OK”.
o. Click on the option “Intel RST VMD Controller 467F”, then click on “Next” to proceed.
p. The partition will be displayed, click on “Next” to continue Win10 installation process.
q. After the Win10 installation is completed, install the Intel RST driver.
8. The “JAMP1” audio header:
When the rear I/O audio port is connected with speakers, there is no audio output on “JAMP1” header,
unless the speaker connection on the rear I/O connection is disconnected.
9. The Intel “MEBx” (iAMT):
a. Enter BIOS menu.
b. Enter “MEBx” option (on far right of BIOS menu).
c. Click on “Intel ME Password. For the 1st time enter, type “admin” first, then Intel MEBx will ask for
a new password setup.
NOTE:
Intel® ME passwords must be between 8 and 32 characters long, have at least one upper case
character, one lower case character, one number, and a special character (for example: !, @, #, $, %, ^,
&, *).
d. The MEBx menu will be prompted. Please refer to the Intel document
“619907_ADL_S_TMDG_Rev1p0.pdf” for option details.
(https://www.intel.com/content/www/us/en/support/articles/000005897/boards-and-kits/desktop-
boards.html).

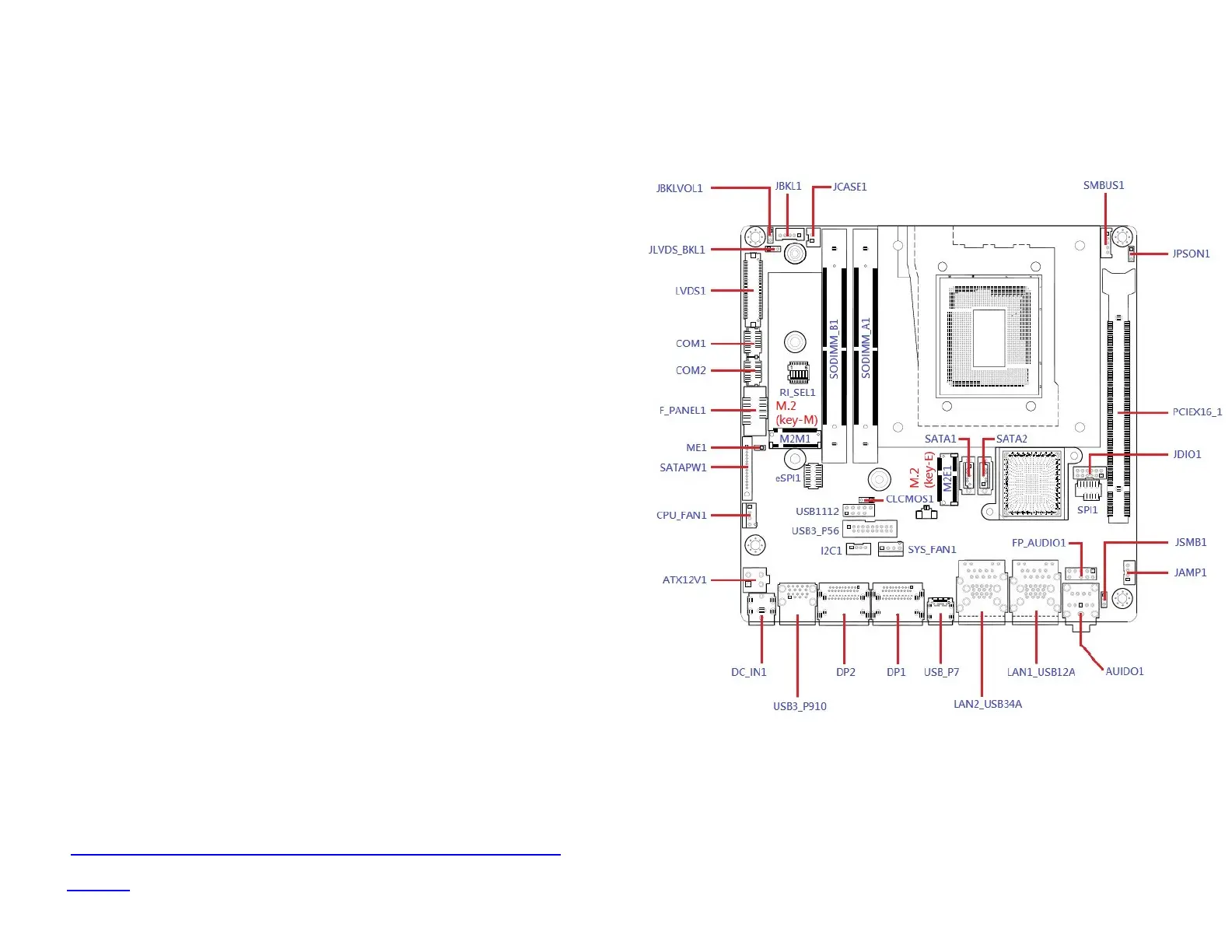

Motherboard Layout:
• Board Layout:
(Top Side)
To Next Page
