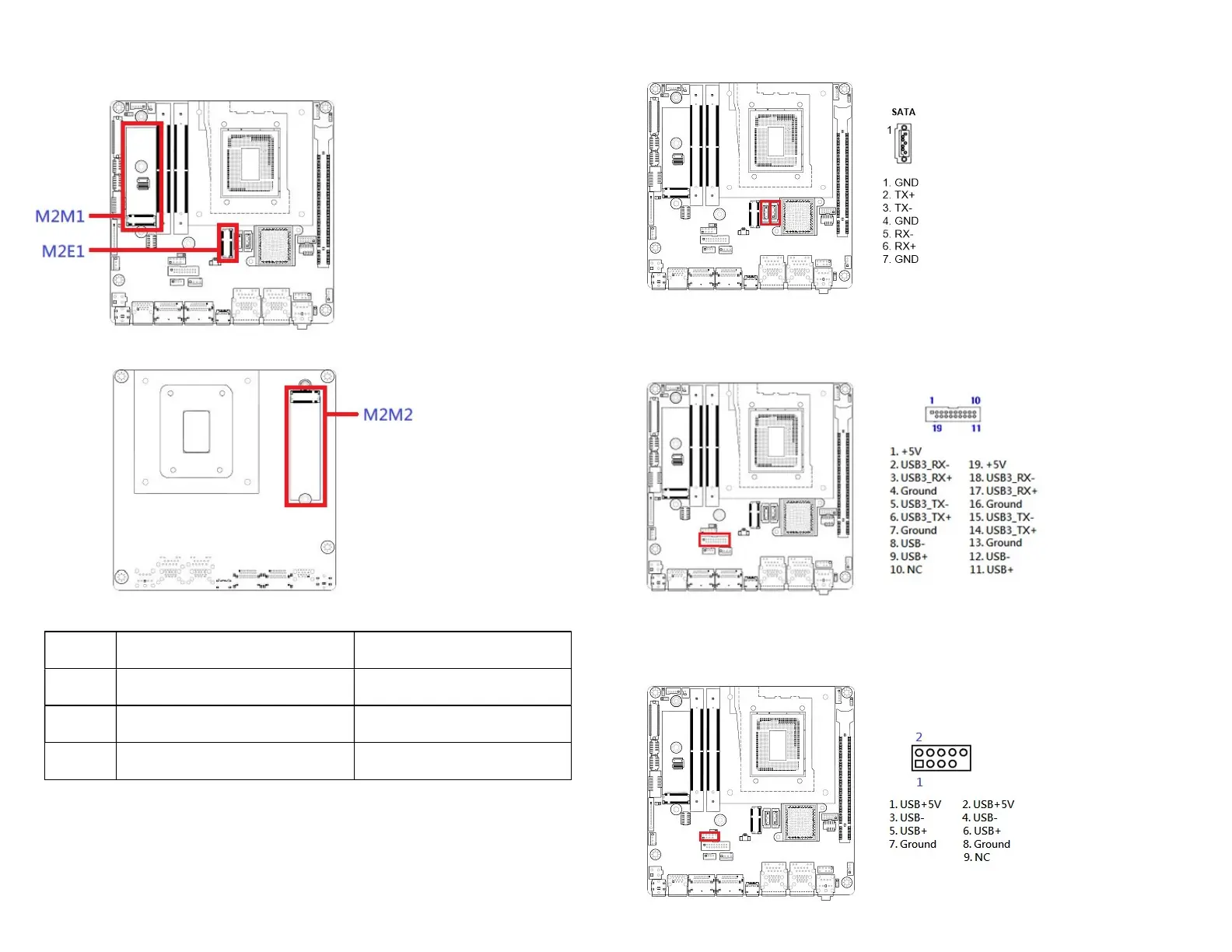

• M.2 Connectors: M2E1, M2E1, M2M2
Top Side:
Bottom Side:
Item Description Note
M2E1 M.2 Key-E Slot (2230) Supports PCIe x1, USB2.0,
C
NVi
M2M1 M.2 Key-M Slot (2242/ 2280)
(Top Side)
Supports PCIe x4, SATA
M2M2 M.2 Key-M Slot (2280)
(Bottom side)
Supports PCIe x4, SATA
• SATA 3.0 Ports: SATA1, SATA2
• Front USB 3.2 Headers: USB3_P56
• Front USB 2.0 Headers: USB1112
