BCP L-Shaped Corner - Product Assembly; Leg and Board Assembly

| 5
PRODUCT ASSEMBLY
1
2
9
6

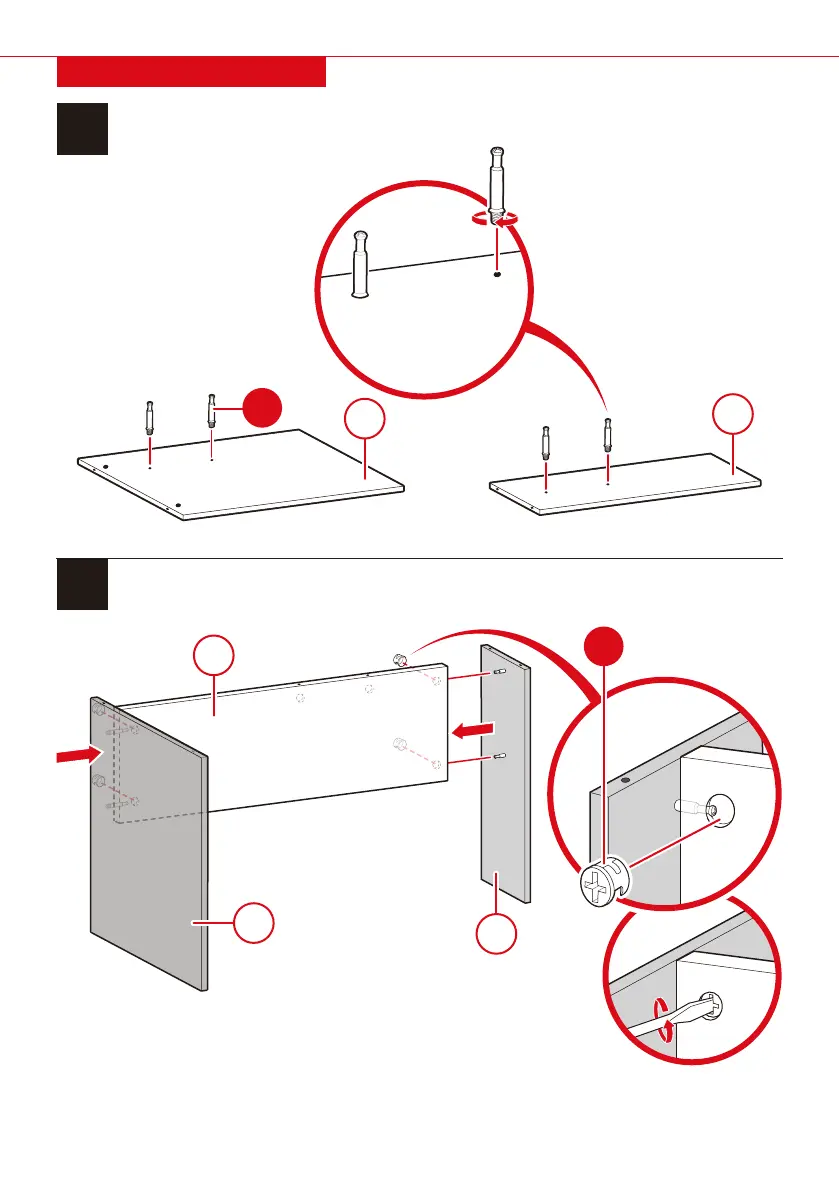

Insert the cam bolts on the long table left/right legs into the part 9 long board. Insert four part
D cam locks into the table back, and attach the legs by locking the cam locks.
Screw four part A cam bolts into the part 4 long table left leg and part 6 long table right leg.
x4
4
A
6
4
BACK VIEW
x4
D
