PRODUCT ASSEMBLY

BACK

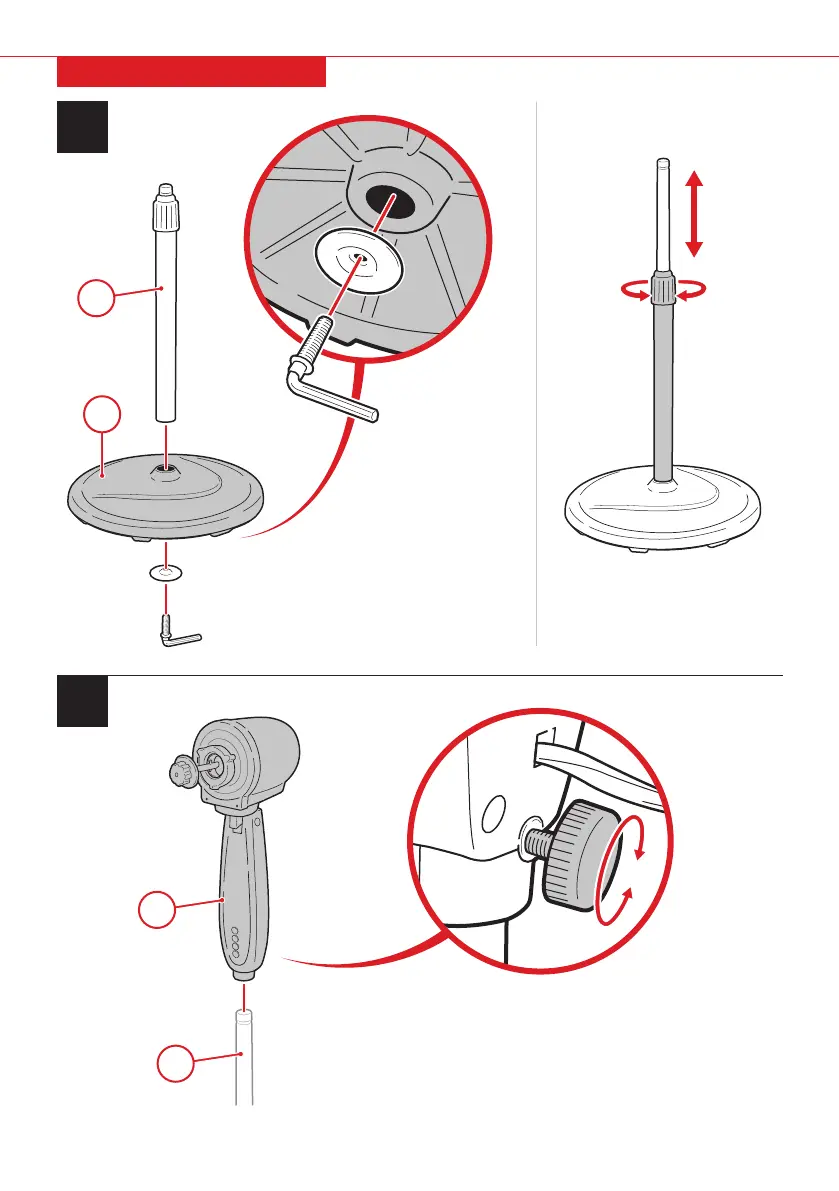

Remove the bolt/washer from the

part A pole. Replace the bolt/washer

to attach the pole to the part B base.

Slide the part C motor housing/controls onto the pole

and secure it by tightening the knob on the back.

NOTE:

Twist the pole to adjust height.

Pg. 5
