BCP SKY5871 - Product Assembly Instructions; Step 1: Attach Eye Bolt to Top Curved Bar; Step 2: Attach Canopy Frame

4 |
PRODUCT ASSEMBLY
1

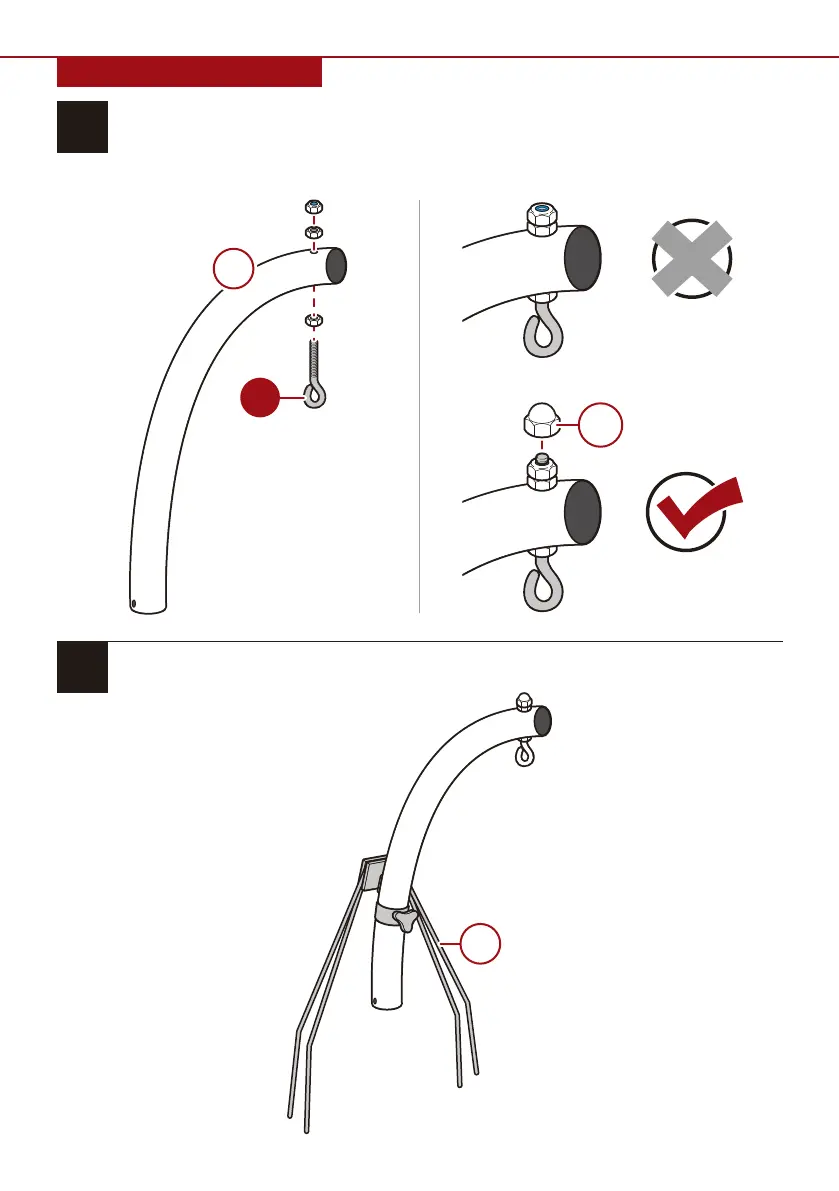

Use a wrench to attach the part 10 eye bolt set to the part A top curved bar. Before
proceeding, it is critical that the lock nut is fully engaged onto the eye bolt; turn the bolt past
the blue mark inside the nut to secure.
Use the part L nut caps to cover any exposed hardware.
Use a wrench to attach the part 10 eye bolt set to the part A top curved bar. Before
proceeding, it is critical that the lock nut is fully engaged onto the eye bolt; turn the bolt past
the blue mark inside the nut to secure.
Use the part L nut caps to cover any exposed hardware.
A
10
2
Attach the part J canopy frame to the part A top curved bar with the attached knob.
L
J
