A-PHILLIPS SCREWDRIVER 1
The doors on your cabinet should be evenly
spaced and the doors should open and close freely
without rubbing against the door frame.
If the cabinet’s doors appear out of alignment, this
condition can be corrected with minor adjustment
to the European hinges on each door.

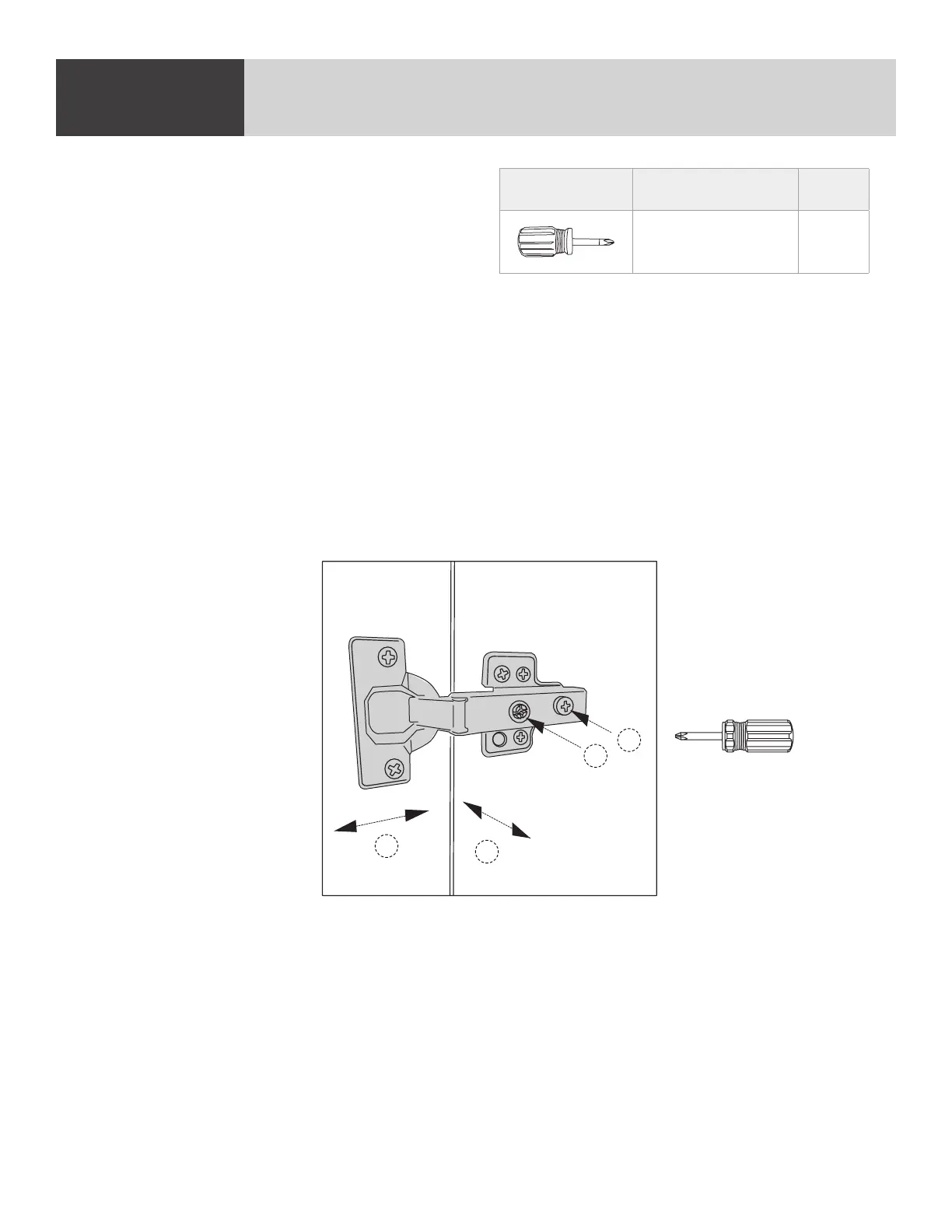

Use a (A) Phillips Screwdriver to adjust Corridor’s door hinges:
n By adjusting Screw 1, the door will move LEFT or RIGHT within the frame. Make minor
adjustments at both top and bottom hinges for best results.
n By adjusting Screw 2 the entire door will move IN or OUT, opening or closing the gap between
the door frame and cabinet. (This screw rarely needs adjustment.)
ADJUST DOOR HINGES (IF NEEDED)FINE TUNING
1
1
2
2
