These steps are to be followed after you have unpacked and completed the simple assembly instructions
for your Corridor AV cabinet. Due to jostling in freight or perhaps an uneven floor, the doors on your
Corridor cabinet may not appear to be in perfect alignment. Making a few minor adjustments can
rectify this situation. Be aware that depending on your situation, patience and a bit of trial and error are
required. The high-quality European hinge hardware is infinitely adjustable, but changing one element
can cause the need for further adjustments. Through a little adjustment, you can modify the orientation
of the cabinet doors to make sure that they are sitting perfectly on your Corridor unit.

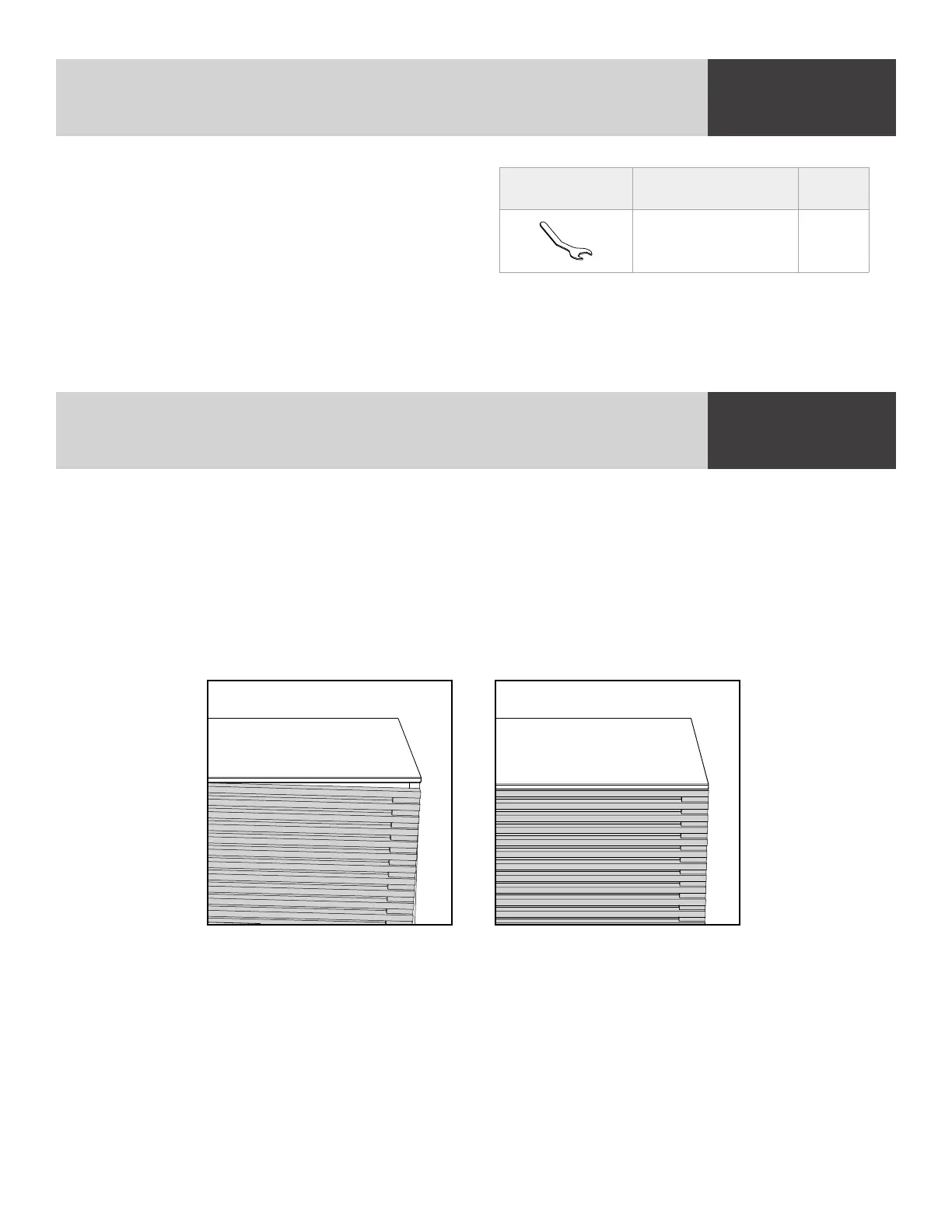

CORRECT!
Door is sitting squarely and
evenly spaced on tops and sides.
INCORRECT!
Door is out of alignment
with the rest of the unit.
DOOR ALIGNMENT
Levelers are integrated into each leg assembly
and are accessed at the bottom of each cabinet
leg using the (B2) Open Mouth Wrench. If your
floor is uneven, you may extend one or more
levelers to attain a level, stable cabinet
placement. Turning the leveler clockwise will
extend the leveler; turning it counter-clockwise
will retract it.
PART/DESCRIPTION QTY
B2-OPEN MOUTH
WRENCH
1
FINE TUNING
LEVEL CABINET FINE TUNING
