Установка процессорного кулера
Расположите крепежный мост для кулера (6) по центру
кулера (1). Установите кулер на процессор. Вставьте винты
крепежного моста (11) в отверстия крепежного моста для
кулера и попеременно затяните их. Используйте любую
крестовую отвертку.
Закрепите 120мм вентилятор (2) на кулере (1) с помощью
клипс для вентилятора (15). Подключите вентилятор к
PWM разъему материнской платы.
Для демонтажа 120мм вентилятора (2) вытащите клипсы для
вентилятора (15) с отверстий рамки вентилятора.
Общие сведения
Мы рекомендуем устанавливать кулер за пределами
корпуса ПК.
Необходимы следующие крепежные элементы:
1x процессорный кулер Pure Rock (1), 1x 120mm
вентилятор (2), 2x длинные кронштейны AMD (5), 1x
крепежный мост для кулера (6), 4x распорные гайки AMD
(9), 2x винты крепежного моста (11), 4x винты задней
пластины AMD (13), 2x клипсы для вентилятора (15), 4x
шайбы AM3 (16)

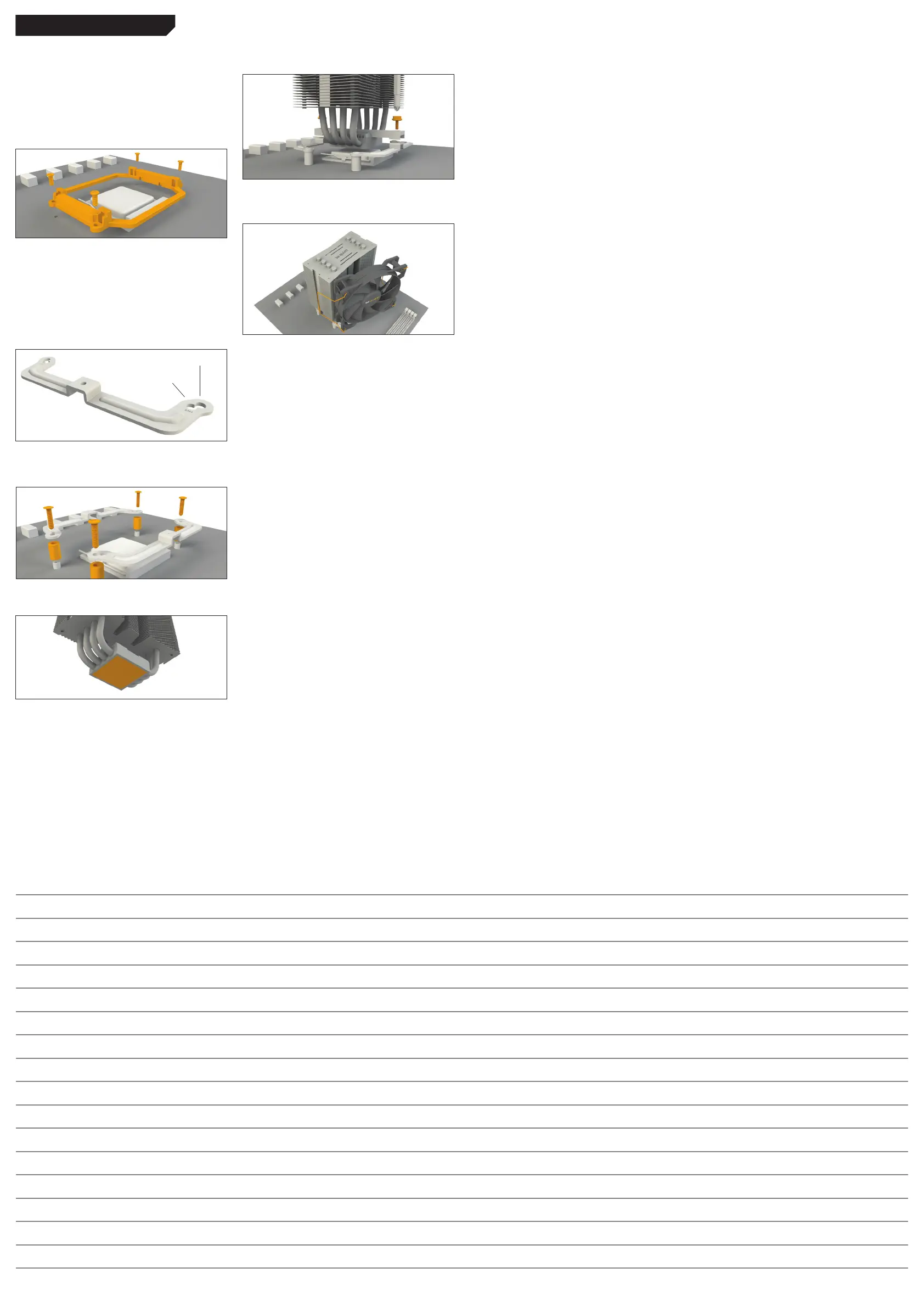

Сборка крепежной рамки кулера
Для установки процессорного кулера необходимо снять
пластиковые фиксаторы крепежного модуля AMD.
Установленная с завода часть крепежного модуля с
обратной стороны материнской платы используется для
установки кулера.
Примечание: Для установки Pure Rock (1) на материнскую
плату AM3, используйте шайбы AM3 (16), разместив их
над выступающими через переднюю часть материнской
платы болтами задней пластины.
Наживите 4 распорные гайки AMD (9) на выступающие через
переднюю часть материнской платы болты задней панели и
закрепите короткие AMD кронштейны (5) винтами задней
пластины AMD (13).
Защитное покрытие на нижней части кулера должно быть
удалено перед установкой на процессор.
Внимание: термопаста опасна для человеческого
организма. В случае проглатывании, выпейте много воды и
срочно обратитесь за медицинской помощью. Храните ее в
недоступном для детей месте. Избегайте попадания на кожу
и глаза.
AMD AM2(+) / AM3(+) / AM4 / FM1 / FM2(+)
AM4
AM2(+) / AM3(+) / FM1 / FM2(+)
Заметки
