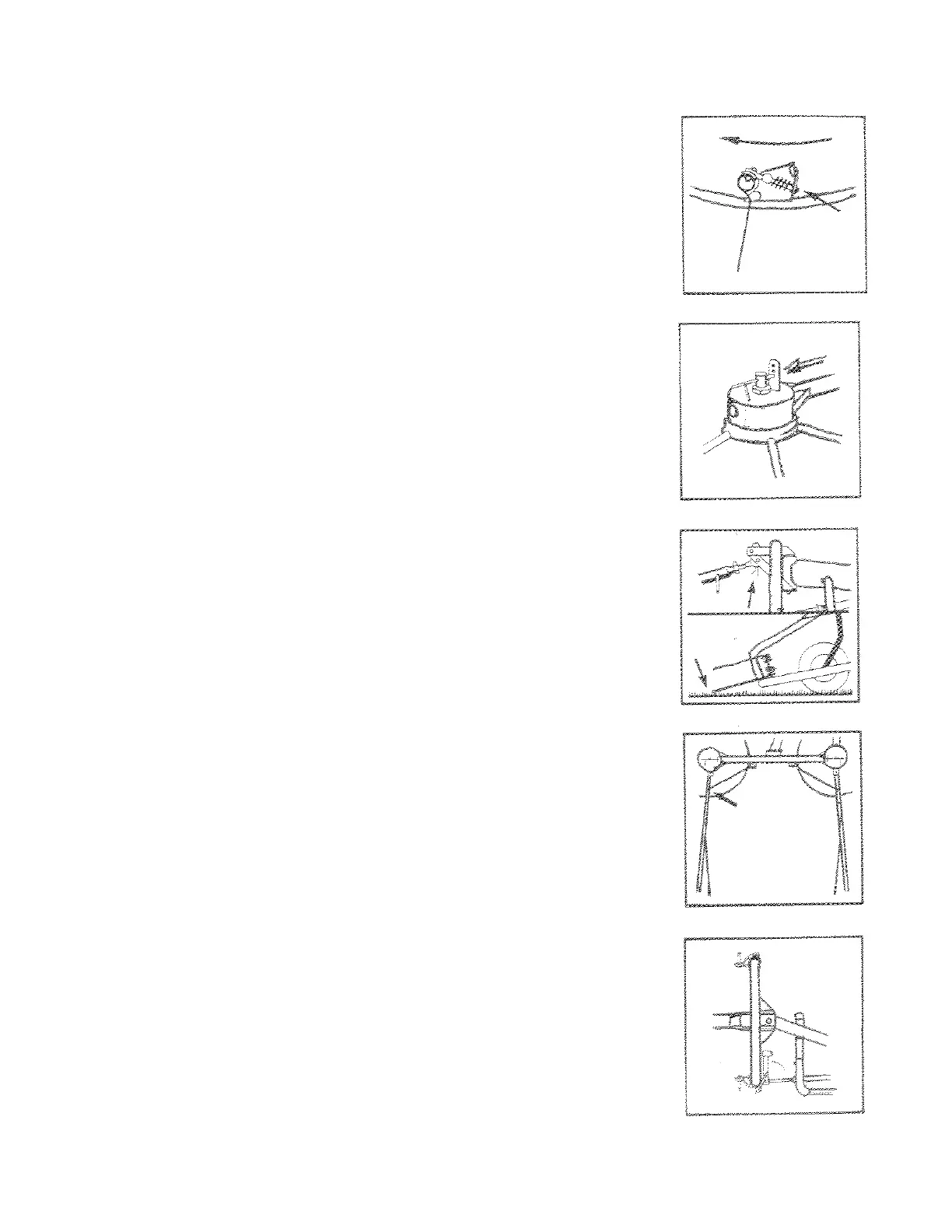

ADJUSTMENT FOR SPREADING ABD TEDDING
1. Tines
Put the tines in the tedding position by moving the tine pivot shaft
(check all tines are in the correct position.)
2. Wheels
The wheels must be in the lower or middle position, for this
operation; i.e. the machine will be in its highest position.
3. Top Link
The top link is attached in the lower hole of the hitch-frame. When
the points of the tines exactly touch the stubble in front of the
rotors, and the machine turns at full speed, the length of the top
link is correct. At 430 R.P.M. of the P.T.O. the tines have reached
their lowest position.
4. Swath deflectors
If required either one or both deflectors can be used to separate
the swaths. This is particularly useful when working the outsides
of a field.
5. Locking device
Disconnect the locking device.
