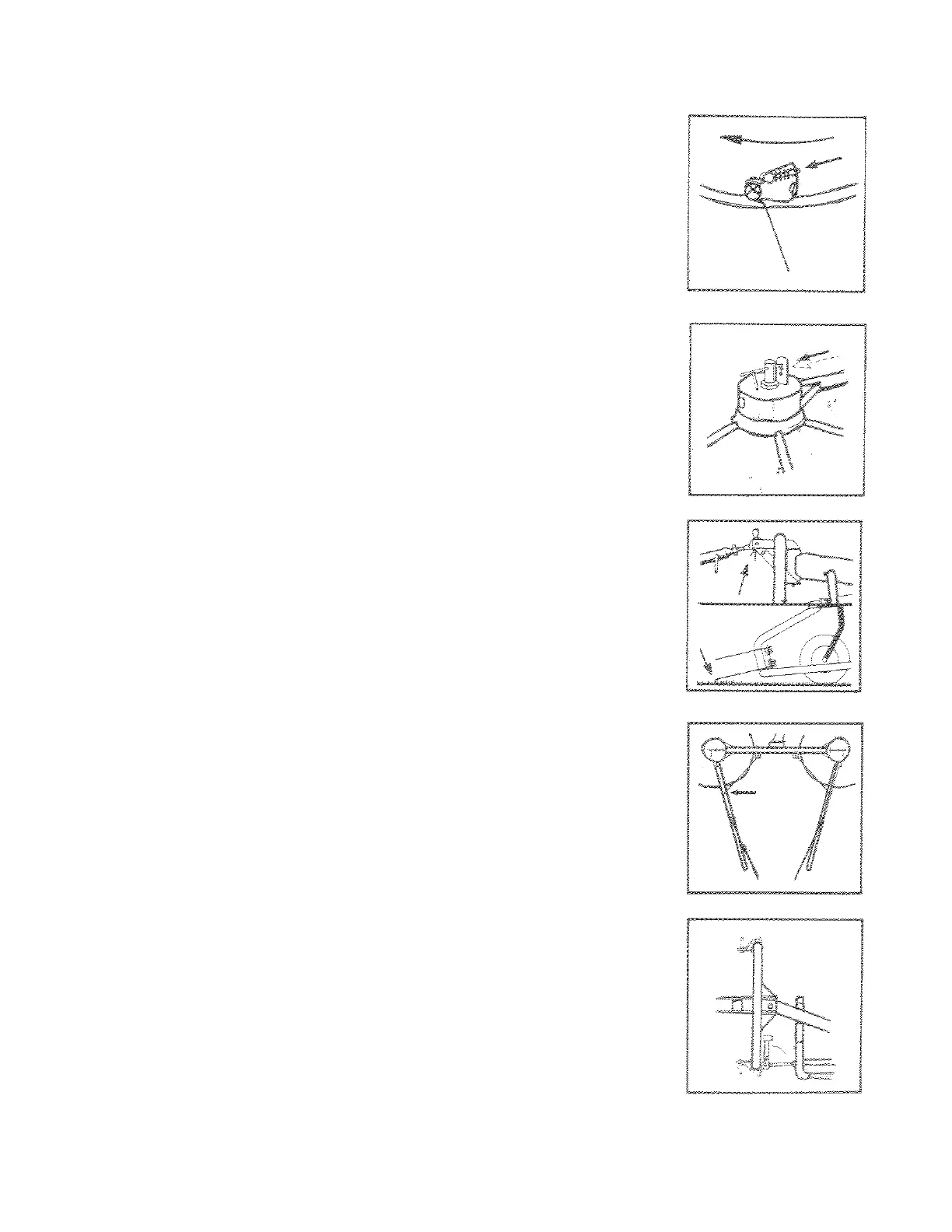

ADJUSTMENT OR RAKING AND WINDROWING
1. Tines
Place the tines in the raking position by moving the tine pivot
shaft (Check all tines are in the correct position.)
2. Wheels
The wheels must be set in the upper or middle position for this
Operation; i.e. the machine will be in its lowest position.
3. Top link
The top link is attached in the upper hole of the hitch-frame.
When the point of the tines exactly touch the stubble in front of
the rotors, and the machine turns at full speed the length of the
top link is correct. At 430 R.P.M. of the P.T.O., the tines have
reached their lowest position.
4. Swath deflectors
By placing the swath defectors in the position showed an equal
and fluffy swath is build.
5. Locking device
Disconnect the locking device.
