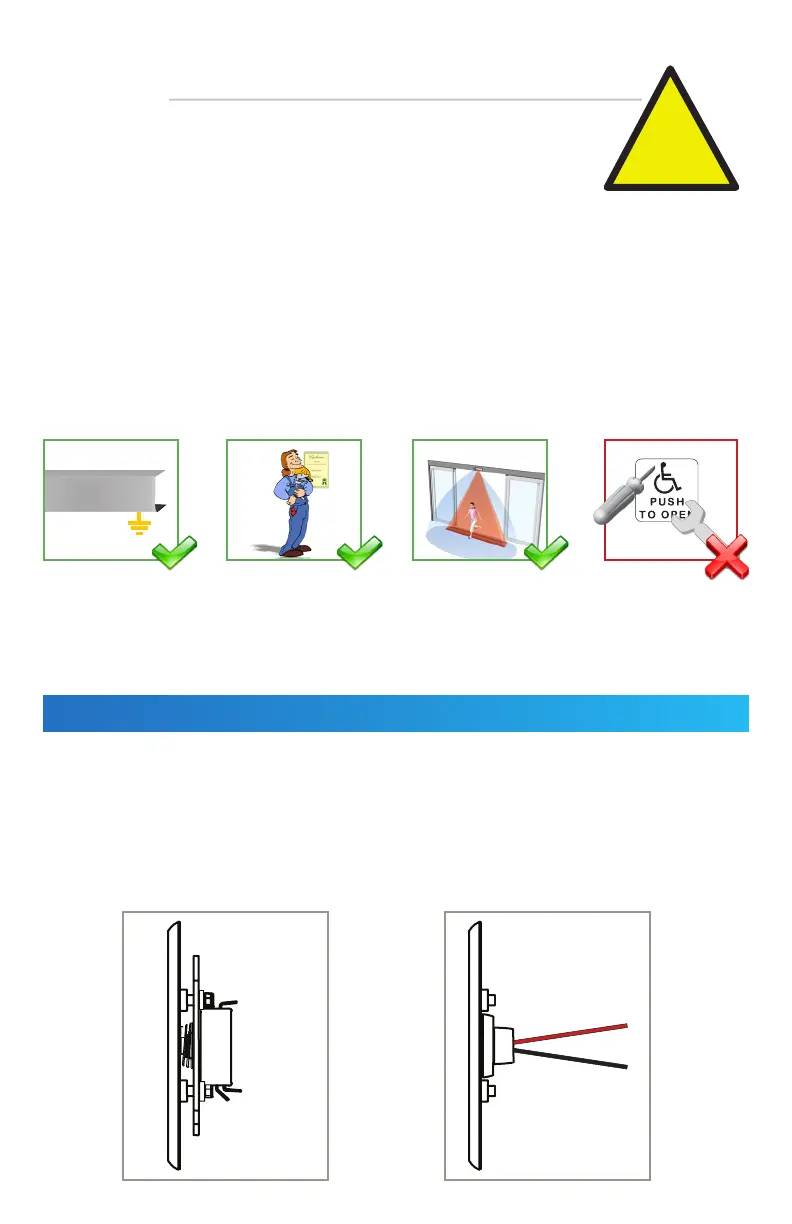

75.5940.05 PUSH PLATE FAMILY 20240315 Page 3 of 4
READ BEFORE BEGINNING INSTALLATION/PROGRAMMING/SET-UP
Only trained and qualified
personnel are recommended
to install and set up the
sensor.
The warranty is invalid if
unauthorized repairs are
made or attempted by
unauthorized personnel.
Always test the proper
operation of the
installation before
leaving the premises.
The door control system
and the header cover
profile must be correctly
grounded.
MOUNTING & WIRING
COM
NO
NC
SIDE VIEW
SIDE VIEW
1. Mark and drill the appropriate holes for mounting.
10PBJMS (4-stud) plate: jigsaw required for the hole
10PBS45: face plate must be removed before wiring (using Phillips screwdriver)
2. Wire the push plate to the door controller or radio-controlled transmitter using the NO and COM contacts.
If installing the Jamb with Microswitch (10PBJM1, 10PBJMS1, 10PBJML, or 10PBJMLL), wire-nut the microswitch
to the door controller using the NO and COM contacts.
Jamb with Microswitch
(10PBJM series)
standard
Shut off all power going to header before attempting any wiring procedures.
Maintain a clean and safe environment when working in public areas.
Constantly be aware of pedestrian traffic around the door area.
Always stop pedestrian traffic through the doorway when performing tests that may result in unexpected
reactions by the door.
ESD (electrostatic discharge): Circuit boards are vulnerable to damage by electrostatic discharge. Before handling
any board, ensure you dissipate your body’s ESD charge.
Always check placement of all wiring before powering up to ensure that moving door parts will not catch any
wires and cause damage to equipment.
Ensure compliance with all applicable safety standards (i.e. ANSI A156.10) upon completion of installation.
DO NOT attempt any internal repair of the components. All repairs and/or component replacements must be
performed by BEA, Inc. Unauthorized disassembly or repair:
1. May jeopardize personal safety and may expose one to the risk of electrical shock.
2. May adversely affect the safe and reliable performance of the product resulting in a voided warranty.
PRECAUTIONS
