4-3. Pitch curve setting
Adjust the transmitter's pitch curve so that you can get the pitch angles shown in the table
below in the low, mid and high positions of the throttle stick.
ⓐ Beginner
Low Mid High Remarks
Hovering -1 (46%) ★ 6 (76%) 11 (100%)
ST1 (Loop,Roll) -4 (30%) 4 (68%) 11 (100%)
ST2 (3D) -11 (0%) 2 (54%) 11 (100%)
Autorotation -6 (25%) 6 (76%) 11 (100%)
※ a (b) = a: pitch angle b: pitch curve value
ⓑ Expert
Low Mid High Remarks
Hovering -2 (46%) 6 (76%) 11 (100%)
ST1 (Loop,Roll) -5~-4 (30%) 4 (68%) 10~11 (100%)
ST2 (3D) -11~-10 (0%) 0~2 (54%) 10~11 (100%)
Autorotation -6 (25%) 6 (76%) 11 (100%)

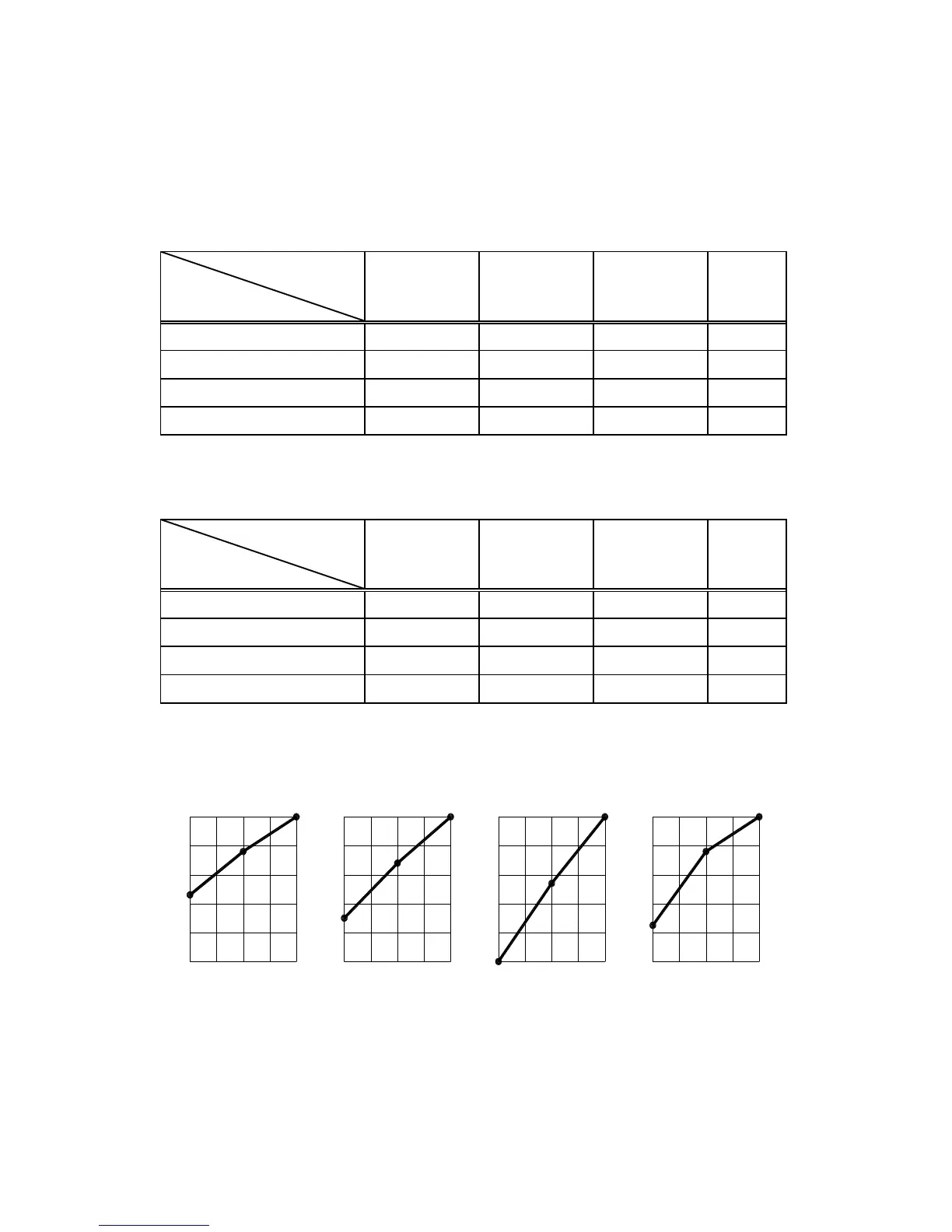

4-4. Pitch curve settings on the transmitter
