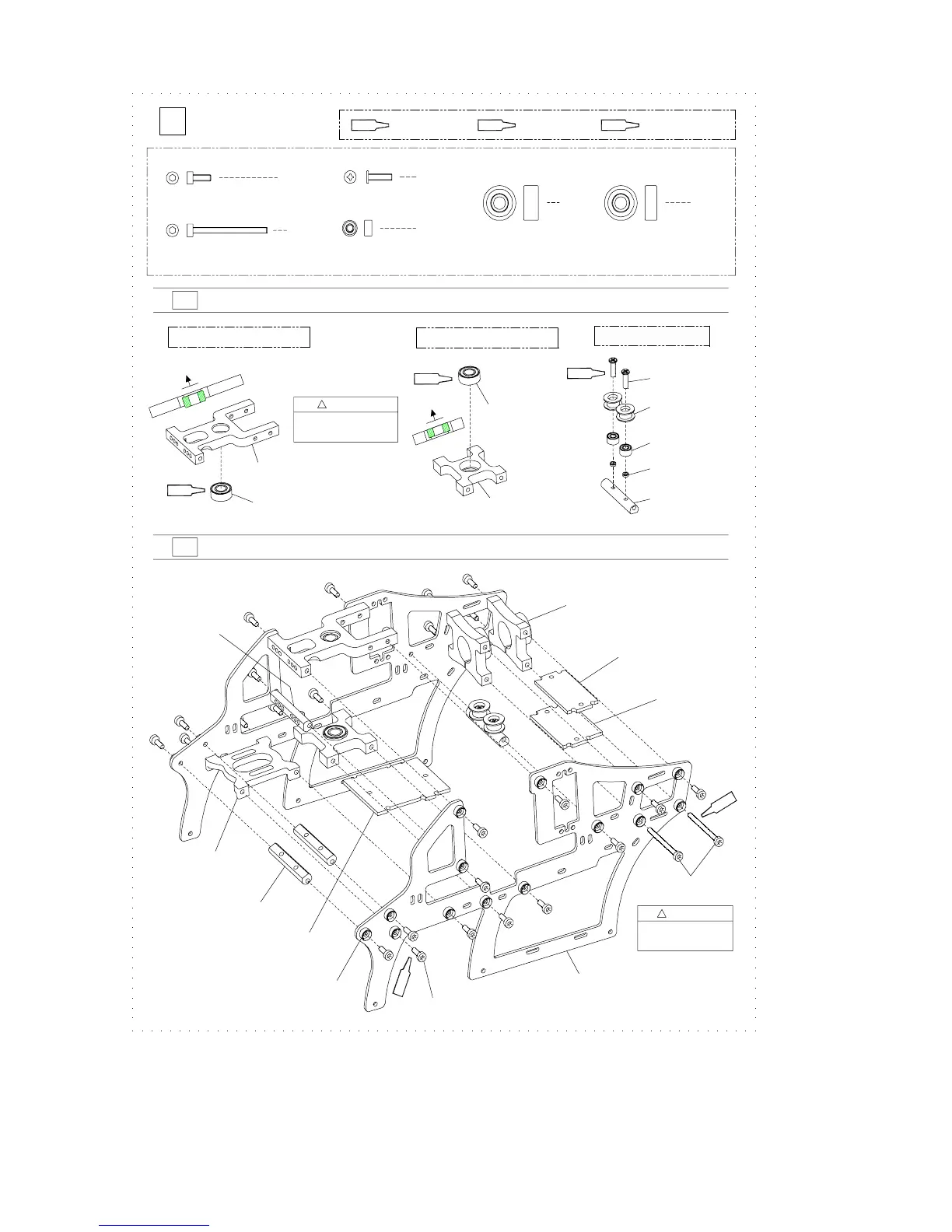

Beam E4 - Assembly

Lower Main Mast
Block (1 pc)
Ball Bearing,
#685zz (1 pc)
Ball Bearing,
#MR115zz (1 pc)
Upper Main Mast
Block (1 pc)
Main Mast Block, Belt Guide Pulley
Main Frame Set, Crossmember
Socket Head Bolt,
2x6mm (26 pcs)
Crossmember,
30mm (2 pcs)
Lower Gyro
Mount (1 pc)
Upper Main Mast Block Set
Lower Main Mast Block Set
Belt Guide Pulley Set
Servo Support,
30mm (1 pc)
Socket Washer
(28 pcs)
Socket Head Bolt, 2x6mm
26 pcs
Socket Head Bolt, 2x25mm
2 pcs
Ball Bearing, #MR52zz
2 pcs
Ball Bearing, #685zz
1 pc
Ball Bearing, #MR115zz
1 pc
Flat Head Bolt, 2x8mm
2 pcs
B
l
u
e
B
l
u
e
Red
Red
Blue
1-1
1-2
Socket Head Bolt,
2x25mm (2 pcs)
Caution
Do not overtighten
the bolts.
Crossmember,
30mm (1 pc)
Spacer,
3.5x0.7mm (2 pcs)
Ball Bearing,
#MR52zz (2 pcs)
Belt Guide Pulley,
9.5 (2 pcs)
Flat Head Bolt,
2x8mm (2 pcs)
Boom Mount
Clamp (2 pcs)
Upper Gyro
Mount (1 pc)
Motor Mount
(1 pc)
Radio Mount,
53mm (1 pc)
Main Frame Set
(2 pcs)
Caution
Mind the direction of
the Main Mast Block
!
RedBlue CA : Use Blue Locktite
: Use Cyano Adhesive
: Use Red Locktite
!
U
p
U
p
Assembly
3
