Beam E4 - Pitch and Throttle Setting

Pitch and Throttle settings
4-1. Pitch Range setting
ⓐ Check that no data has been input into the pitch curve function of the transmitter.
If any data has been input, delete it.
ⓑ Adjust the length of the pitch linkage rods so that the main blade pitch is 0˚ when
the transmitter throttle stick is in the mid position.
ⓒ Check that the full stroke is set to approximattely 22˚.
For example, if the low pitch is set to -11˚ and the high pitch is set to 11˚, than,
11˚-(-11˚)=22˚.
If you don't get 22˚ for the full stroke, use the transmitter's rudder angle
adjustment function for swash mode, and input data so that it becomes 22˚.
4-2. Suggested RPM of the main rotor
ⓐ Beginner
: Hovering 2300~2500 rpm
: ST1 (Loop,Roll) 2500 rpm
ⓑ Expert
: Hovering 2500 rpm
: ST1 (Loop,Roll) 2800 rpm
: ST2 (3D) 2800~3000 rpm
4

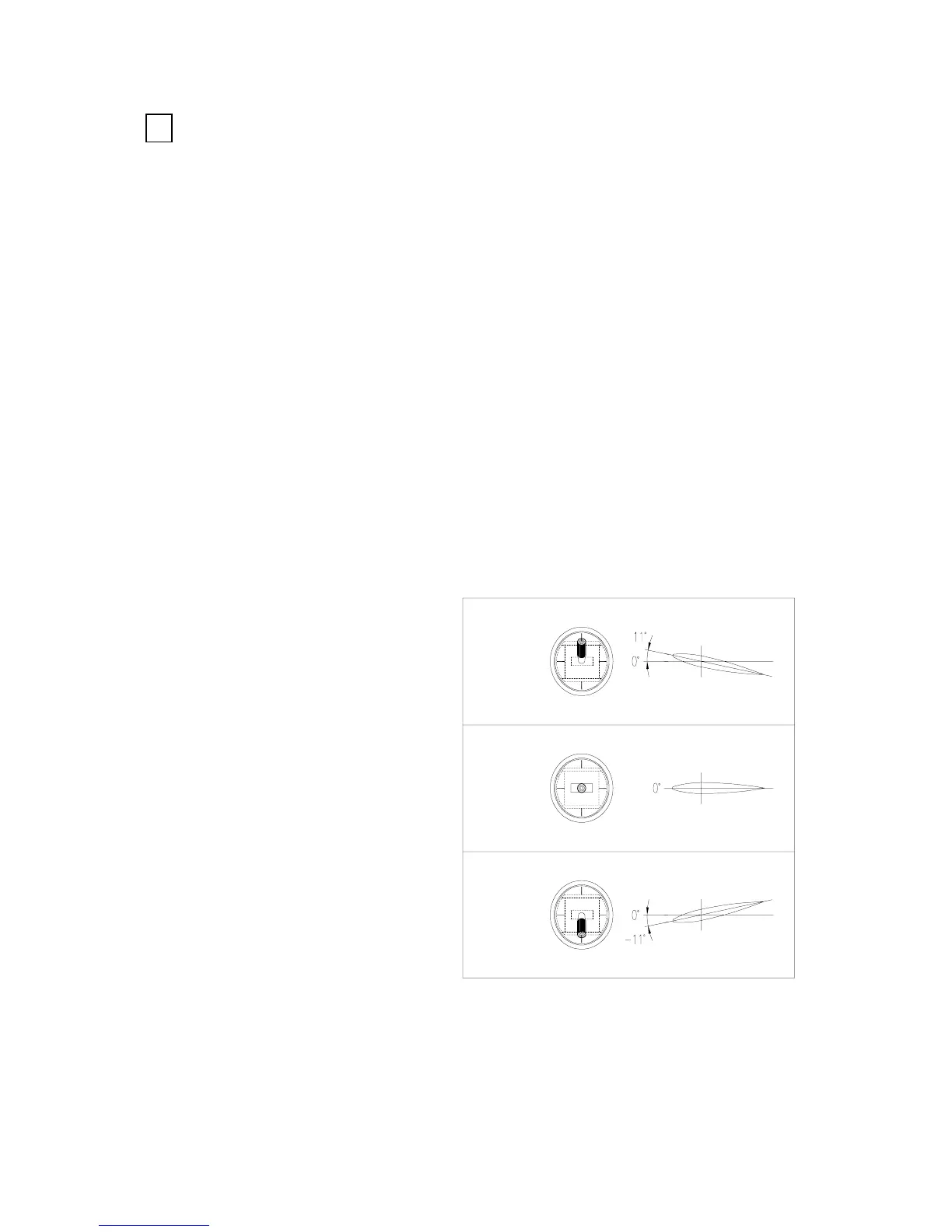

Low pitch
Neutral
pitch
High pitch
