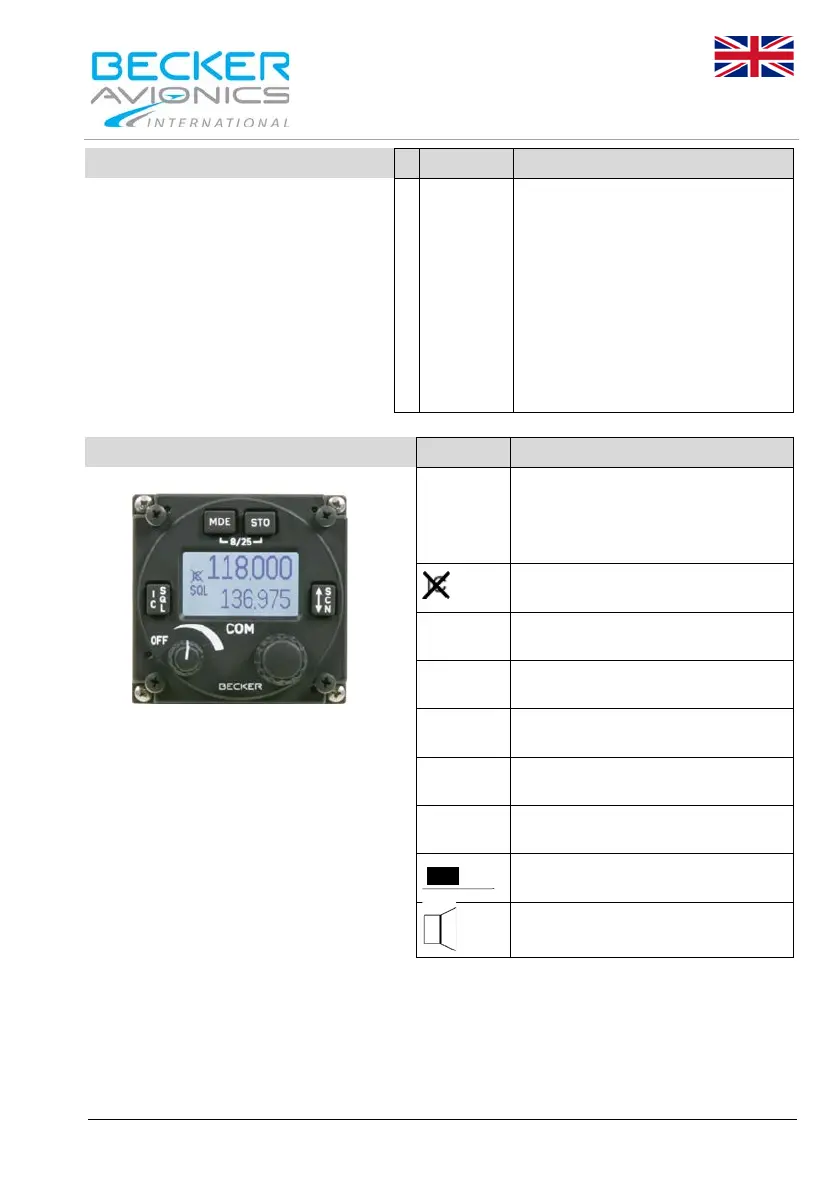

Quick Start Guide
Controls & Indications
VHF Transceiver Family 620X
0646.911-071 Issue 05 01/2017
We reserve the right to make technical changes. The data correspond to the current status at the time of printing.
frequency
Frequency tuning is possible in
Standard Mode.
In Scan Mode both frequencies,
active and preset are in listening
watch.
If no receive signal is
the active frequency, receiving
signals on the preset frequency
will be audible, but will be muted
as soon as a signal on the active
frequency is detected.
Figure: XX6201
IC
Intercom operation is active
(triggered by VOX or external
IC key)
Speaker is muted.
Intercom operation via VOX is
disabled
TX
Transceiver is in transmit
operation
SQL
Squelch function is active, weak
RX signals suppressed.
SCAN
Scan Mode
STO
The transceiver performs a
storage operation.
BATT
Battery below predefined low
threshold
Inverted figures or letters on
display ready to edit
Speaker on.
