Installation Guide
8

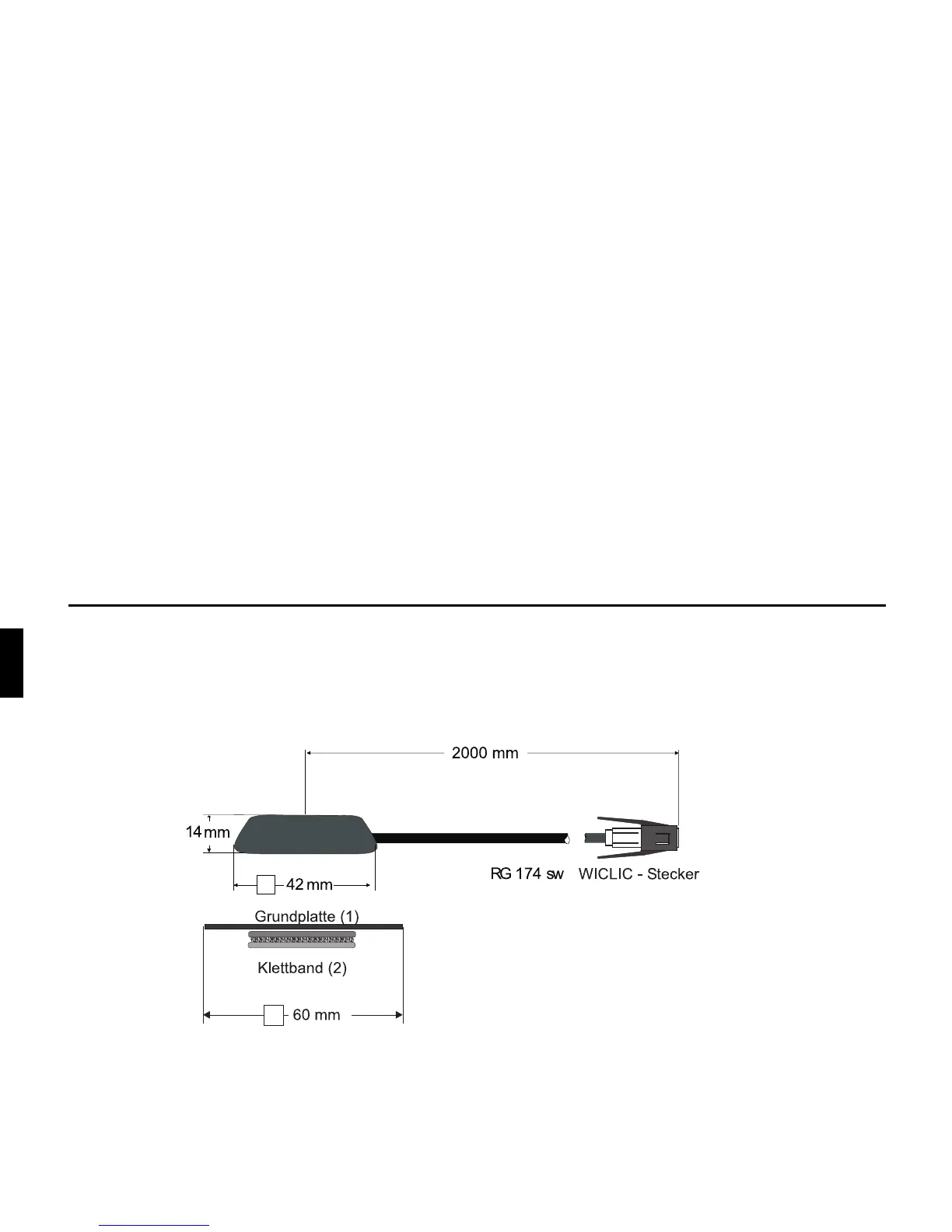

a. Secure the antenna to the base plate (1) with magnets.
b. Remove protective strip from top of adhesive tape (2) and stick to the centre of the base plate underside.
c. Remove protective strip from bottom of adhesive tape (2) and stick the antenna and base plate onto the vehicle
console beneath the windscreen at the installation position.
Connecting a GSM antenna
The connection of a GSM antenna is only necessary or possible for devices with a built-in telephone module.
As a GSM telephone antenna is already installed in many vehicles, an adapter is supplied with the device (device connection on
an FME connector). Connect the adapter lead to the corresponding socket on the rear of the device. You can then connect to the
adapter lead either a commercially available telephone antenna or an antenna that is already installed in the vehicle. If the con-
nections do not fit, you will need to use appropriate adapters.
