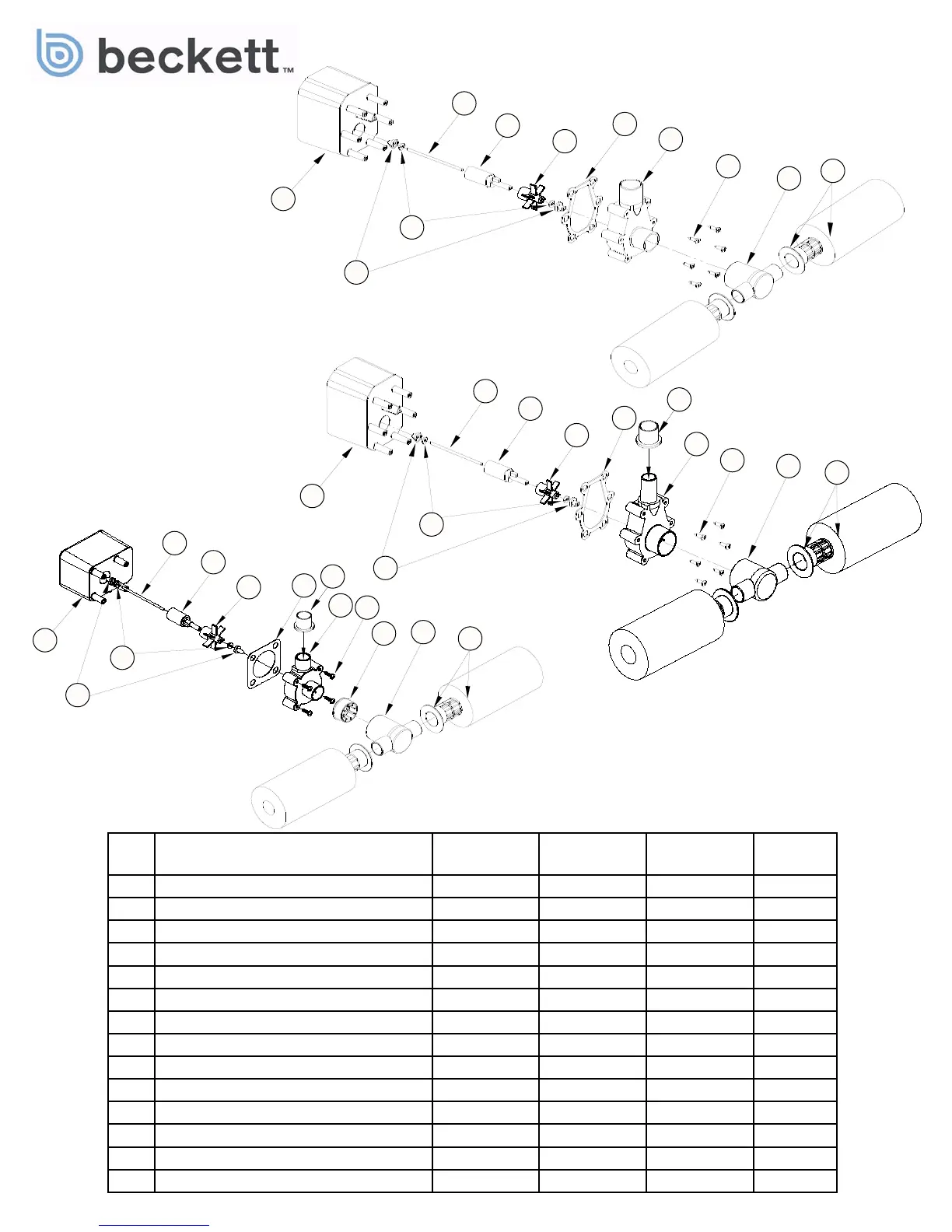

KEY DESCRIPTION DP800
PART #
DP1200
PART #
DP1800
PART #
QTY
NEEDED
1 PUMP BODY W/CORD 096-110095 096-050595 096-050596 1
2 ROTOR ASSEMBLY (INCLUDES A-E) 096-110094 096-110097 096-110099 1
2A MAGNET AXLE 078-110272 078-110274 078-110278 1
2B IMPELLER 078-110271 078-110275 078-110279 1
2C SHAFT 090-070154 090-070160 090-070239 1
2D THRUST WASHERS 090-040015 090-040021 090-040023 2
2E END CAPS 078-110157 078-110079 078-110277 2
3 GASKET 078-110031 078-110078 078-110078 1
4 VOLUTE HOUSING 078-110005 078-110261 078-110260 1
5 PHILLIPS HEAD SCREWS 090-010063 090-010063 090-010063 4/6
6 INTAKE STRAINER ASSY 096-110009 096-110009 096-110009 2
7 T- FITTING 078-110276 078-110276 078-110276 1
8 1” ID HOSE ADAPTOR 078-110273 078-110273 NA 1
9 T-FITTING ADAPTOR 078-110306 NA NA 1
