Technical data
26 ─── Version: 2.1AS2000

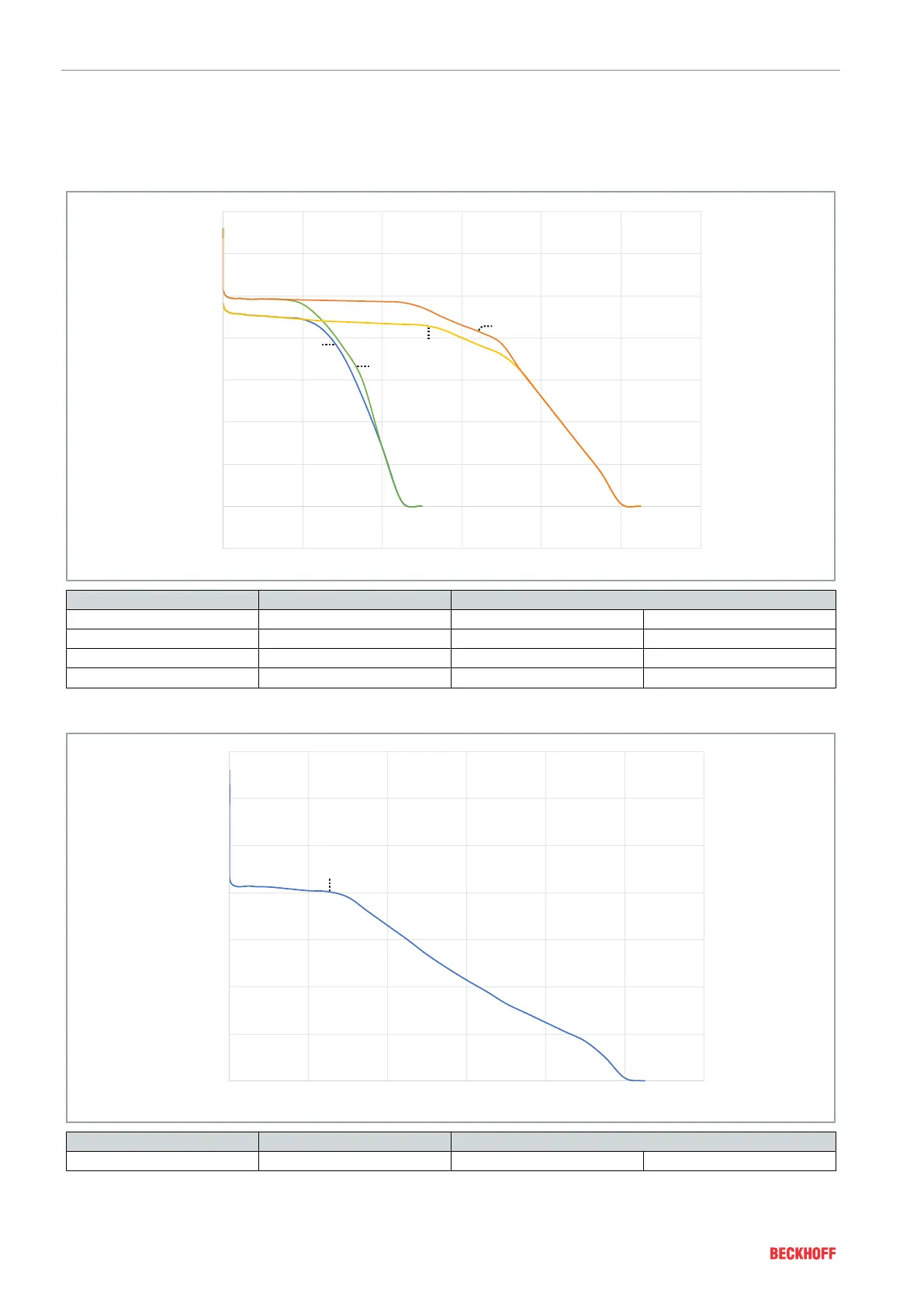

Characteristic torque and
speed curves
For the design of your application. The curves were recorded with
"open loop" controlled operation and "vector control" field-oriented
control
AS2041-1H00
• "Open loop" controlled operation
-0,5
0
0,5
1
1,5
2
2,5
3
3,5
0 200 400 600 800 1000 1200
Torque [Nm]
Speed [rpm]
3
4
1
2
Curve Motor type Recording
1 AS2041-1H00 24V
DC
5.0A EL7047
2 AS2041-1H00 24V
DC
5.6A EL7047+ZB8610
3 AS2041-1H00 48V
DC
5.0A EL7047
4 AS2041-1H00 48V
DC
5.6A EL7047+ZB8610
AS2041-1H10
• "Open loop" controlled operation
0
0,5
1
1,5
2
2,5
3
3,5
0 200 400 600 800 1000 1200
Torque [Nm]
Speed [rpm]
1
Curve Motor type Recording
1 AS2041-1H10 24V
DC
5.0A EL7041-1000
