Mechanical installation
44 ─── Version: 2.1AS2000

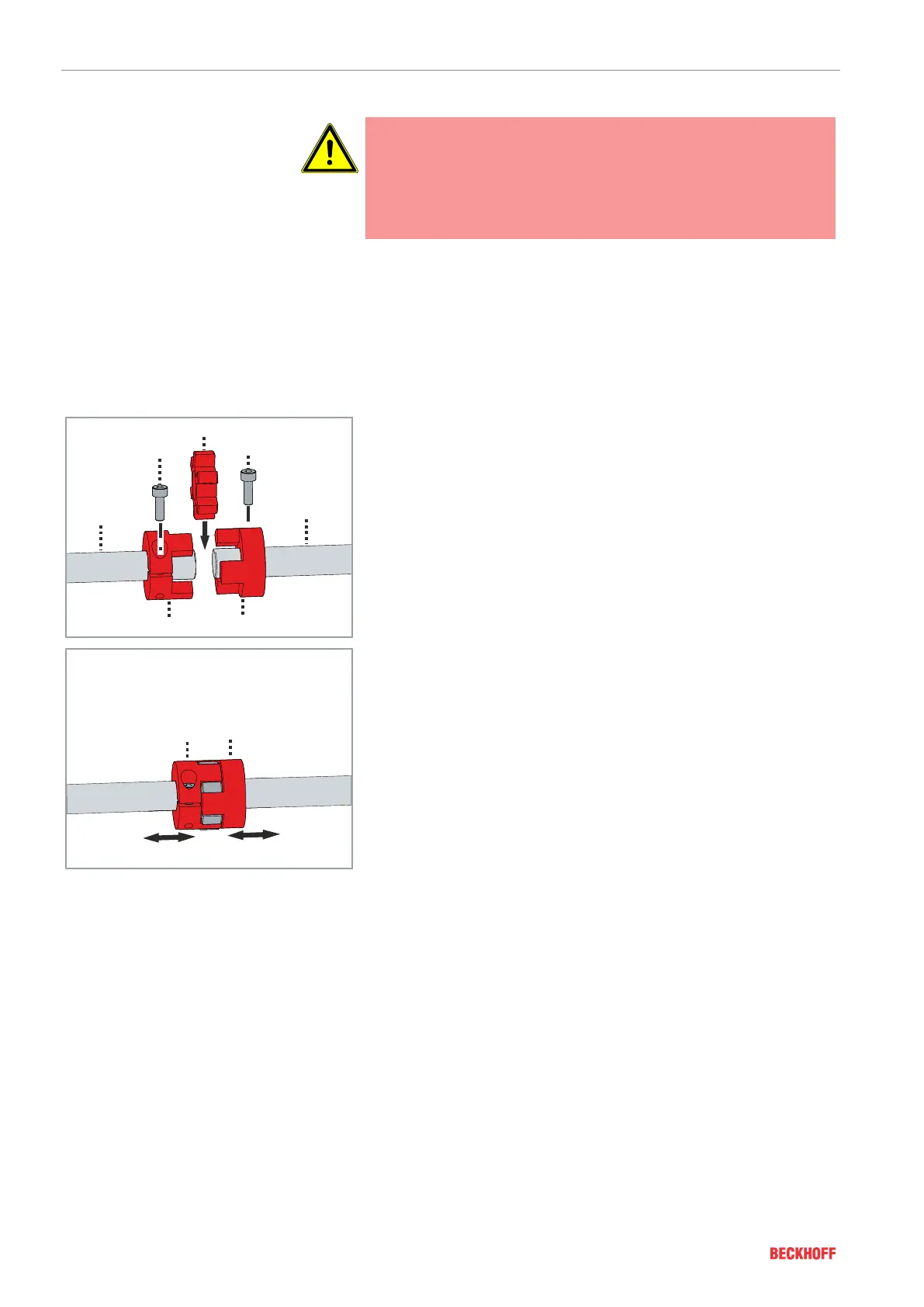

Machining of pre-drilled coupling hubs
Do not exceed the permissible bore diameter
Do not exceed the maximum permissible bore diameter specified
in the Technical data.
If you exceed the maximum values, the coupling may break and
parts may be ejected. Flying parts can lead to serious or even fatal
injuries.
Adhere to the concentricity and axial run-out accuracies and do not
clamp to the hub bridges.
For customer-specific special solutions and changes to the coupling
hubs, contact our Applications Department. Beckhoff GmbH & Co.
KG accepts no liability for unapproved, unauthorized conversions
and modifications of the components.
8.3.2
Mounting
6
2
3
4
1
5
6
7
7
6
► Mount the coupling hubs 6 and 7 on the shafts 1 and 5
► Insert screws 2 and 4
► Position the elastomer ring 3
6
2
3
4
1
5
6
7
7
6
► Push coupling hubs 6 and 7 together and align
► Make sure that you adhere to the distance dimensions between
the coupling hubs as specified in the Technical data
► Tighten the screws to the torque specified in the Technical data
