Commissioning

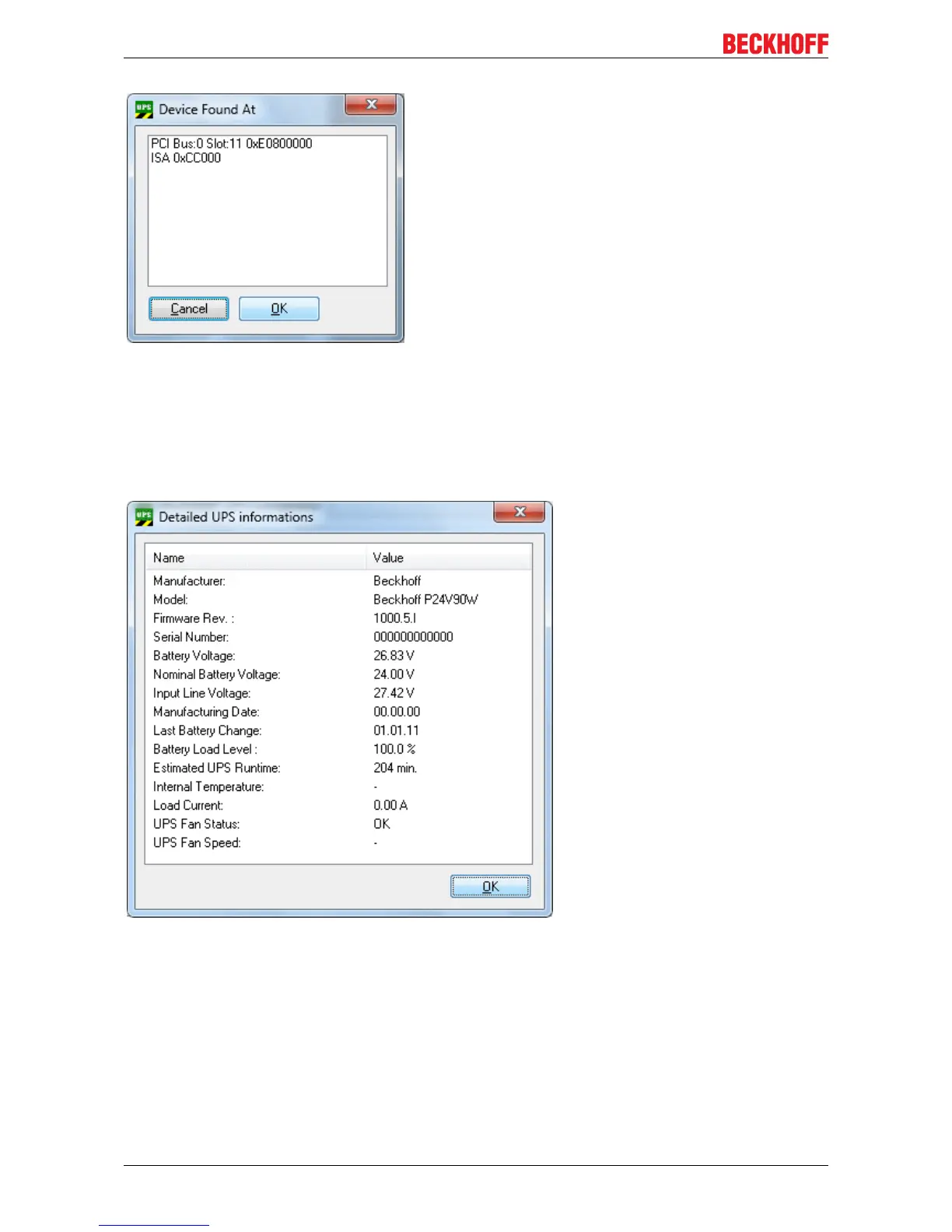

Several CP903x cards can be fitted in one PC, but the UPS is only physically linked to one of them. The
Search button can be used to look for all the CP903x cards. The appropriate card must then be selected.
5.2.1.3 UPS info. dialog
The detailed UPS information is displayed in this dialog.
UPS fan status: Only available with Beckhoff P24Vxxxx with firmware version >= 45.1.I.
The nominal speed of the fan is ~3000 RPM or ~10000 RPM.
UPS fan speed: Only available with Beckhoff P24Vxxxx with firmware version >= 45.1.I.
5.2.1.4 Device configuration dialog
Dialog with device-specific settings.
CX2100-09x448 Version: 1.3
