4 Assembly and connecting
4.1 Mechanical assembly
4.1.1 Dimensions
The CX90x0 product range is characterized by small overall installed size and high modularity. For project
planning purposes, a CPU module, a power supply unit and the associated system interfaces and fieldbus
interfaces have to be provided. The overall width of the application is made up of the individual modules.
With a height of 100 mm, the module dimensions exactly match those of the Beckhoff Bus Terminals.
Together with the lowered connector surfaces, this means that it can be used in a standard terminal box with
a depth of 120 mm.
Attention
Cooling the device
To ensure cooling to the device in operation it is important keep the safety distances.

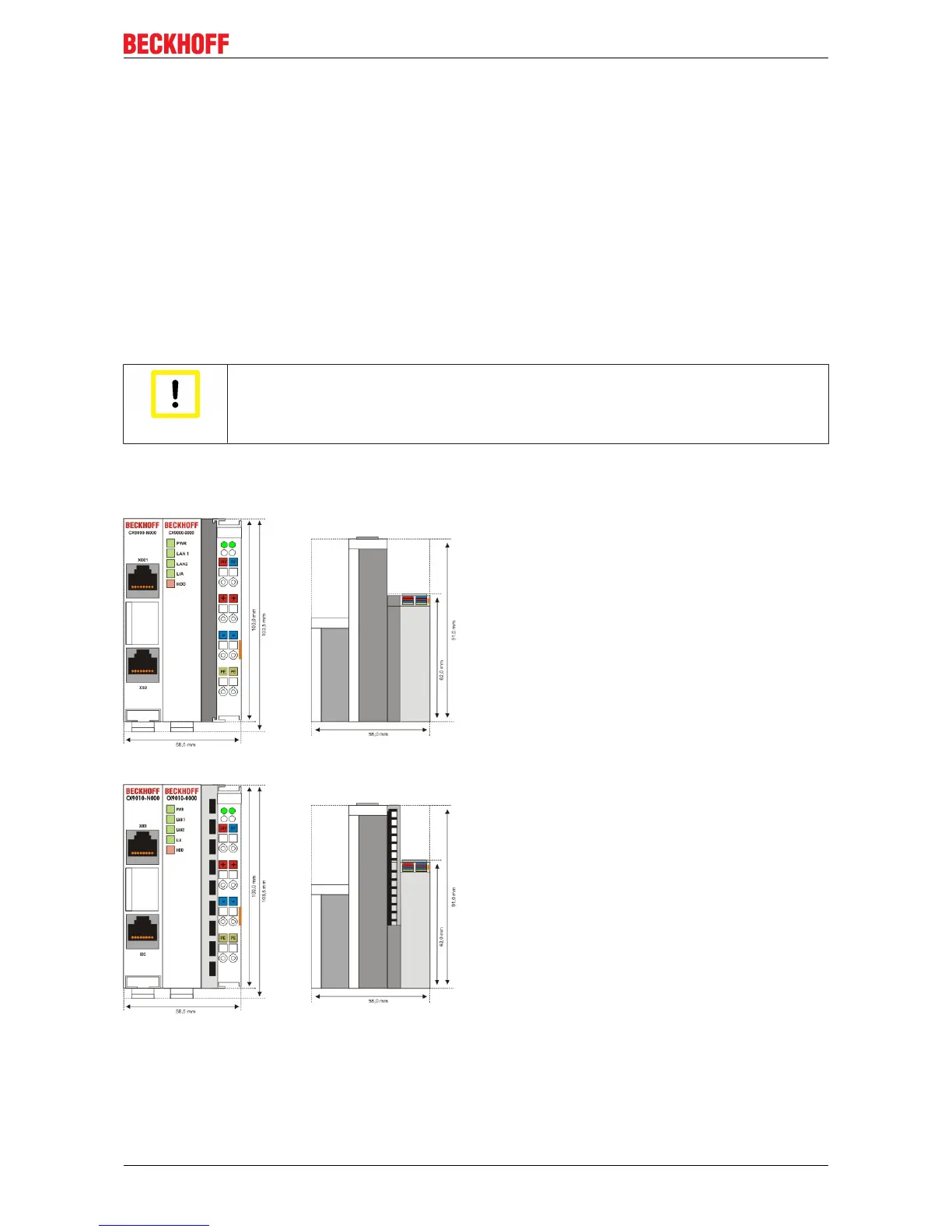

CX90x0-x000 CPU Basic module:
without heat sink:
with heat sink:
