Parameterization and commissioning
EL6731110 Version: 2.8

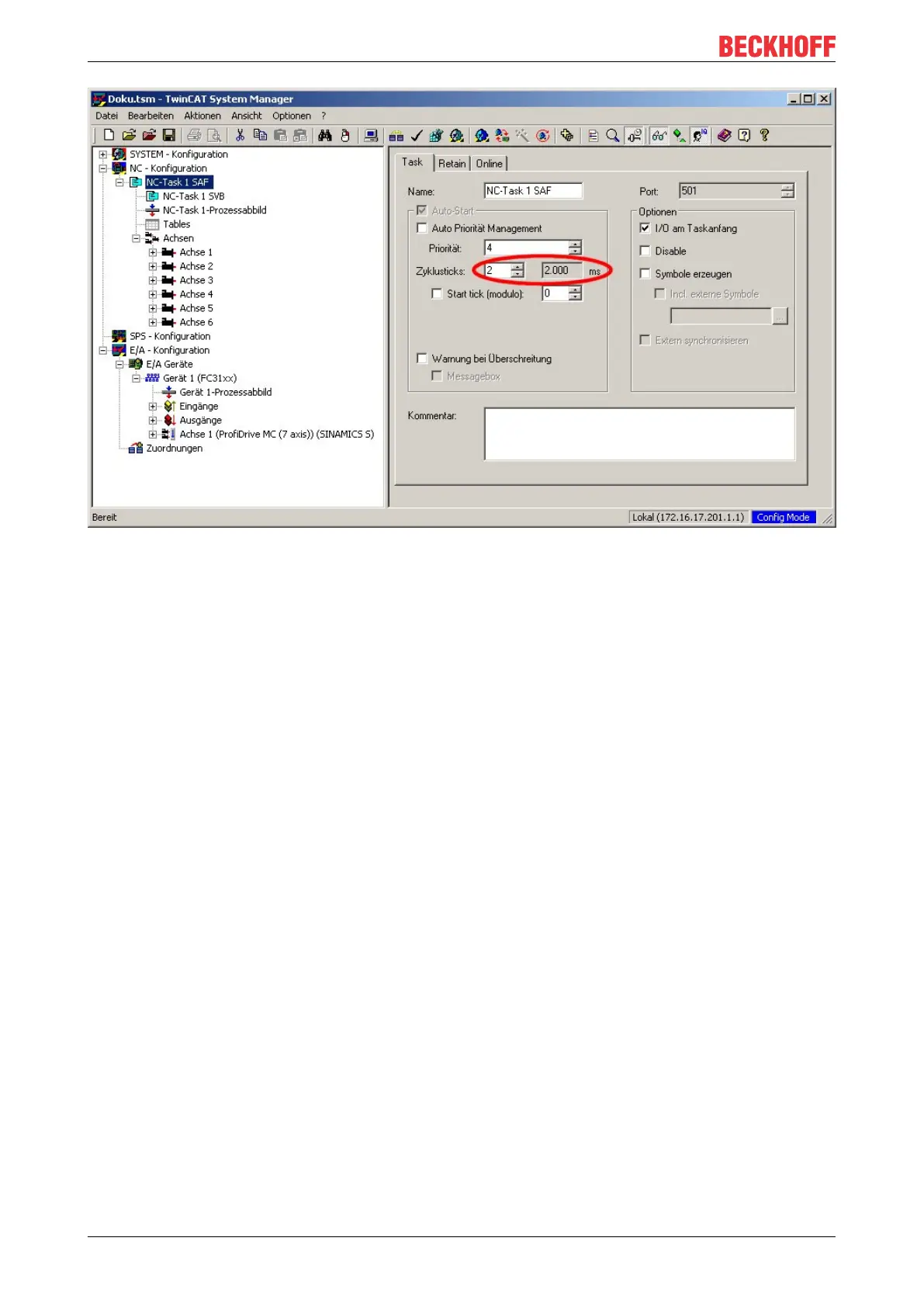

Fig.110: NC task, cycle time
Appending and parameterizing axes
Enter the required number of axes in the context menu for the Axes symbol. The names Axis 1, Axis 2,… are
only placeholders. To facilitate identification the names of the function are specified in the software, or the
structures from a previous project are adopted. Set the axis type to Profidrive MC (DPV2) and the unit for
actual position logging (e.g. mm for a linear axis) in the Settings tab for the respective individual axis. Use
the button "Linked with…" to specify which of these logical axes (software structures) are linked to which
individual PROFIdrive MC axis (axis system x, #A…#H).
