Beckhoff TwinSAFE EJ Series - Fig. 3 Digital Input - Safety Parameters

General operation / function
EJ19xx and EJ29xx 15Version: 1.2.0

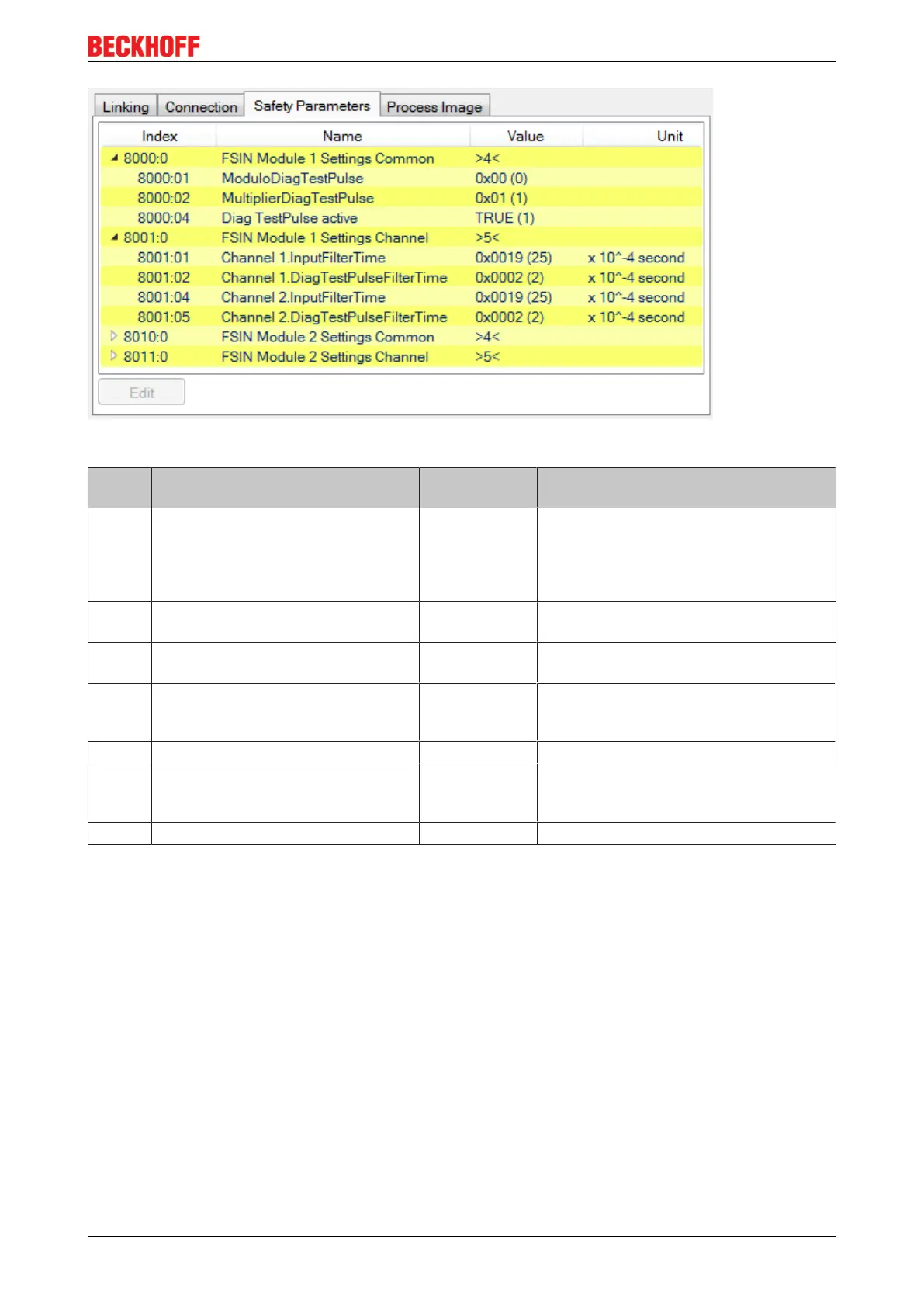

Fig.3: Digital input - safety parameters
Index Name Default value /
unit
Description
80x0:01 ModuloDiagTestPulse 0x00 / integer Modulo value for the frequency of the
generation of a test pulse.
0 -> every time
1 -> every second time
...
80x0:02 MultiplierDiagTestPulse 0x01 / integer Length of the test pulse in multiples of
2ms
80x0:04 Diag TestPulse active TRUE / Boolean Activation of test pulses for the
corresponding input module
80x1:01 Channel 1.InputFilterTime 0x0019 / 0.1ms Input filter of safe input1. Following this
time the internal input signal changes to
the applied signal state.
80x1:02 Channel 1.DiagTestPulseFilterTime 0x0002 / 0.1ms Input filter for the test pulse signal
80x1:04 Channel 2.InputFilterTime 0x0019 / 0.1ms Input filter of safe input2. Following this
time the internal input signal changes to
the applied signal state.
80x1:05 Channel 2.DiagTestPulseFilterTime 0x0002 / 0.1ms Input filter for the test pulse signal
The index is incremented by 0x10 for each input module in accordance with the number of inputs.
