11

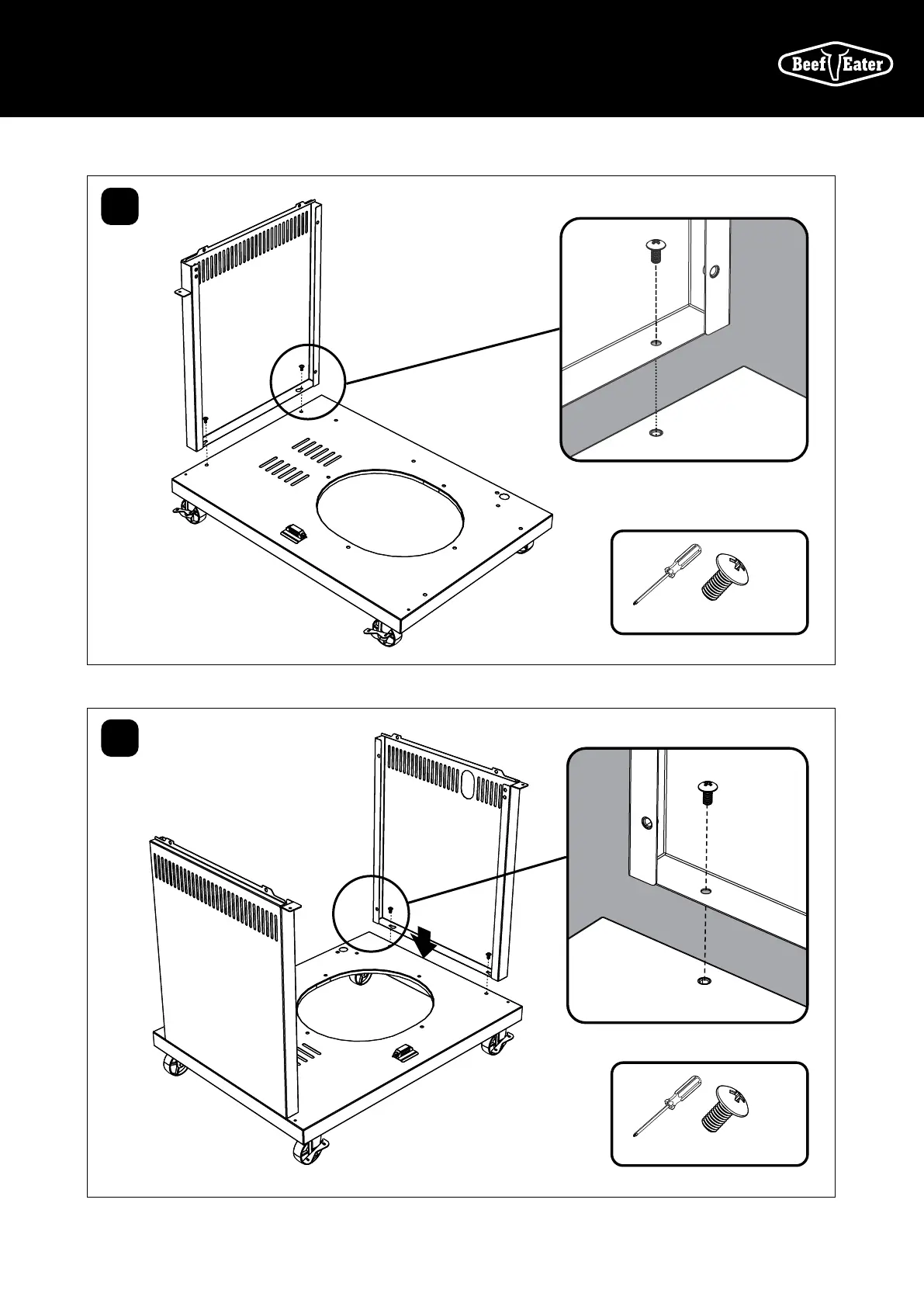

ASSEMBLING THE BARBECUE
x 2
x 2
3
4
Large head M6x12mm
Large head M6x12mm
Fit screws but do not tighten
to position subsequent screws
more easily
Fit screws but do not tighten
to position subsequent screws
more easily
ASSEMBLING THE BARBECUE
