Beef Eater 1200 Series - Page 13

x 4
7
8

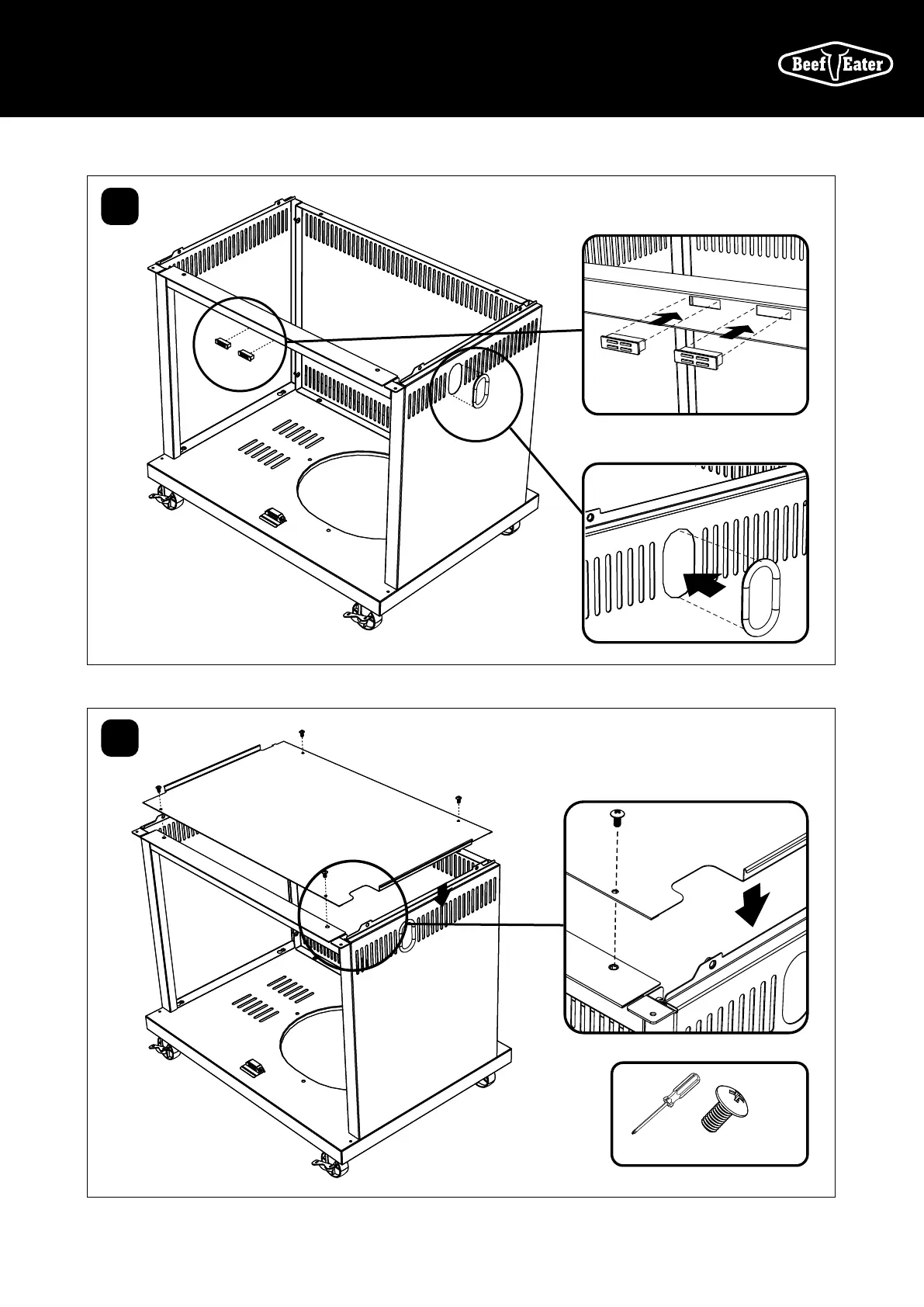

Large head M6x12mm
Ensure the flange (protruding rim) of the
separation panel engages both the left and right
hand side panels, before screwing in.
Clip magnets in place
Fit Grommet to Right Side Panel
13ASSEMBLING THE BARBECUE
ASSEMBLING THE BARBECUE
