Beef Eater 1200 Series - Page 14

9
1 2 3
4

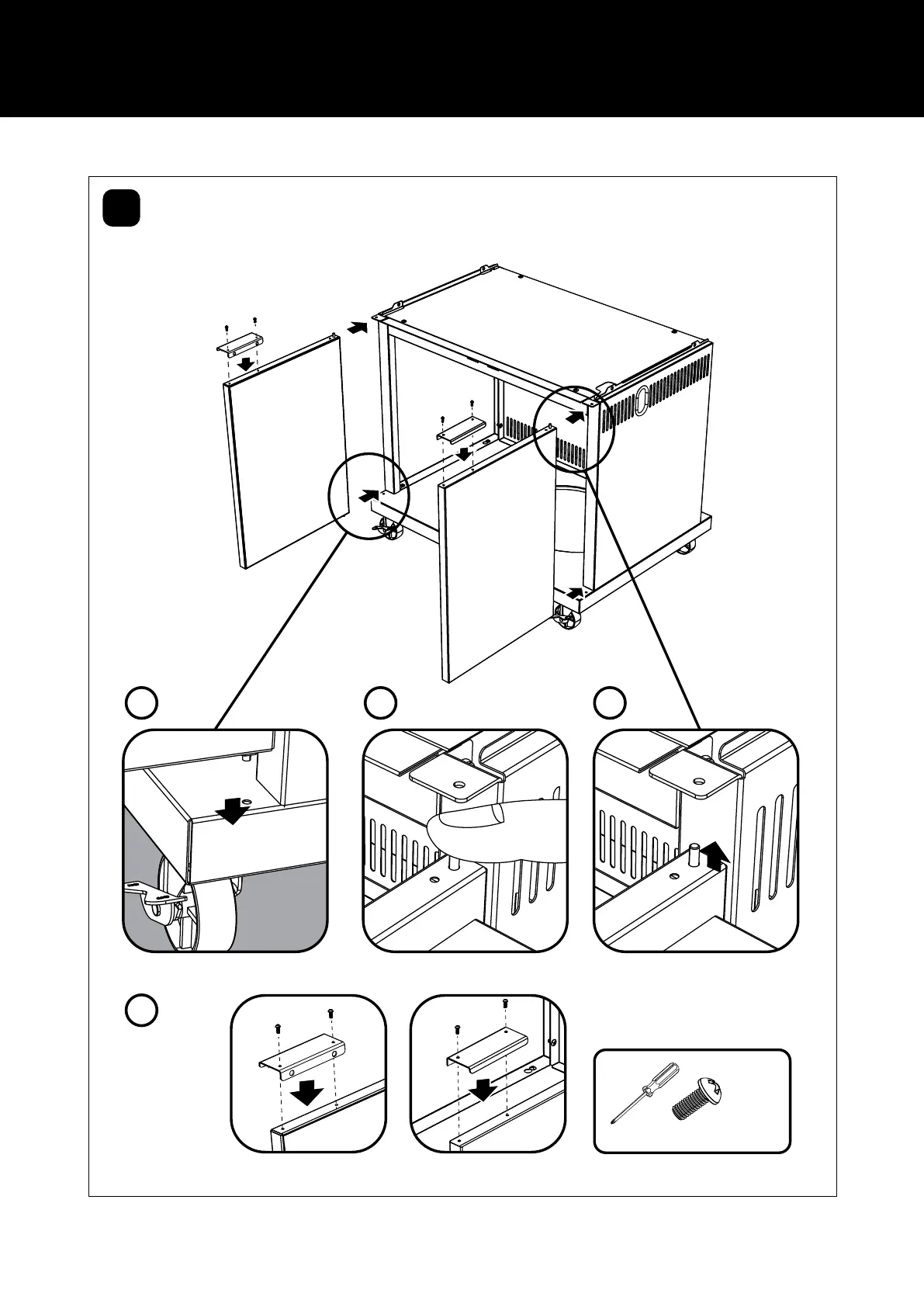

First fit lower door pin into the hole on the base
assembly. Then depress the upper door pin with your
finger, line up with the hole above on the separator
panel, and release to allow the pin into the hole.
Attach handles
to doors with
screws
(M4 x 8mm)
ASSEMBLING THE BARBECUE
14
ASSEMBLING THE BARBECUE
x 4
M4x8mm
