Beef Eater 1200 Series - Connecting the Side Burner

To Next Page

To Previous Page

M0225232 001 bolt (SCREW M6 X 12.3)

M0225232 001 bolt (SCREW M6 X 12.4)

M0227910 001 bottle (9KG GAS BOTTLE.1)

M0413168 001 hose (HOSE GAS BOTTLE TO SIDE BURNER.1)

M0413381 001 hose (HOSE MANIFOLD TO SIDE BURNER.1)

Constraints

Applications

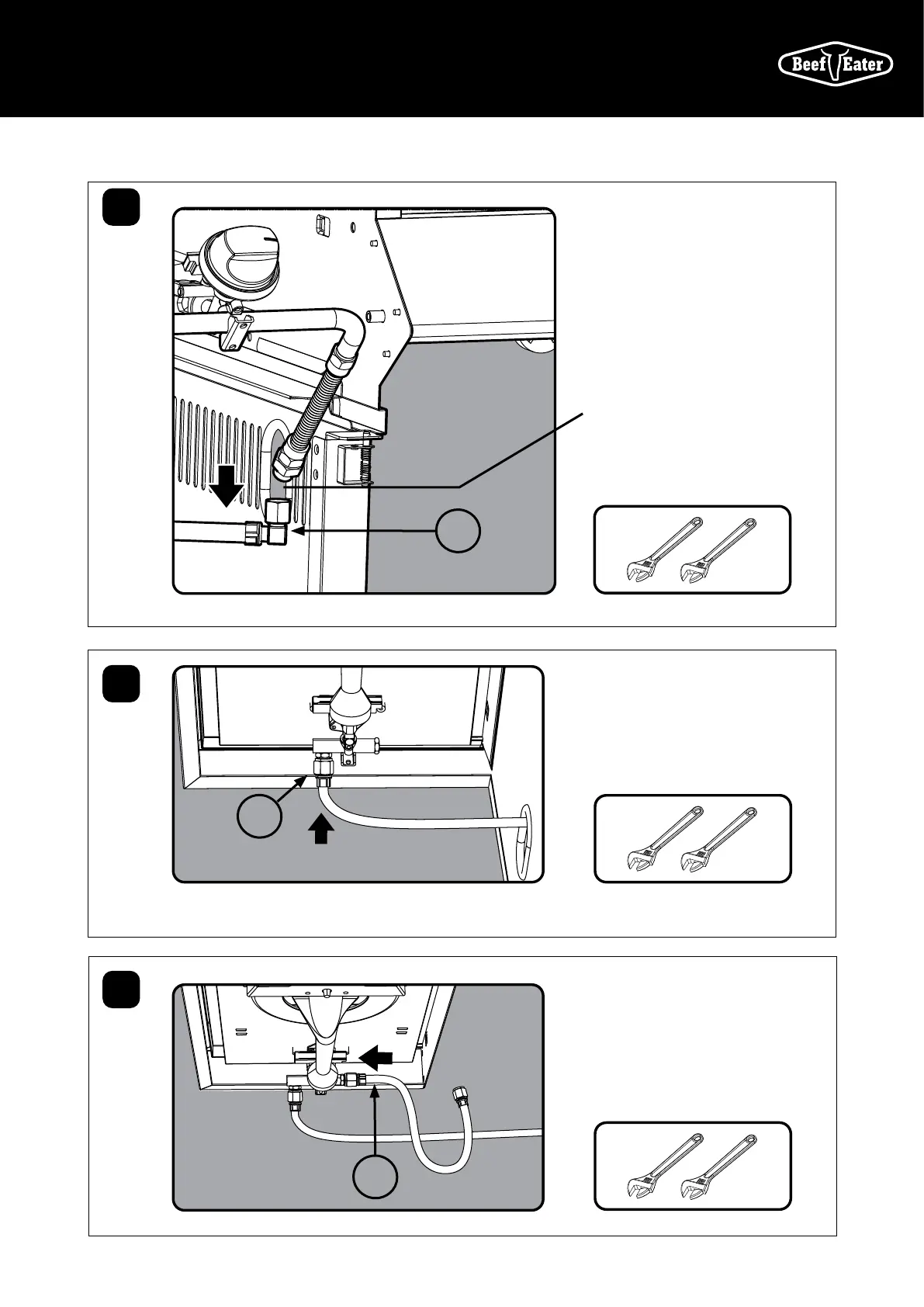

Then connect it to the side burner like

this (the 90 degree elbow must be on

outside as pictured on left):

Connect the gas hose and regulator

assembly (A) to the side burner

connection using 2 spanners.

For models without side burner and side table, do not disconnect the gas hose and skip steps 1-4 on page 19

VIEW FROM REAR

When connecting to side burner, remove

the regulator assy hose (A) as pictured

below left: 

Connect the gas hose (B) to the

remaining connection on the side

burner using 2 spanners.

CONNECTING THE SIDE BURNER

ASSEMBLING THE BARBECUE

Gas connection 3/8” SAE Flare with

5/8-18 UNF thread
