10

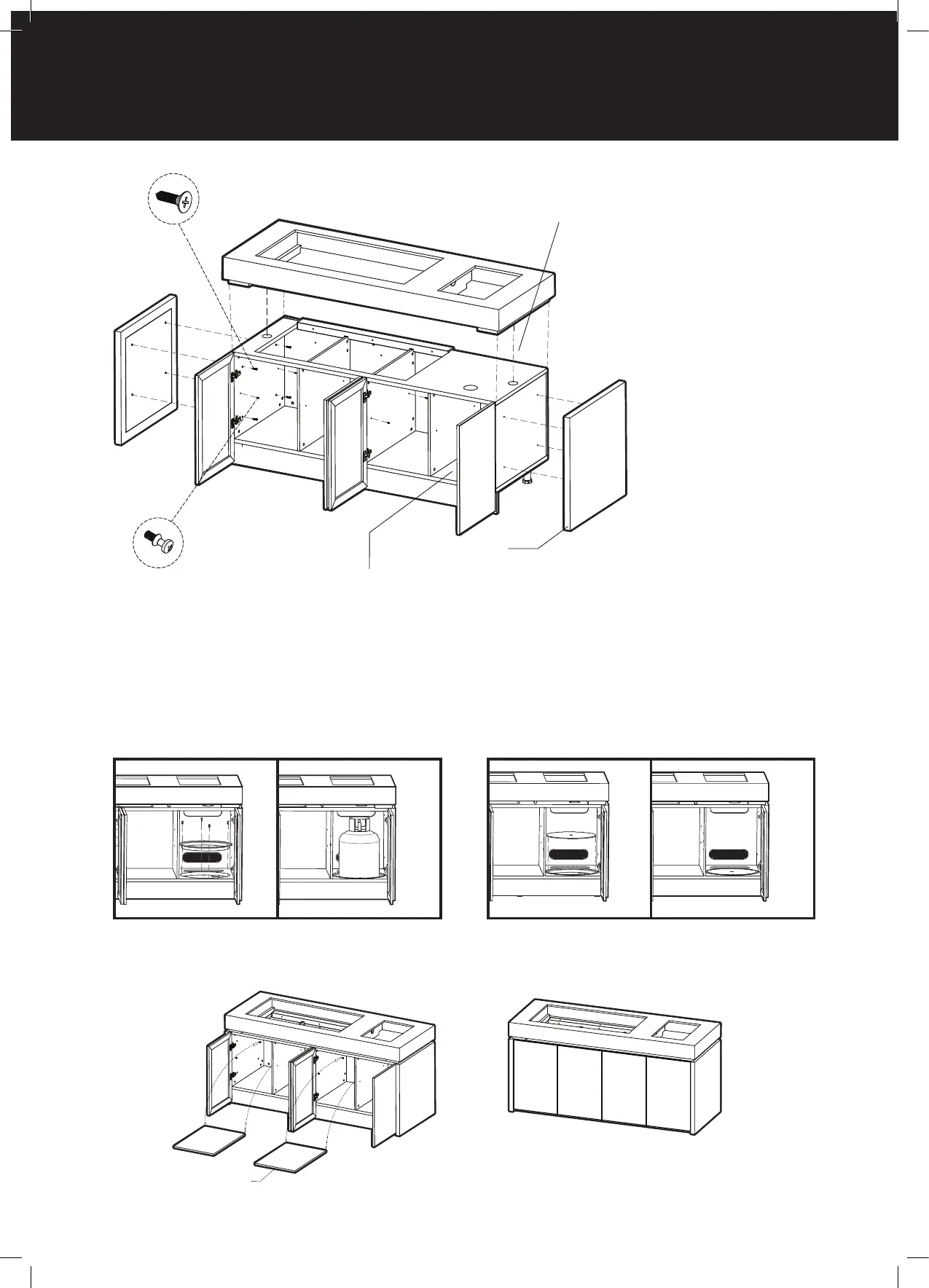

STONE ASSEMBLY
STONE ASSEMBLY
Waterfall
Shelf pin
Locate disc into hole
Assemble shelves
Completed unit
Optional LPG cylinder storage location if kitchen located in outdoor non-enclosed area - use LPG vented door kit
Part No. A18938401 available from BeefEater spare parts if the kitchen is installed in island configuration with
decorative back panels blocking the vents, or if the kitchen is pushed up against a back wall restricting the
ventilation. The vented door is required in these situations to ensure adequate cylinder ventilation for safe operation.
Use M4 x 30mm screw to fix the waterfall
3. Stone assembly
Waterfall
①
②
Shelf pin
Shelf
Locate disc into hole
Assemble shelves
Completed unit
Optional LPG cylinder storage location if kitchen located in outdoor non-enclosed area - use LPG vented door kit
Part No. A18938401 available from BeefEater spare parts if the kitchen is installed in island configuration with
decorative back panels blocking the vents, or if the kitchen is pushed up against a back wall restricting the
ventilation. The vented door is required in these situations to ensure adequate cylinder ventilation for safe operation.
Lorem ipsum
Use M4 x 30mm screw to fix the waterfall
3. Stone assembly
Waterfall
①
②
Shelf pin
Shelf
Locate disc into hole
Assemble shelves
Completed unit
Optional LPG cylinder storage location if kitchen located in outdoor non-enclosed area - use LPG vented door kit
Part No. A18938401 available from BeefEater spare parts if the kitchen is installed in island configuration with
decorative back panels blocking the vents, or if the kitchen is pushed up against a back wall restricting the
ventilation. The vented door is required in these situations to ensure adequate cylinder ventilation for safe operation.
Lorem ipsum
Use M4 x 30mm screw to fix the waterfall
Assemble shelves
Assemble cylinder ring
Screw cylinder ring to carcass base in position
with M4 x 16mm
If gas cylinder not used, the hole can be covered with ABS
cover supplied.
When assembling the
waterfalls to the cabinet,
the top of the waterfall
must be level with
the top of the cabinet,
and there must be
clearance between the
bottom of the waterfall
and the ground, adjust
the leveling legs as
required.
