BEFCO DR0-480 - Page 47

4Inner spacer for wheel (not shown)503-624B16
8Bearing 6205 ZZ000-6626A15
8Bolt SC M12-1.75x30 C8.8 N F007-711014
2Shaft with flange; #248647 & above4100030D
2Shaft with flange left; #248646 & below
22
502-365B
2Shaft with flange right; #248646 & below
21
502-366B13
2Wheel support block
20
(Drilling may be required)502-411B12
6Roll pin Ø10x50000-552211
2Wheel shaft (Drilling may be required)502-370B10
2Support wheel shaft (Drilling may be required)502-382B9
2Grease fitting M10-1.50503-500B8
2Set screw M10-1.50x20200-20187
4Nut ES M10-1.50 Z TH001-41066
2Wheel shaft502-371B5
4Inner cover502-373B4
4Complete wheel Ø15x600-6502-375B3
4Outer cover502-374B2
4Nut ES M16-2.00 Z TN004-11651
Qty.DescriptionPart #Ref.

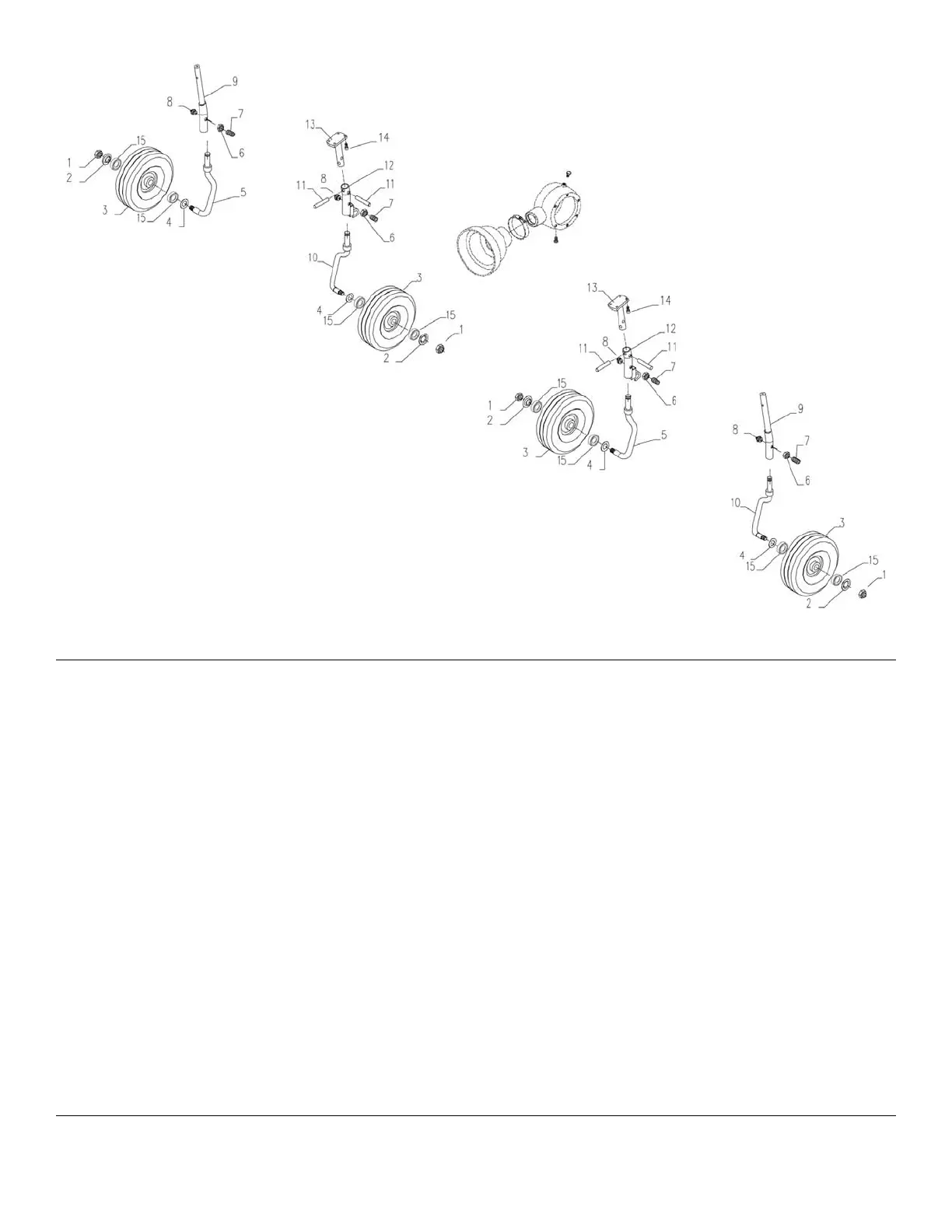

ROTARY TEDDERS WHEELS OPERATOR’S MANUAL
DR0-480
P
ARTS MANUAL 47 BEFCO
06/2009
22
Part no longer available. Serial #248646 & below must order part #4100030D & part #502-411B.
21
Part no longer available. Serial #248646 & below must order part #4100030D & part #502-411B.
20
Serial #248646 & below must also order part # 4100030D.
