1Washer, flat Ø10003-01578
1Bolt HH M10-1.50x50 C8.8 Z P003-03327
4Nut PT M12-1.75 C6 Z003-00646
4Washer, flat Ø12000-22655
4Bolt HH M12-1.75x50 C8.8 Z F003-00544
2Safety guard support bracket3000320D3
4Plastic cap 25x258900405D2
2Safety guard
25
8800035D1
Qty.DescriptionPart #Ref.

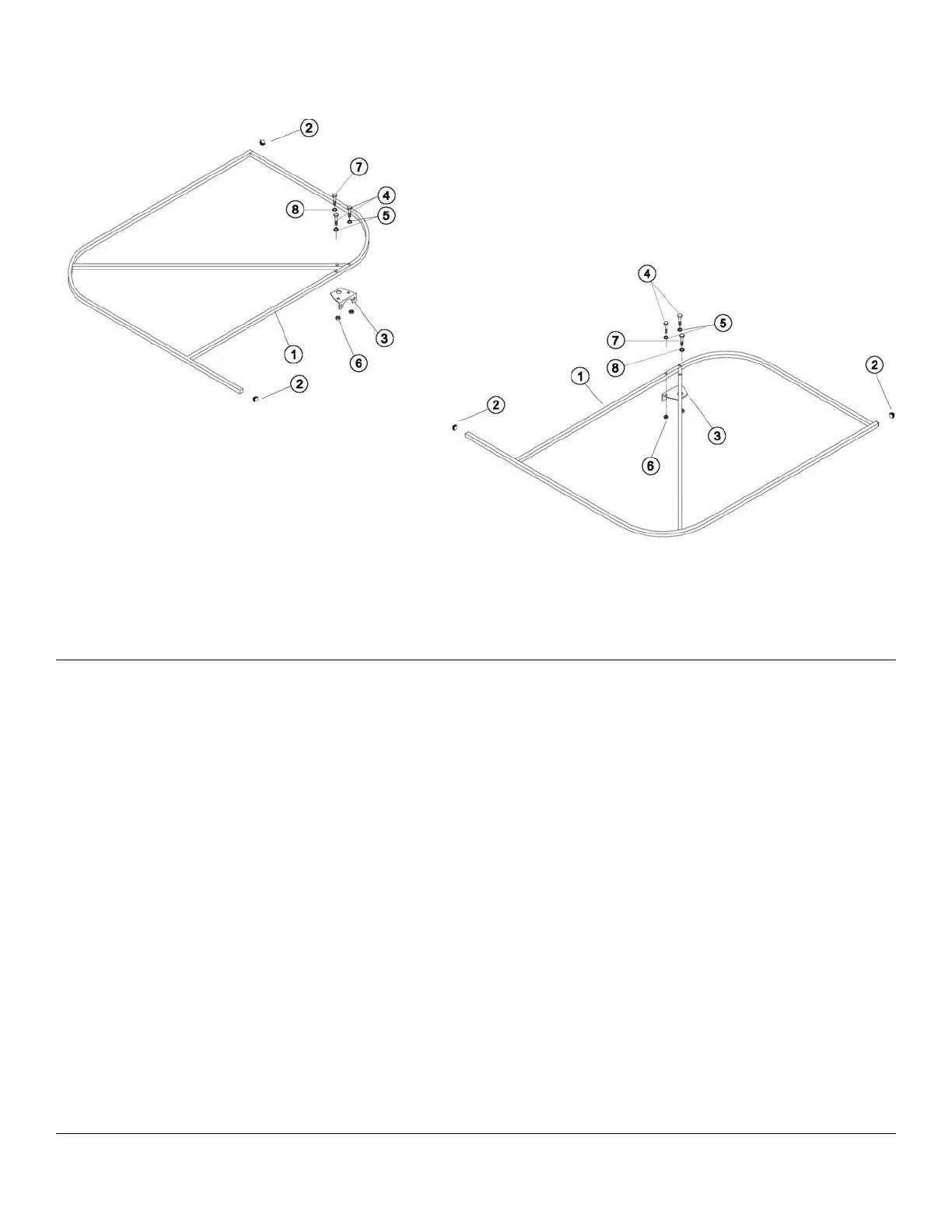

ROTARY TEDDERS SAFETY GUARDS OPERATOR’S MANUAL
DR0-480, DRP-480 SERIAL #248647 & ABOVE
PARTS MANUAL 49 BEFCO
06/2009
25
Serial # 246302 & below must also order part #3000320D (safety guard support bracket) and hardware when
replacing safety guard.
