Behlen WRSJ - Strip Joining Press Operation; Coil Feeding and Overlap; Cycle Activation and Automatic Stop

OPERATION FOR BEHLEN STRIP JOINER PRESS
STEP 1
FEED INCOMING EDGE OF COIL
INTO DIE AREA AS SHOWN IN
ILL. 1.1 OVERLAP MAY VARY
DUE TO THE NEED FOR MORE
ROWS OF STITCHES. STRIP
EDGES SHOULD BE NO CLOSER
THAN 1/2” (13MM) TO
STRIPPER PLATE POCKETS AS
SHOWN IN ILL. 1.2.
STEP 2
AFTER ALL CLEAR HAS BEEN
ANNOUNCED FOR SAFETY
PURPOSES, PRESS THE CLOSE
BUTTON(S) FOR CYCLE
ACTIVATION. THE MACHINE
WILL RUN THROUGH COMPLETE
CYCLE AND TURN OFF
AUTOMATICALLY.
STEP 3
JOG THE JOINED MATERIAL COIL
FOR LOCKING THE STITCHES.
F-18221-1
3
7-1-98

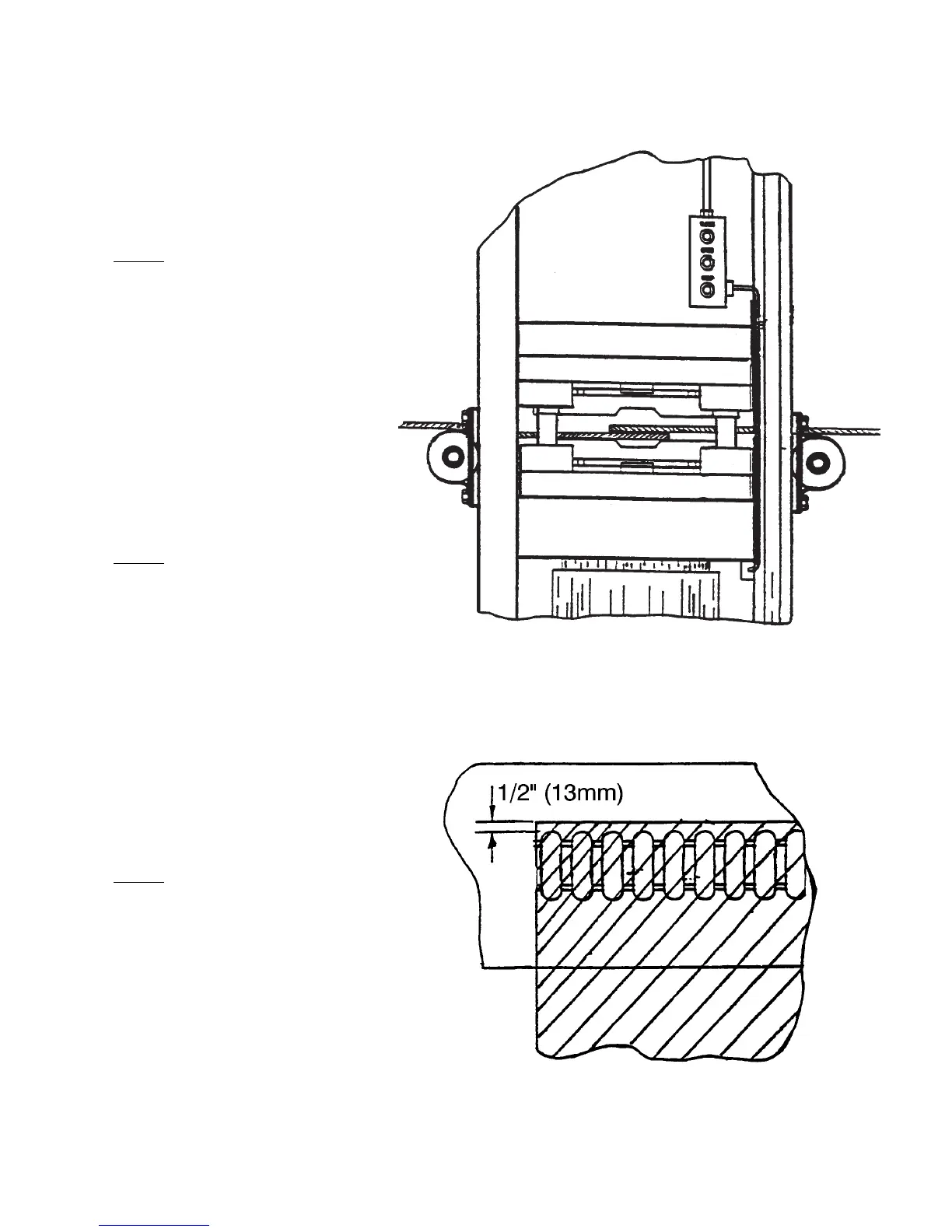

ILLUS. 1.2
