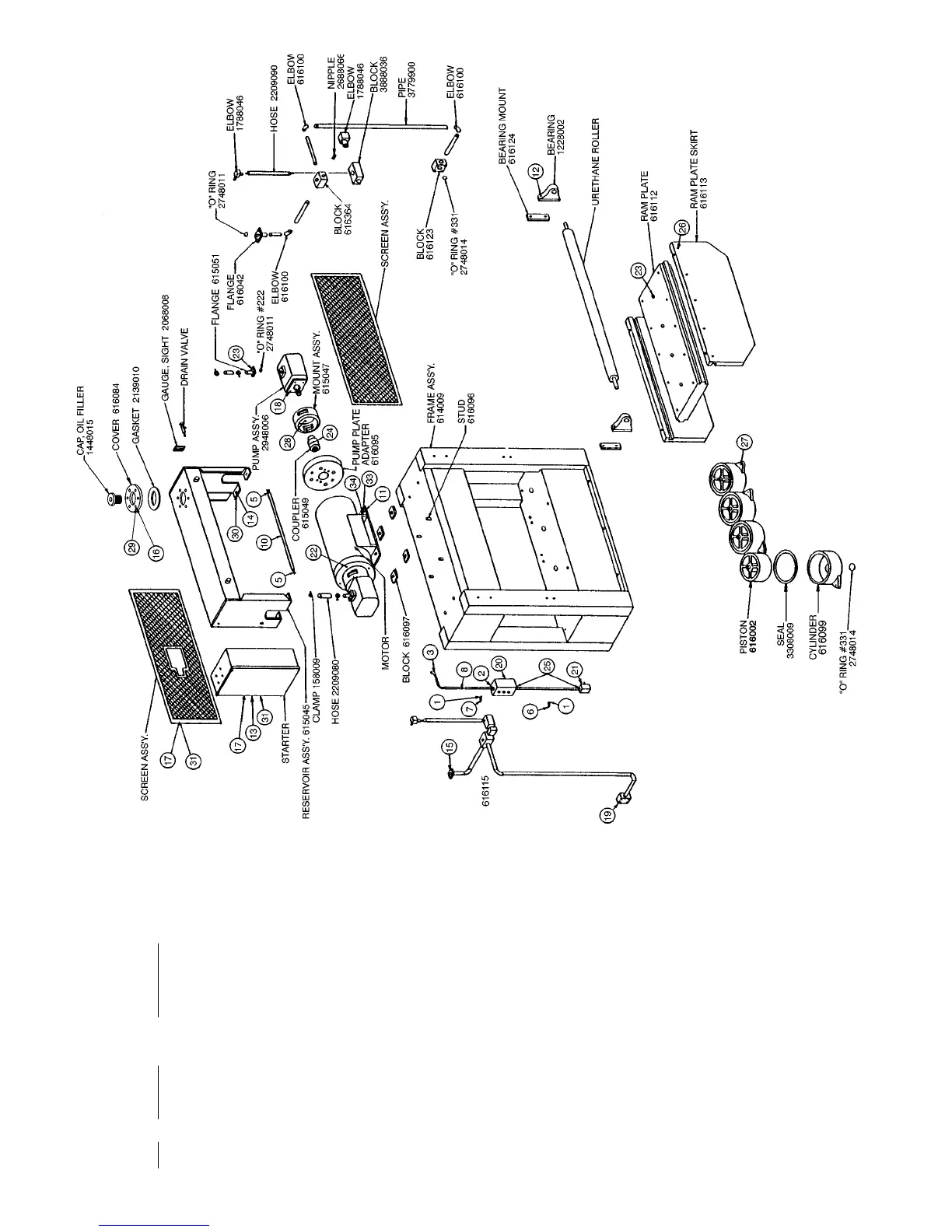

NU
MBERED PARTS
Ref.
Part No. Description
1 1328-092 Bolt, Rd. Hd. Stove ¼” x ½”
2 1588-028 Connector, ¾” St. Liquid Tight
3 1588-029 Connector, ¾” x 90° Liquid Tight
5 1588-065 Connector, 1½” x 90° Liquid Tight
6 1508-003 Clamp, ½” Conduit
7 1508-013 Clamp, 1” Conduit
8 1749-150 Conduit, ¾” Liquid Tight
9 1749-110 Conduit, ½” Liquid Tight
10 1749-160 Conduit, 1½ Liquid Tight
11 2688-022 Nut, Hex 5/8” NC
12 3188-039 Screw, Hex Hd. Cap ½” NC x 3”
13 2688-010 Nut, Hex 5/16” NC
14 3188-004 Screw, Hex Hd. Cap ½” NC x 1”
15 3248-037 Screw, Socket Hd. Cap 7/16”
16 3188-042 Screw, Hex Hd. Cap 5/16” NC x ¾”
17 3188-066 Screw, Hex Hd. Cap ¼” NC x ¾”
18 3188-036 Screw, Hex Hd. Cap ½” NC x ½”
19 3188-037 Screw, Hex Hd. Cap 7/16” NC x 3”
20 1328-099 Bolt, Rd. Hd. Stove 3/16” NC x 1”
21 3208-055 Screw, Slot Rd. Hd. 3/16” NC x 2”
22 3248-002 Screw, Socket Hd. Cap 5/8” NC x 2”
23 3188-037 Screw, Socket Hd. Cap 7/16” NC x 3”
24 3248-012 Screw, Socket Hd. Cap 5/8” NC x 3”
25 1588-015 Connector, 1/2” x 90° Liquid Tight
27 3248-026 Screw, Socket Hd. Cap 1” NC x 2”
28 3248-009 Screw, Scoket Hd. Cap 1/2” NC x 1/2’
29 3948-001 Washer, Wrought 5/16”
30 3948-002 Washer, Wrought ½”
31 3948-016 Washer, Wrought 1/4”
32 1788-030 Elbow, 1/2” x 90° Pulling
33 3948-028 Washer, Lock ½”
34 3948-019 Washer, Lock 5/8”
F-8550-5
6
Rev. 9-25-07 7-1-98
