STITCH HEIGHT ADJUSTMENT
Adjust the depth switch as required to produce a good joint. The switch has been preset at the factory for
the maximum material thickness you will run and, in most cases, will work for you. If adjustment of stitch
height has been deemed necessary, each full turn will move the stitch height 0.025” (0.64mm). Adjust until
satisfactory results are met. For a deeper stitch, turn adjustment wheel counter-clockwise. For a shallower-
stitch, turn adjustment wheel clockwise.

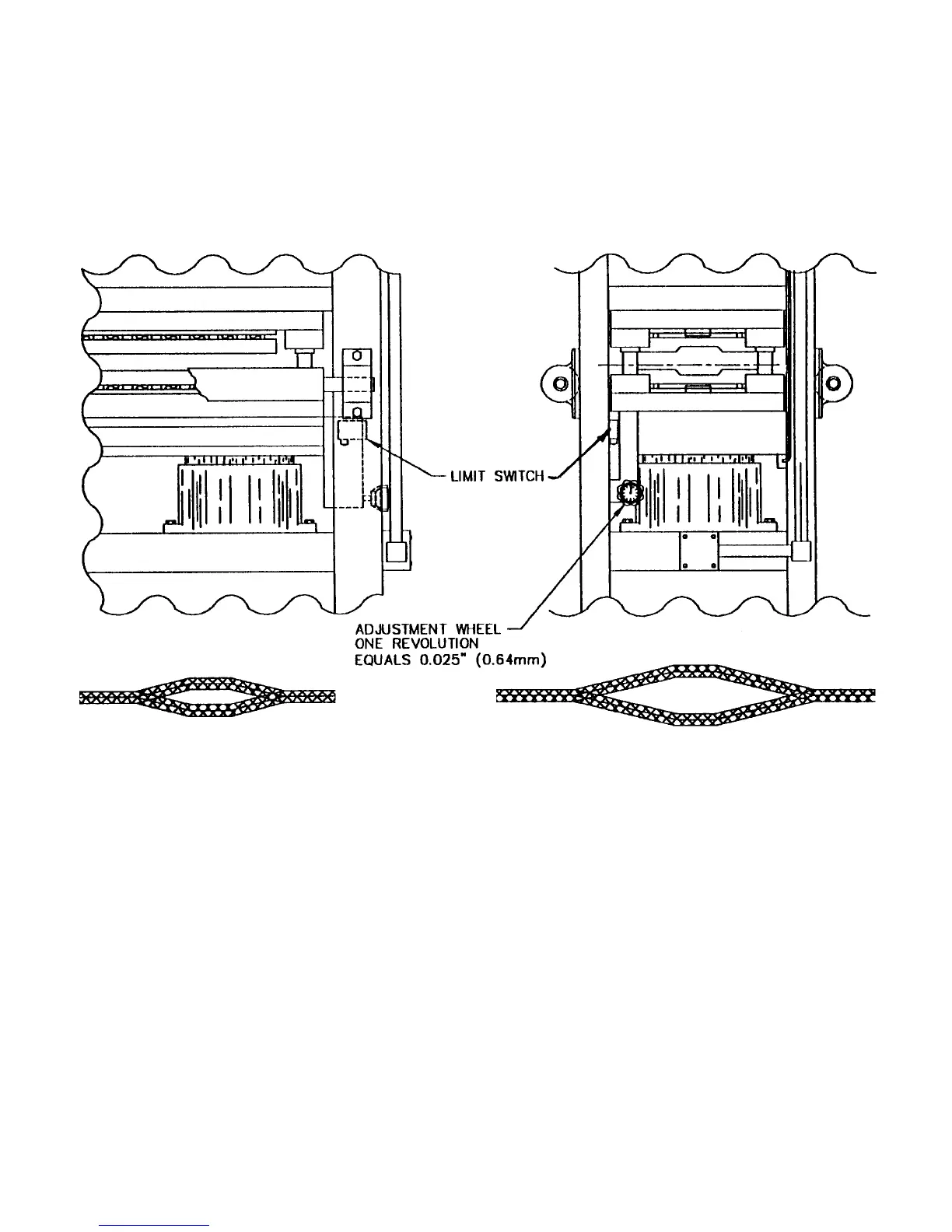

In this case, the stitch is incomplete.
Turn the adjustment wheel counter-
clockwise to make a deeper stitch.
In this case, the stitch is too deep causing
the material to fracture. Turn the adjustment
wheel clockwise to make a shallower stitch.
