EUROPOWER PMX2000
5. WIRING EXAMPLES

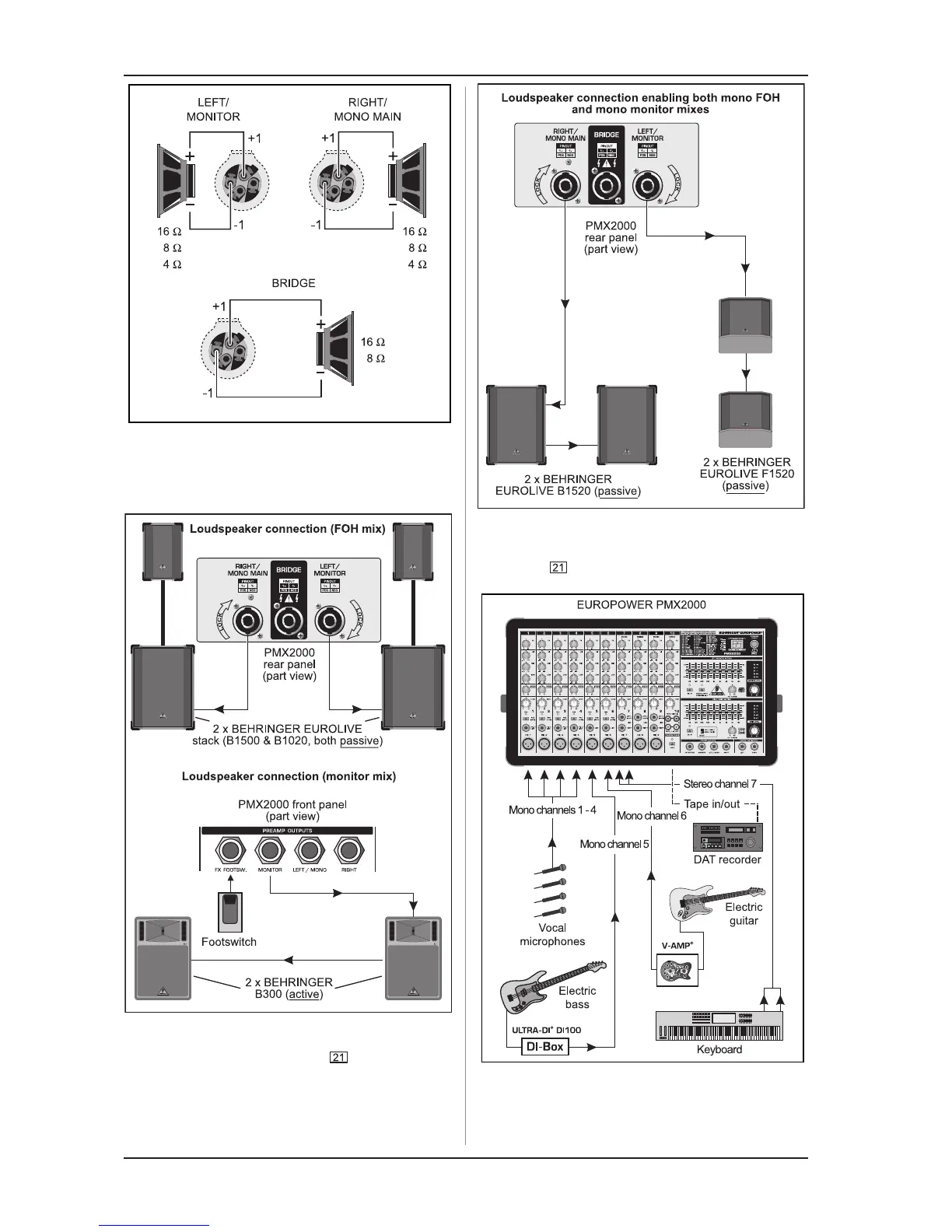

Fig. 4.6: PMX2000 SPEAKON
®
connector assignment
5. WIRING EXAMPLES
Fig. 5.1: PMX2000 as stereo amplifier (example)
 Please set the MODE switch to “LEFT/RIGHT”
for this application!
Fig. 5.2: PMX2000 as double mono amplifier (example)
 For this application, however, please set the MODE
switch to “MON/MAIN”!
Fig. 5.3: Standard setup (example)
