7
MINIAMP AMP800
DEUTSCH
2. CONTROL ELEMENTS
BALANCE control: To adjust the stereo image of a signal, turn this control toward L (left) or,
alternatively R (right).
A + B meter: To monitor the combined level of both signals (A and B), use this meter. An LED
glows next to the value that identifies the combined level (-24 dB to 0 dB). If the signal is too
strong, the CLIP LED glows. Most of the time, the optimal level is 0 dB (a full signal).
For each Headphone Channel (1, 2, 3, and 4), the front panel includes control elements through
. To manage each Headphone Channel, use these control elements:
(headphone) connector: To connect a headphone, use this stereo, ¼" TRS connector. For
details about TRS plugs, see 4. AUDIO CONNECTIONS.
INPUT button: To select an Input Channel, push this button. When you listen to:
V Input Channel A, this button is not pushed in and not lit
V Input Channel B, this button is pushed in and lit
PHONES LEVEL control: To adjust the level of a headphone signal, turn this control toward 0
(minimum volume) or, alternatively 6 (maximum volume).
CH meter: To monitor the level of a headphone signal, use this meter. An LED glows next to
the value that identifies the headphone volume (-24 dB to 0 dB). If the signal is too strong, the
CLIP LED glows. Most of the time, the optimal volume is 0 dB (a full signal).
(power) button: To turn the AMP800 on and off, push this button. When you turn the AMP800:
V on, this button is pushed in and lit
V off, this button is not pushed in and not lit
When you finish using the AMP800, unplug the power supply unit from the power source.
As long as the power supply unit is connected to a power source, the power supply unit
consumes energy.
2.2 Rear panel
This section describes how to use the rear panel to set up the AMP800.

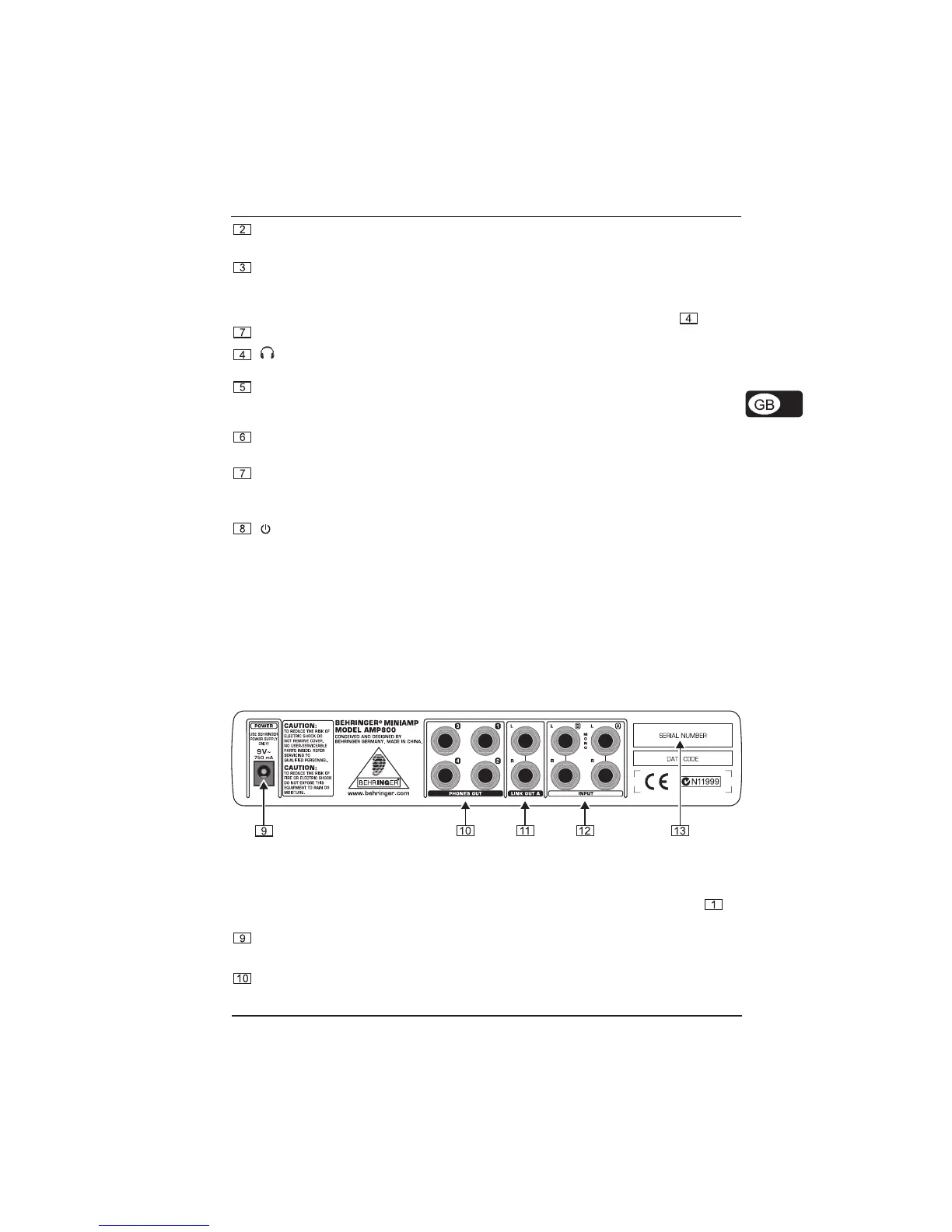

The following illustrates the rear panel of the AMP800:
Fig. 2.2: AMP800 rear panel
In the previous illustration, each control element is associated with a callout, for example . In
this section, use these callouts to identify details about each control element:
POWER connector: To power the AMP800, connect the power supply unit to this connector.
This power supply unit is delivered with the AMP800.
PHONES OUT connectors: For each Headphone Channel (1, 2, 3, and 4), the rear panel
includes an additional headphone connector, which is a stereo, ¼" TRS connector.
