MINIAMP AMP800
3. SETUP EXAMPLE
LINK OUT A connectors: If you need more than the 4 Headphone Channels that a single
AMP800 provides, connect these balanced, ¼" TRS connectors (Left and Right) to the inputs
of another AMP800. The LINK OUT A connectors send only the signal of Input Channel A,
without any LEVEL or BALANCE settings.
INPUT connectors: For each Input Channel (A and B), the rear panel includes 2 balanced,
¼" TRS connectors (Left and Right). Connect them to the outputs of a mixer, a CD player, or
a soundcard. For mono signals, use only the L connector.
If the output is balanced and you insert unbalanced, ¼" TS plugs in the INPUT connectors,
the signal level will decrease 6 dB. To raise the signal level, use the relevant LEVEL
control ( ).
SERIAL NUMBER: To register the AMP800, use this unique serial number.
For details about TS and TRS plugs, see 4. AUDIO CONNECTIONS.

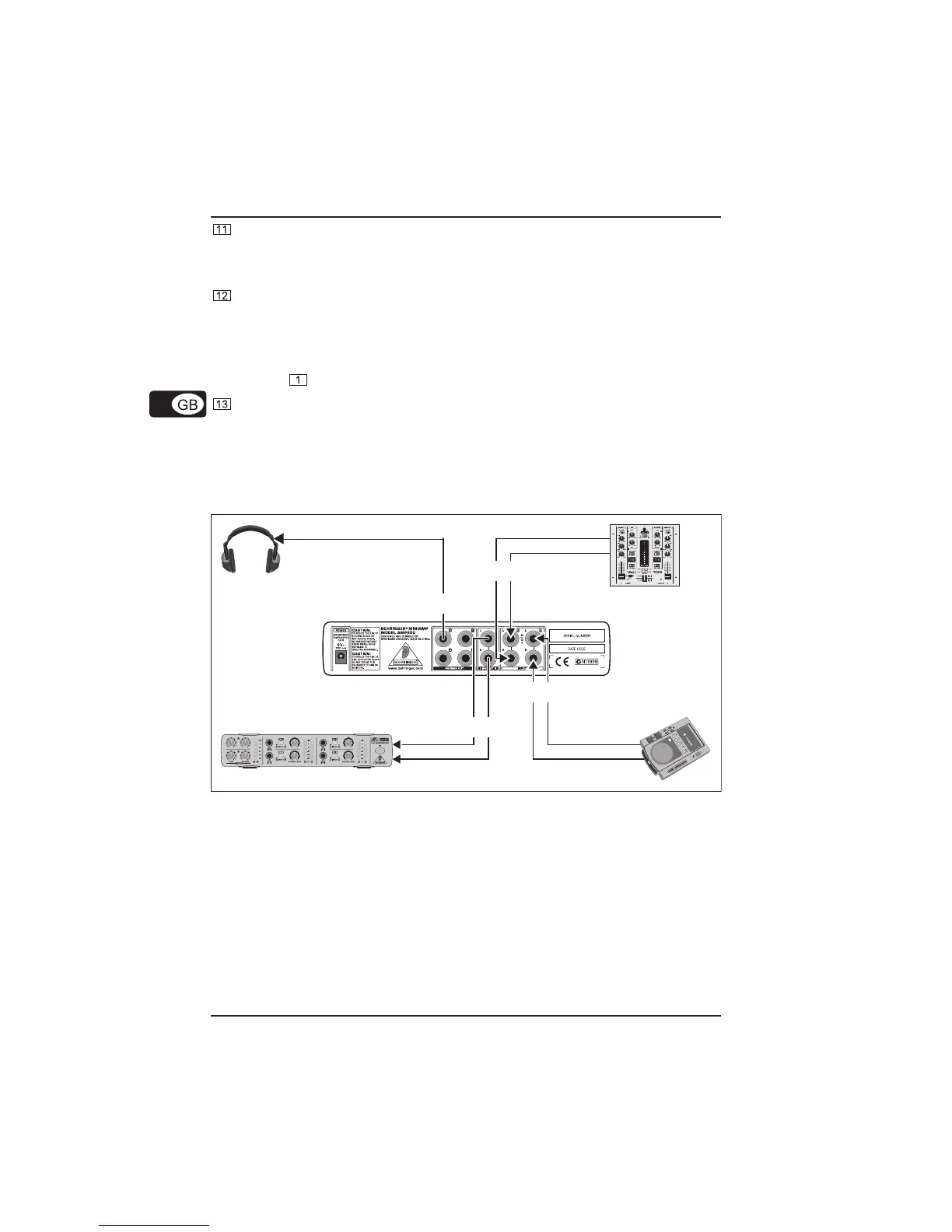

3. SETUP EXAMPLE
The following example illustrates the role of the AMP800 in your audio setups:
MINIAMP AMP800
MINIAMP AMP800
PRO MIXER VMX100
CD Player
L & R Input
L & R Input
L & R Link Out A
Phones Out
Fig. 3.1: Setup example
About setting up with other MINI products
The AMP800 belongs to the MINI suite of BEHRINGER products. You can set up the AMP800 with
these products. For details, see 6. OTHER MINI PRODUCTS.
