9 EURORACK PRO RX1602 User Manual
3.4 Small live setup
Compact and powerful, feature-rich equipment is optimal for musicians who
spend a lot of their time on the road. Fig. 3.4 shows an example of a compact
solution for keyboard and vocal amplication, whereby a singing guitar player or
an additional musician can easily be integrated into the mix.
B-2 PRO
ULTRAGAIN PRO MIC2200
COMPOSER PRO-XL MDX2600
EURORACK PRO RX1602
Keyboard
EUROPOWER EP2000
Main
outputs
L R

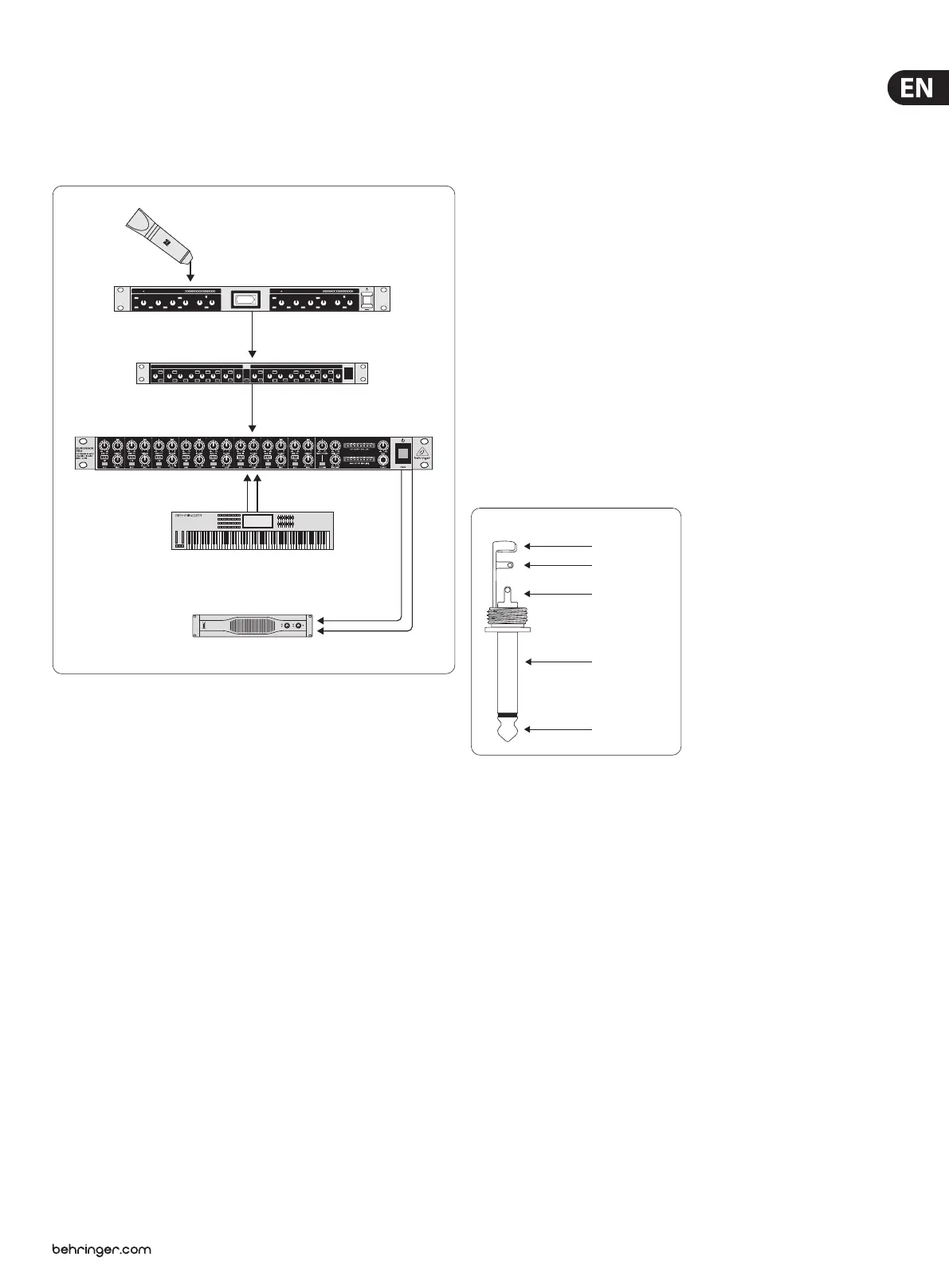

Fig. 3.4: Expandable small live setup
4. Installation
4.1 Rack mounting
The BEHRINGER EURORACK PRO RX1602 requires one height unit (1 HU) forbeing
installed into a 19" rack. Please allow at least an extra 4" of space for the
connectors on the rear panel.
Also, please make sure that sucient ventilation of the unit is provided
for, andnever put the rack mixer onto an amp or similar equipment to
avoidoverheating.
Please use M6 machine screws and nuts to install your RX1602 into a rack.
4.2 Audio connections
You will require several types of cables for the various kinds of connections
possible. The following illustrations show you how to wire dierent cables.
Always use high-quality cables.
The audio inputs of the RX1602 are electronically balanced to avoid
humproblems.
Of course, you can also connect equipment featuring un-balanced outputs.
Tothis end, use either mono jacks or connect ring and sleeve of the stereo jack
(bridge pin 1 and pin 3 when using XLR connectors).
strain relief clamp
sleeve
tip
sleeve
(ground/shield)
Unbalanced ¼" TS connector
tip
(signal)
Fig. 4.1: ¼" TS connector

Behringer RX1602 Specifications

General

Type	Line Mixer
Channels	16
Rackmountable	Yes
Phantom Power	No
Weight	5.5 lbs
Inputs	16 Line Inputs (1/4" TRS)
