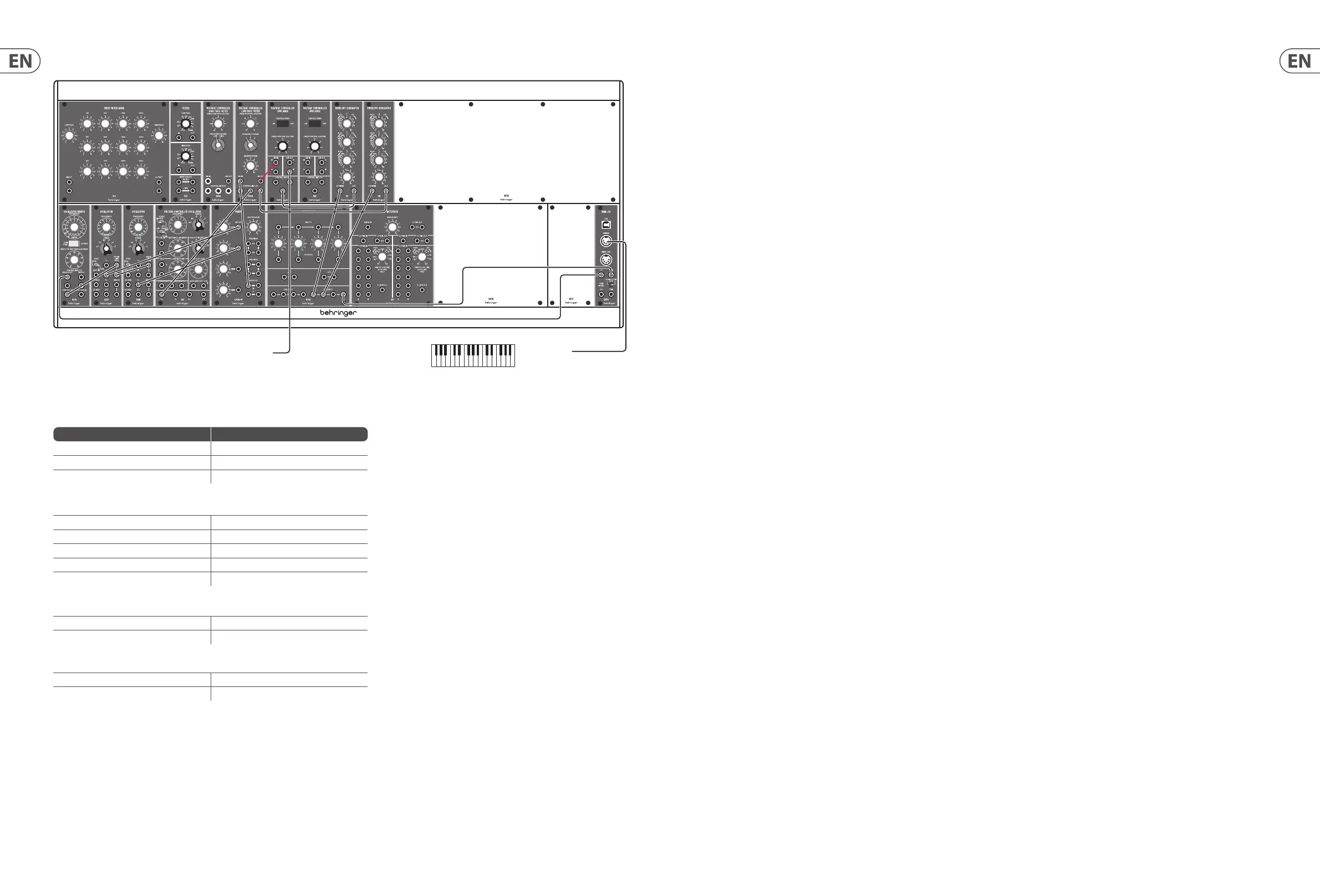

8 SYSTEM 15 Quick Start Guide 9

Percussive Lead

A simple, two oscillator lead sound with a hard front end and timbral development which is also suitable for melodic sequencing

Voltage Control (pitch)

Source Destination

External MIDI Keyboard – MIDI Out CM1A MIDI Interface MIDI In

CM1A CV Out via Multiple 921A Frequency Input

921A Frequency Output 921B Frequency Link (in series)

Audio

1st 921B Triangle wave Output CP3A-M mixer Input 1

2nd 921B Sawtooth wave Output CP3A-M mixer Input 2

CP3A-M Output 904A Signal Input

904A Signal Output 902 VCA

902 Signal Output Your Mixer/Amplier/DAW

Voltage Control (Amplitude)

CM1A s-trigger out via Multiple 2 x 911 s-trigger Input

1st 911 Output 902 Control Input

Voltage Control (Modulation)

921 Sine Wave Out 904A Control Input

2nd 911 Output 904A Control Input

This sound uses two 921B VCOs, with dierent waveforms, and sounds best if one is slightly detuned. They both feed the 904A LPF, and their relative levels can be

adjusted with the CP3A-M mixer as required. The 904A’s output is fed to a 902 VCA, whose amplitude is controlled by the 1st 911 EG

To obtain the percussive edge the 911’s settings should be T1 (attack) 2ms, T2 (decay) 200ms, T3 (release) 200ms, E sus(tain) 4 seconds

The 904A is modulated by a slow sine wave from the 921 LFO and by the 2nd 911 EG, which should have settings around T1 (attack) 1 second, T2 (decay) 50ms,

T3 (release) 4 seconds, E sus(tain) 9

MIDI OutTo mixer/amplier/DAW
