Behringer TUBE ULTRAGAIN MIC200 User Manual

20 TUBE ULTRAGAIN MIC200 User Manual

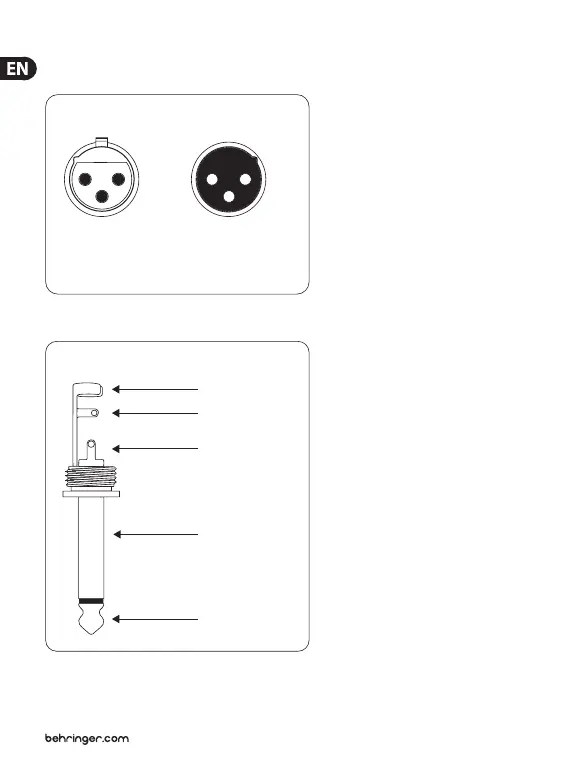

4. Audio Connectors
output
For unbalanced use,
pin 1 and pin 3
have to be bridged
1 = ground/shield
2 = hot (+ve)
3 = cold (-ve)
input
12
3
1
2
3
Balanced use with XLR connectors
Fig. 4.1: XLR connectors
strain relief clamp
sleeve
tip
sleeve
(ground/shield)
Unbalanced ¼" TS connector
tip
(signal)
Fig. 4.2: ¼" TS connector

Behringer TUBE ULTRAGAIN MIC200 Specifications

General

Type	Pre-amp
Proper use	-
Product color	White
Frequency range	10 - 55000 Hz

Weight and Dimensions

Width	135 mm
Height	64 mm
Weight	500 g
