VINTAGER AC112
+ Please make sure that all your equipment is grounded at all times. For your own protection,
you should never tamper with the grounding of the cable or the unit itself. The unit shall
always be connected to a mains socket outlet with a protective earthing connection.
The MIDI connection (IN) is made over standardized DIN plug-in connectors. An optocoupler has been used for
isolated data communications.
You will find additional information in chapter 5 INSTALLATION.
1.3 Control elements

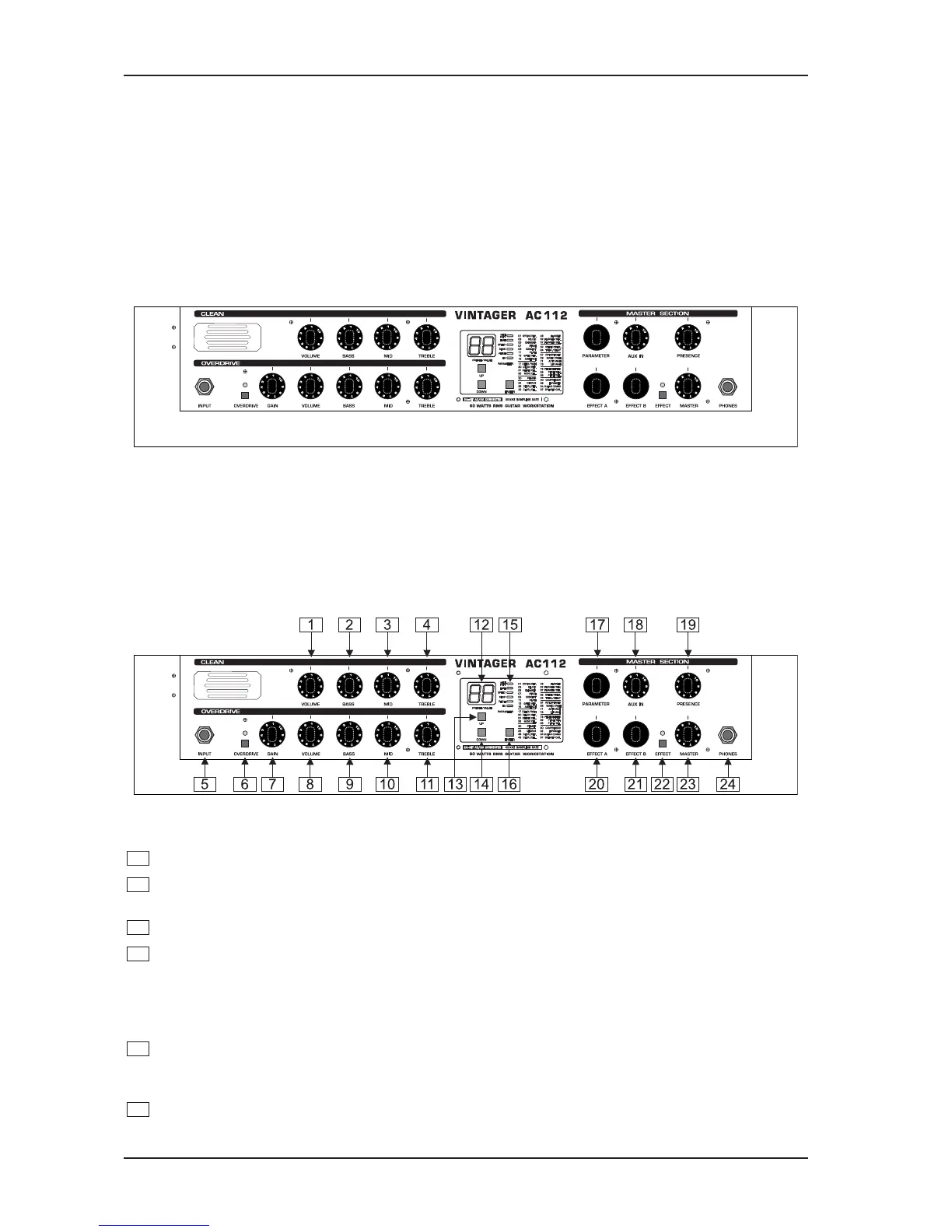

Fig. 1.1: The front panel of the VINTAGER
The BEHRINGER VINTAGER AC112 features 15 controls, five push-buttons and one 2-digit, 7-segment LED
display on its front panel. Additionally, there are two 1/4" jacks for input and headphones.
1.3.1 Front panel
Fig. 1.2: The front panel control elements
1
The CLEAN channels VOLUME control sets the volume for the clean channel.
2
The BASS control in the EQ section allows you to boost or cut the bass frequencies in the CLEAN
channel.
3
With the MID control you can boost/cut the midrange frequencies in the CLEAN channel.
4
The TREBLE control adjusts the CLEAN channels upper frequency range.
+ Please note that with all three EQ controls in the CLEAN channel set fully to the left, there will
be no signal sent to the speaker, which is due to the classical and extremely efficient EQ
circuit used in the VINTAGER.
5
INPUT is the VINTAGERs 1/4" jack input for your guitar. Use a commercial 1/4" jack mono cable (no
DIY, better ask your specialized dealer), with good mechanical and electrical shielding, so as to avoid
unpleasant surprises during rehearsals or concerts.
6
Press the OVERDRIVE button to select the CLEAN or OVERDRIVE channel. When OVERDRIVE is
on, the corresponding LED lights up.
