X-TOUCH MINI MIDI MAP X-TOUCH MINI RX MIDI DATA
(EN) This RX MIDI data table shows what can get controlled and changed from outside (via MIDI receive) independent of the X-TOUCH
editorsoftware.
(ES) Esta tabla de datos RX MIDI le indica qué puede controlar y modi car desde el exterior (a través de datos MIDI recibidos)
independientemente del programa editor X-TOUCH.
(FR) Ce tableau de données RX MIDI indique les fonctions pouvant être contrôlées et modi ées de manière externe
(par réception de messages MIDI) indépendamment de l’éditeur X-TOUCH.
(DE) Diese RX MIDI-Datentabelle zeigt, was man unabhängig von der X-TOUCH Editorsoftware von außen (via MIDI Receive)
steuern und ändern kann.
(PT) Esta tabela de dados RX MIDI mostra o que pode ser controlado e modi cado de fora (através de MIDI receive)
independentemente do software editor X-TOUCH.
Function RX CH RX Command RX value
Operation Mode Select GLOBAL CH CC 127
0 = Standard Mode, MC Mode LED o
1 = MC Mode, MC Mode LED on
2-127 = ignored
Preset Layer Change GLOBAL CH Program Change
ONLY in Standard Mode (see above):
0 = Layer A, A-button LED on
1 = Layer B, B-button LED on
2-127 = ignored
LE
D Ring
Behavior Change
GLOBAL CH
Encoders 1-8:
CC 1 – CC 8
0 = Single
1 = Pan
2 = Fan
3 = Spread
4 = Trim
5-127 = ignored
LED Ring
Remote Control
(Value Change)
GLOBAL CH
Encoders 1-8:
CC 9 – CC 16
0 = all LEDs o
1-13 = LEDs 1 (left) – 13 (right) on
14-26 = LEDs 1 (left) – 13 (right) blinking
27 = all LEDs on
28 = all LEDs blinking
29-127 = ignored
Buttons LED
Remote Control
GLOBAL CH
Upper Row 1-8:
Note 0 – Note 7
Lower Row 9-16:
Note 8 – Note 15
Layer A, B LEDs:
Not assignable; only
1 of
2 LEDs lights if Standard
mode selected (see above
“Preset Layer Change”)
Note o or Note on with Velocity 0: Button
LED o
Note on with Velocity 1: Button LED on
Note on with Velocity 2: Button LED blinking
Note on with Velocity 3-127: ignored

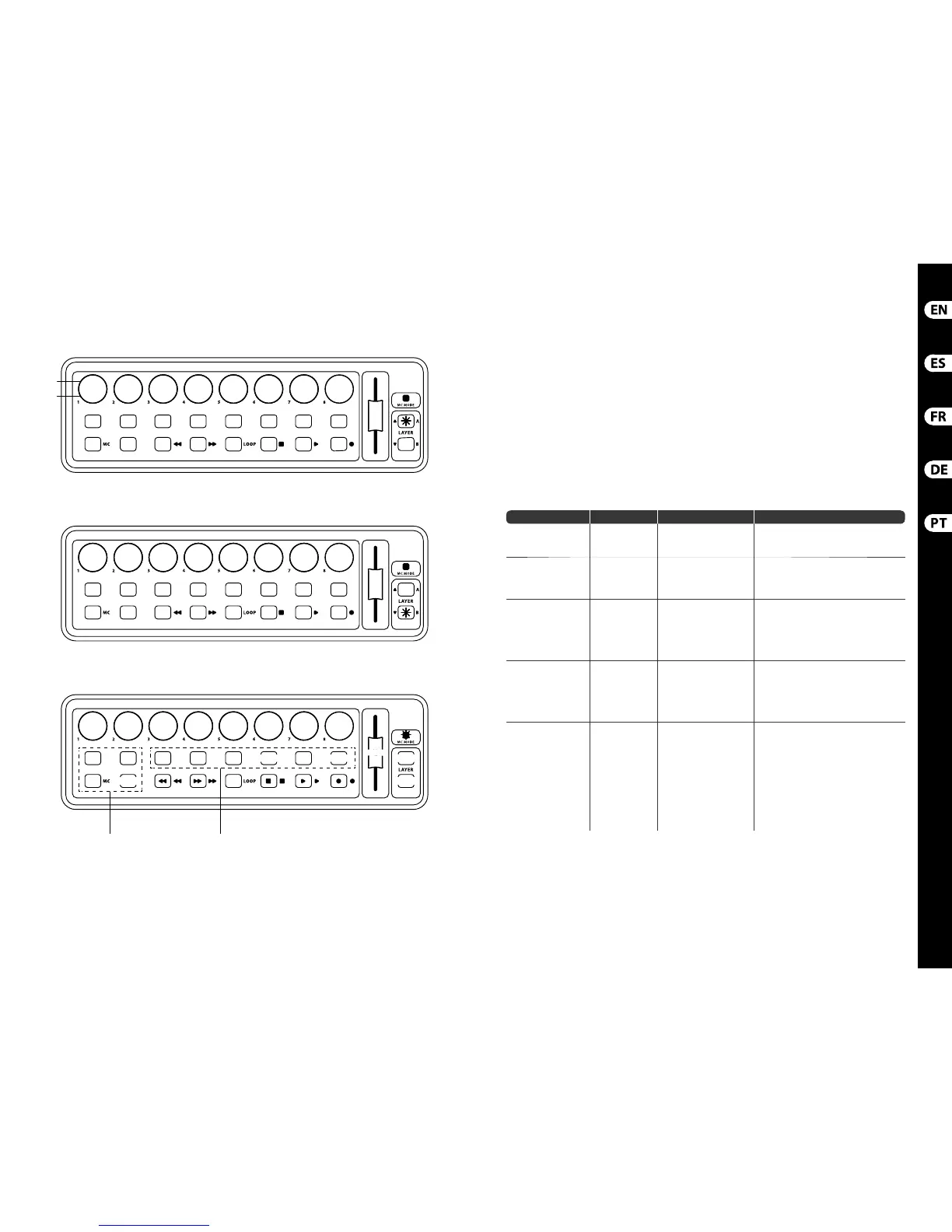

PRESET A (MIDI Channel =11)
MC MODE
Transport functions VPOT Assignment
PRESET B (MIDI Channel =11)
Turn
Push
CC10
CC11 CC12 CC13 CC14 CC15 CC16 CC17 CC18
G#0
A0 A#0 B0
C1
C#1 D1
D#1
E1 F1 F#1 G1
G#1 A1 A#1 B1
C0 C#0 D0 D#0 E0 F0 F#0 G0
MASTER
MARKER
NUDGE
VPOT1 VPOT2 VPOT3 VPOT4 VPOT5 VPOT6 VPOT7 VPOT8
CLICK
SOLO TRACK SEND PAN PLUG-IN EQ
INSTRUMENT
DROP
CYCLE
REPLACE
CC9
CC1 CC2 CC3 CC4 CC5 CC6 CC7 CC8
G#-2 A-2 A#-2 B-2
C-1
C#-1 D-1 D#-1
E-1 F-1 F#-1 G-1 G#-1 A-1 A#-1 B-1
C-2 C#-2 D-2 D#-2 E-2 F-2 F#-2 G-2
16 X-TOUCH MINI 17 Quick Start Guide

Behringer X-TOUCH MINI Specifications

General

Knobs color	Black
Control type	Buttons, Rotary, Slider
Backlight buttons	Yes
MIDI-keyboard number of keys	- keys
Power source type	USB
Power consumption (typical)	1.26 W

Weight and Dimensions

Depth	102 mm
Width	325 mm
Height	47 mm
Weight	500 g
