Beijer Electronics CIMREX 5 User Manual

English
Beijer Electronics AB, MA00557F 1-3

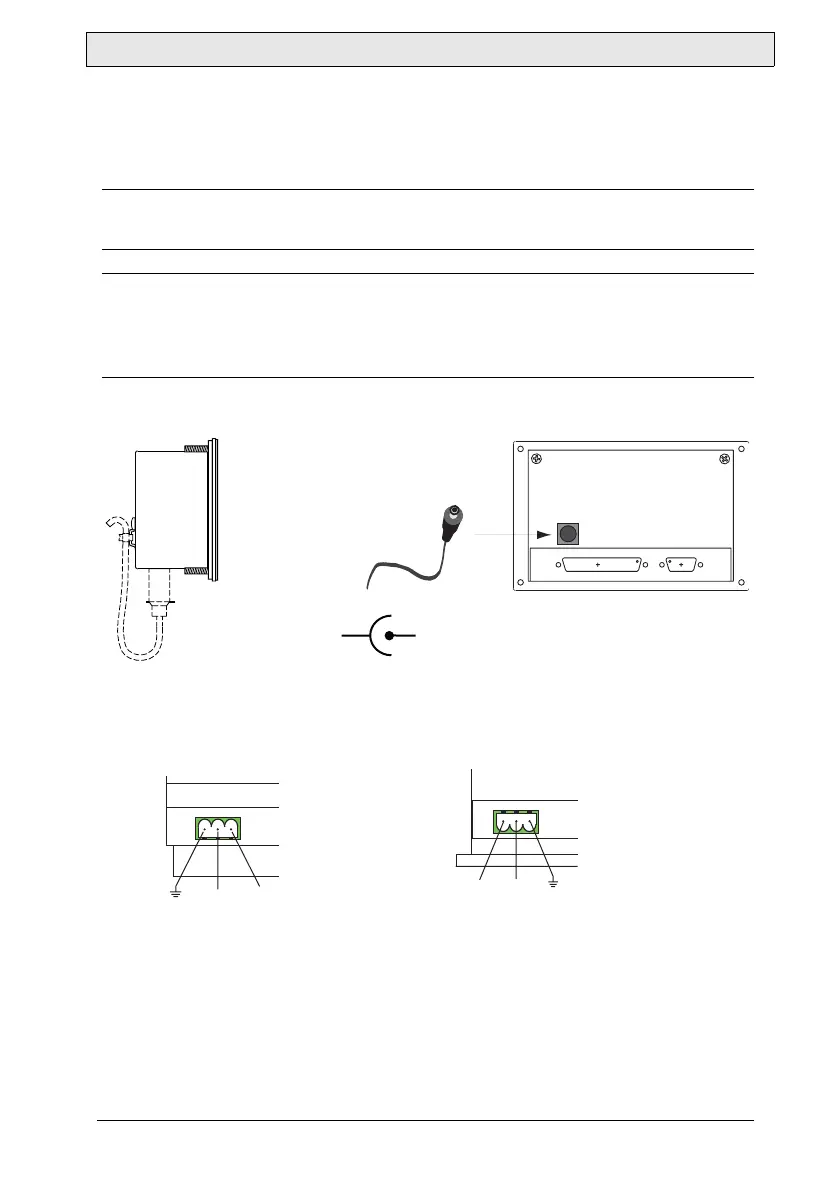

Installation
Voltage requirements
CIMREX 5 CIMREX 10
CIMREX 12, 20, 30, 41, 60, 70 CIMREX 67, 69, 69T
Maximum length of 24 V DC power supply cable is 10 meters.
CAUTION!
Do not apply reverse voltage, it can cause permanent damage.
CAUTION!
Ensure that the terminal and the controller system have the same electrical
grounding (reference voltage level), otherwise errors in communication may
occur.
0 V DC
+5 V DC
0 V +24 V
0 V
+24 V
Ground
Ground
