Operator Panel Drawings

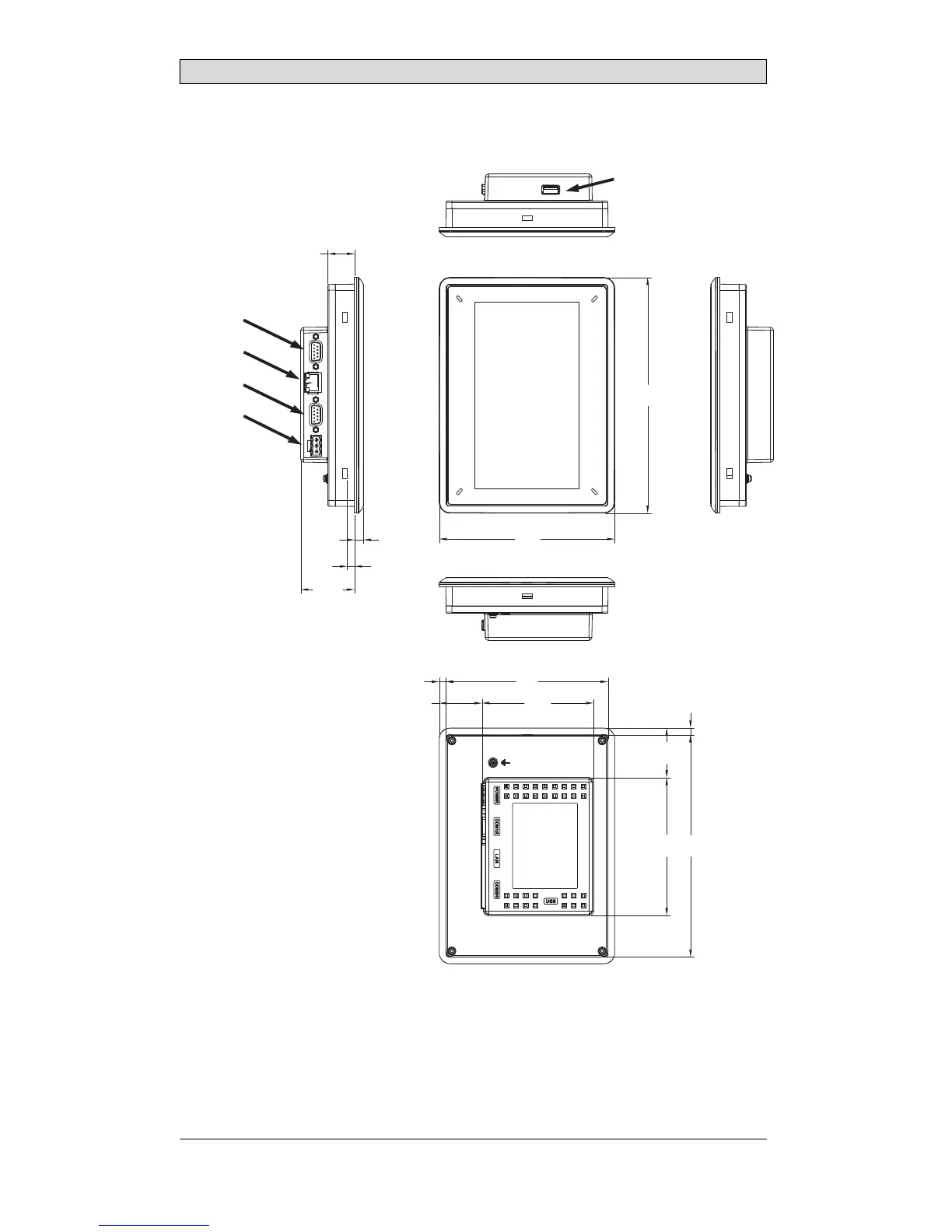

5.3 X2base7Outline
C
B
E
D
A
22.2
7.5
44.7
Max. 6.0
196
146
5.5
35.6
135
92.8
5.5
41.1
114.8
185
[mm]
A.USB Host
B. COM3 / COM4
C. Ethernet
D. COM1 / COM2
E. 24V DC
BeijerElectronics, MAEN181B
17
