BeingHD VPX-500 - Specification; Video Inputs; Video Outputs; Function Description

2
1

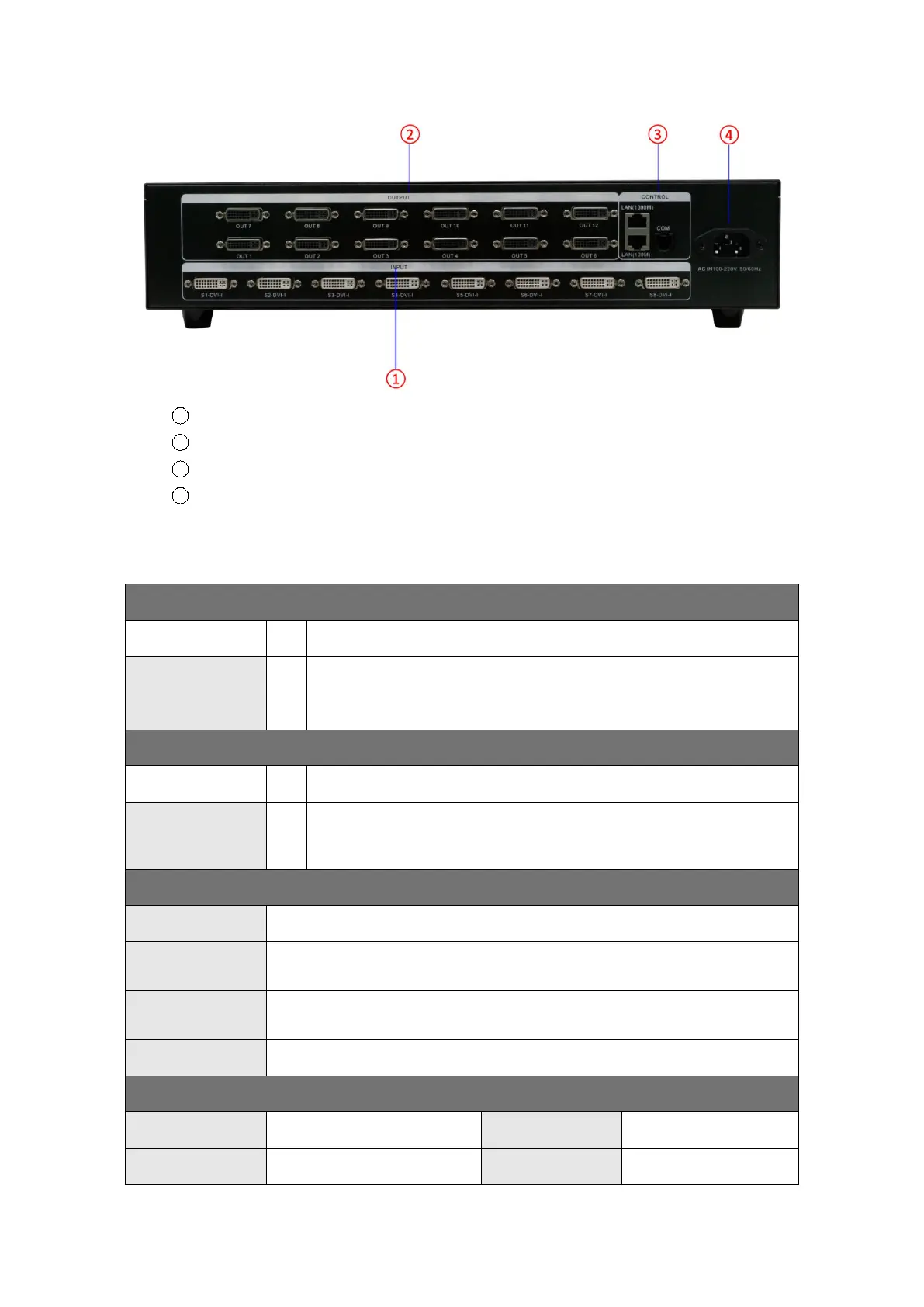

INPUT: 8 DVI-I input ports (Compatible with DVI/HDMI/VGA/CVBS)
2
2OUTPUT: 12*DVI output ports
3
CTRL: Control port which contains LAN (100M), LAN (1000M), COM (serial port)
4 POWER: Power supply port, AC 110-220V 50/60Hz
3. Specification
Video Inputs
Type
Qty
Description
DVI-U
8
Support up to 1920×1200@60Hz, downward compatibility.
Support DVI/HDMI/VGA/CVBS with different connectors
Compatible with HDMI1.3 and lower version, EDID version 1.3
Video Outputs
Type
Qty
Description
DVI-D (24+1)
12
Resolutions: 1024×768@60Hz till 1920×1080@60Hz
Support 60Hz/50Hz/30Hz output frame rates
Function Description
Outputs
12 outputs support splicing mode of arbitrary form, such as: 3
×
4, 2
×
6 etc.
8 layouts/windows
Up to 8 windows or layouts in total
Each layout can be freely zoomed and adjusted. Images can overlap each other.
1000M Preview
The signal image can be gained on computer at real time by control software
which includes both input signal and output signal
Switching Effect
When switching signals or user-modes, users can set up different effects and time
Others
PC Control
RS232/RJ45 Ethernet
Dimension
440x290x90mm
Weight
5.4kg
Input Power
100-220V 60/60Hz
