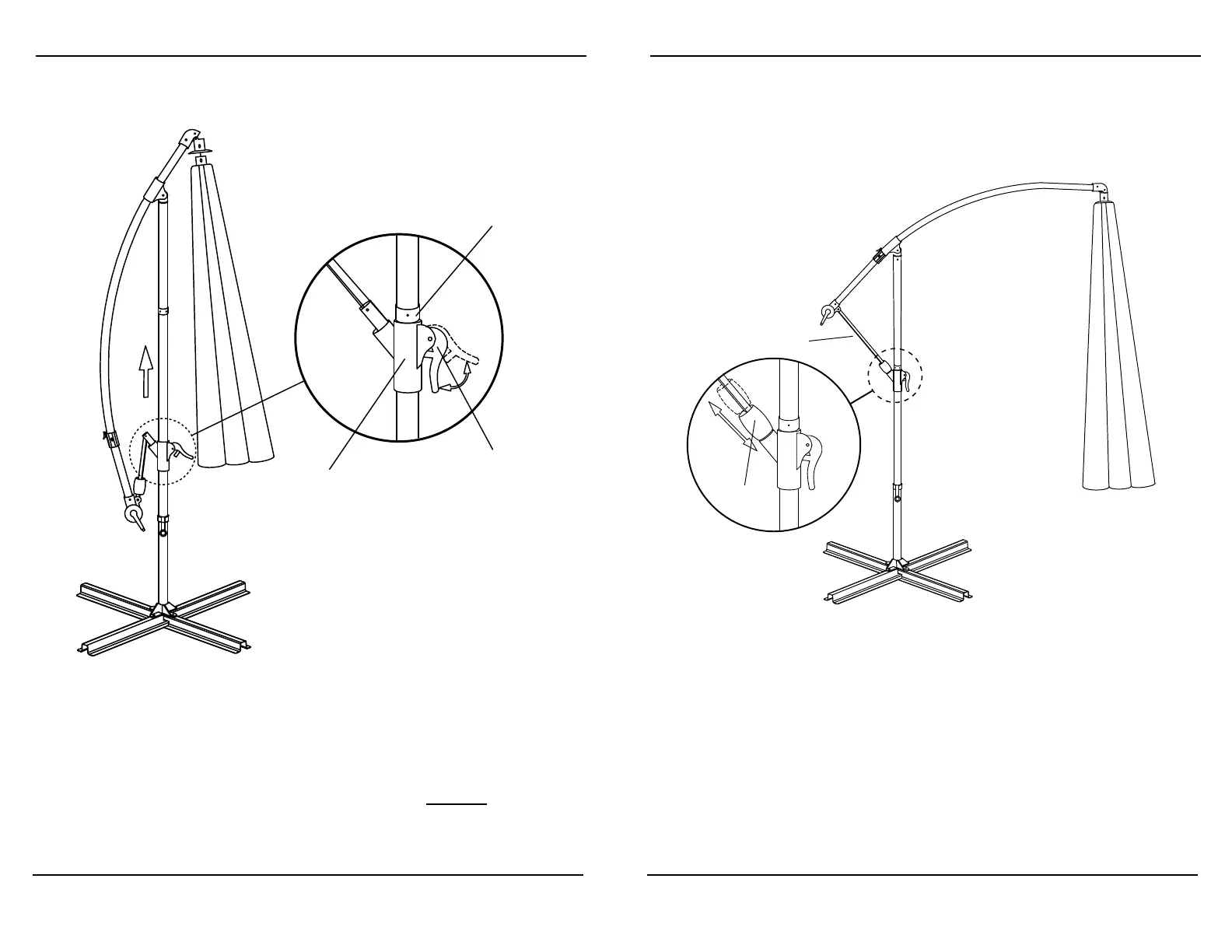

STEP 4:
Release lever on the Umbrella Frame (A) by lifting it up to unlock it;
see Figure 6. Lift the lever sleeve up until you reach the stopper that
prevents it from going further up the pole, do this without extending
the canopy arm outward. Pull down on the lever to lock it place; see
Figure 6.
STEP 5:
Lift the crank base so that the canopy arm extends outward on the
Umbrella Frame (A). Push the bracer against where the lever sleeve
connects the arm that extends to the crank; see Figure 7. Having the
bracer pushed down will lock the extension arm and the canopy arm
in place.
Assembly Instructions
Unlock
Lock
Fig.6
Stopper
Lever
Lever Sleeve
Assembly Instructions
Unlock
Lock
Fig.7
Extension Arm
Bracer
To Next Page
