Object Table
X = sensor 1 (top) or 2 (bottom),
YY = CAN Address
Analogue value for each gas reading will display description of gas type and scale
Type and Instance Object Name Object Property Parameter
AV0 gas reading 1 Present value (R) Gas reading local
sensor A
AV1 gas reading 2 Present value (R) Gas reading local
sensor B
AV2 Ambient temperature Present value (R) Temperature in
celsius
BI 0 Input 1 Present value (R) Auxiliary input
state 0/1
BO 0 Relay 1 Present value
(R/W)
Relay 1 status
on 0/1
BO 1 Relay 2 or alarm 2 Present value
(R/W)
Relay 2 or alarm 2
status 0/1
BO 2 Alarm 3 Present value
(R/W)
Alarm 3 Indicator
status 0/1
AV XYY Gas reading XYY Present value (R) Gas reading
remote sensors
if setting 46=2

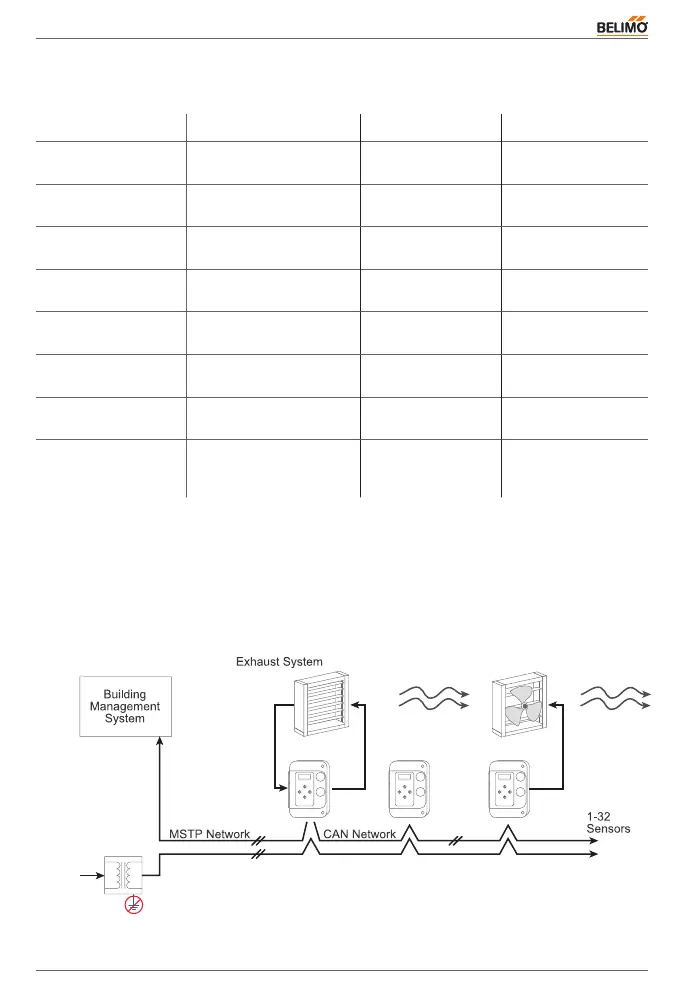

7.0 Network Conguration
Ventilation Controlled directly by Gas Sensors
120 Vac
24 V AC/DC
Transformer for sensors
only. Do not use 24 V AC/
DC from BMS
