ARX24-PC Actuators, Phasecut
Provide overload protection and disconnect as required.
CAUTION Equipment damage!
Actuators may be connected in parallel.
Power consumption and input impedance must be observed.
Actuators may also be powered by 24 VDC.
W ARNIN G L IVE Electrical Components !
During installation, testing, servicing and troubleshooting of this product, it may
be necessary to work with live electrical components. Have a qualified licensed electrician
or other individual who has been properly trained in handling live electrical components
perform these tasks. Failure to follow all electrical safety precautions when exposed to live
electrical components could result in death or serious injury.
3
0 to 20V Phase Cut
Org (5) U Output, 2 to 10V
…PC
2
Control Signal (–)
0 to 20 V Phasecut
(+)
Blk (1) Common –
Red (2) Hot +
3
Pnk (6) Y Input, 0 to 20V phasecut
Line
Volts
24 VAC Transformer
1

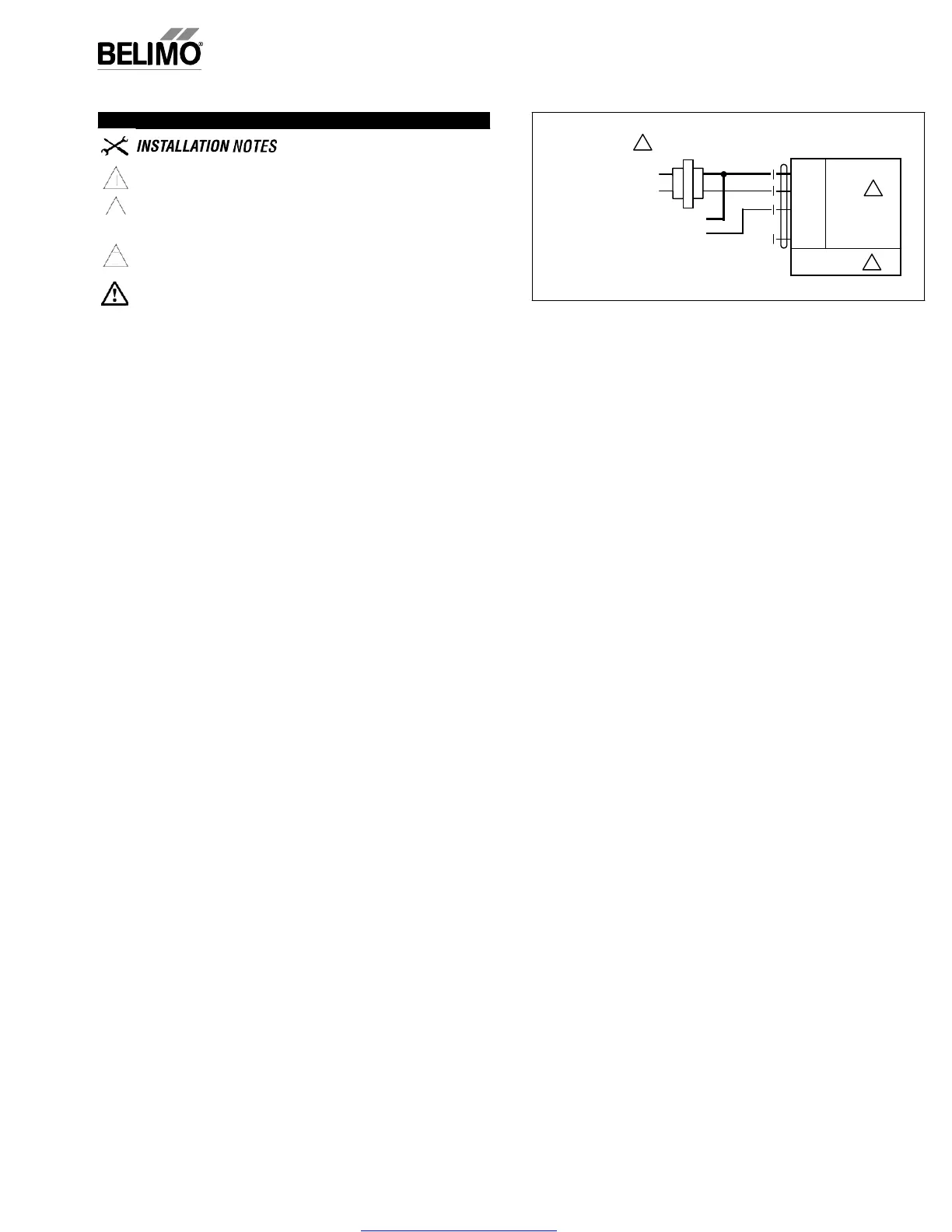

Wiring Diagrams
O50905 - 05/12 - Subject to change. © Belimo Aircontrols (USA), Inc.
W185
