AR...24-SR Actuators, Proportional
CAUTION
Equipment damage!
Actuators may be connected in parallel.
Power consumption and input impedance must be observed.
Actuators may also be powered by 24 VDC.
Only connect common to neg. (–) leg of control circuits.
The ZG-R01 500
resistor converts the 4 to 20 mA control signal to
2 to 10 VDC, up to 2 actuators may be connected in parallel.
W
ARNIN
G
L
IVE
Electrical
Components
!
During installation, testing, servicing and troubleshooting of this product, it may
be necessary to work with live electrical components. Have a qualified licensed electrician
or other individual who has been properly trained in handling live electrical components
perform these tasks. Failure to follow all electrical safety precautions when exposed to live
electrical components could result in death or serious injury.
O50905 - 05/12 - Subject to change. © Belimo Aircontrols (USA), Inc.

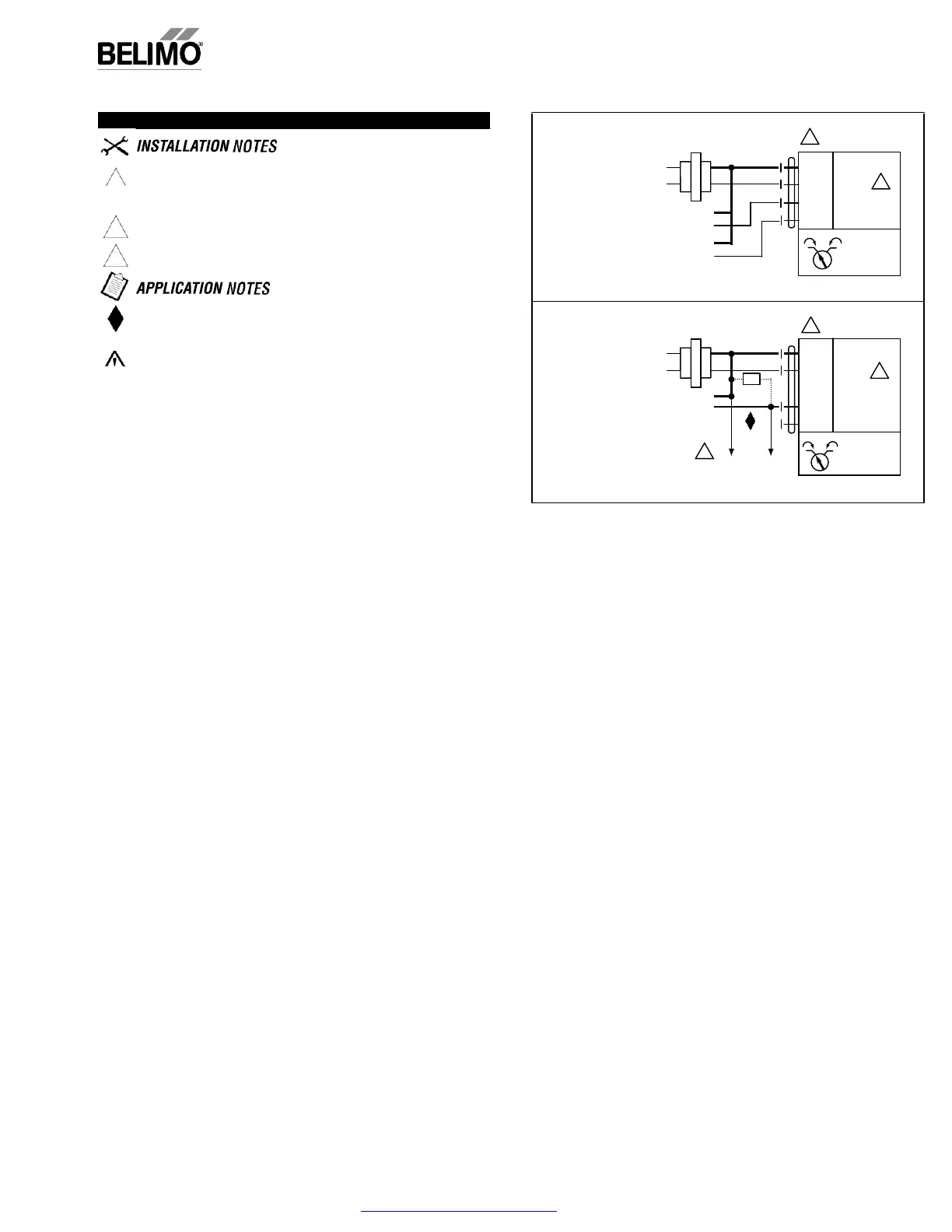

24 VAC Transformer
Line
Volts
Control Signal (–)
2 to 10 VDC
(+)
2 to 10 VDC (–)
Feedback Signal
(+)
2
Blk (1) Common –
Red (2) Hot +
3
Wht (3) Y
Input, 2 to 10V
Org (5) U
Output, 2 to 10V
1 0
ARB24-SR
24 VAC Transformer
Line
Volts
4 to 20 mA
(–)
500
Control Signal
(+)
5
To other
actuators
Wht (3) Y Input,
2
to
10V
Org (5) U Output,
2
to
10V
