Belimo LMB24-SR-T User Manual

266
J20741 - Subject to change. © Belimo Aircontrols (USA), Inc.
2
1
C
A
B
1
1
2
5°
10
D
2
1
65°
2
1
See next page for standard mounting instructions.
A* B C** D
LM 1/4” to 3/4” 5/16” to 3/4” 1.5” 4 to 5 ft-lb
NM 1/2” to 1.05” 2/5” to 1.05” 1.5” 6 to 7 ft-lb
AM 1/2” to 1.05” 2/5” to 1.05” 1.5” 6 to 7 ft-lb
GM 1/2” to 1.05” 2/5” to 1.05” 1.5” 6 to 7 ft-lb
*LM standard clamp has max 5/8” diameter. Accessory clamp
K-LM20 can be mounted for sizes up to 3/4” diameter.
NM, AM and GM clamps have an insert that self-centers on the
following diameter shafts: 1/2” (default), 3/4” and 1.05”.
**Shorter with reversible clamp for NM, AM, and GM
1 2
3
5
4
Installation Instructions

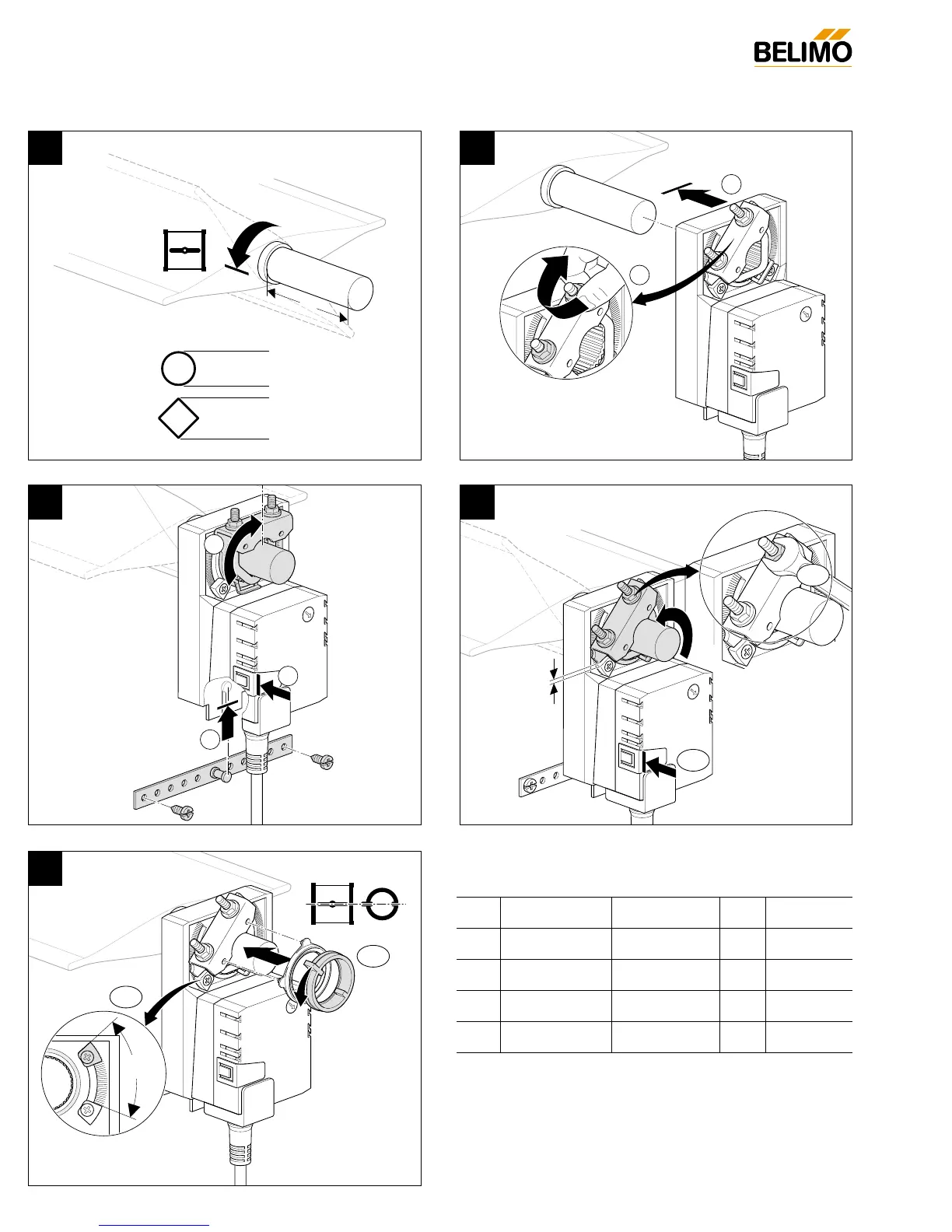

Quick-Mount Visual Instructions for Mechanical Installation
®

Belimo LMB24-SR-T Specifications
